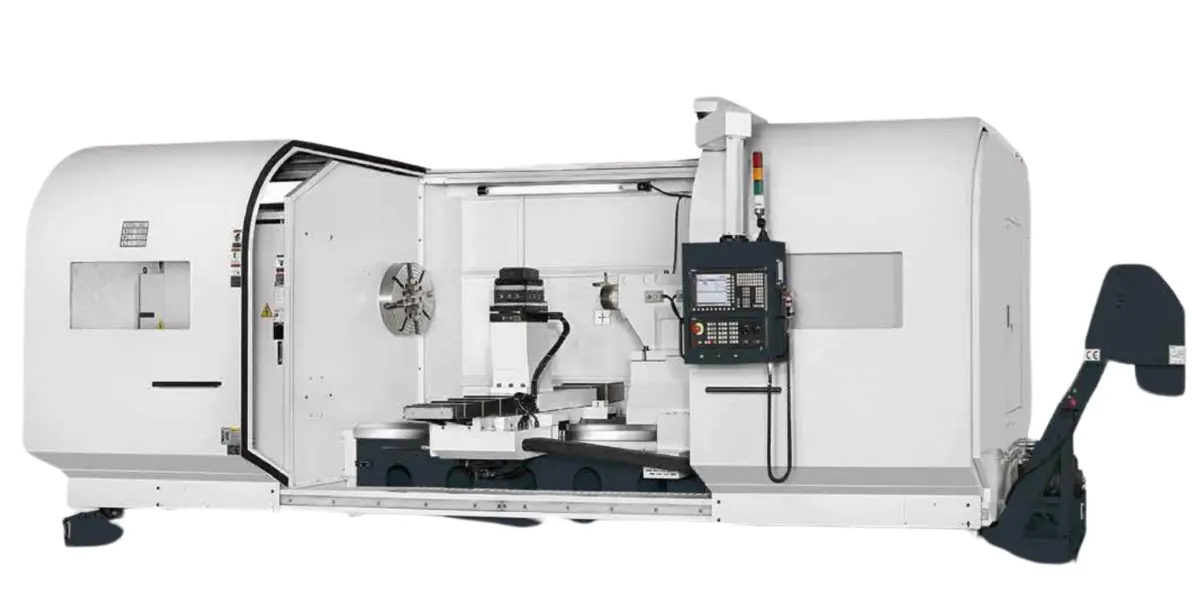

BEMATO BMT 5180AC FLAT-BED CNC TURNING CENTER

Description

The BEMATO BMT 5180AC Flat-Bed CNC Lathe is a heavy-duty, high-capacity CNC turning machine built for long, large-diameter workpieces. Designed for industrial applications such as oil & gas, energy, transportation, and general heavy machining, this model combines powerful performance with precise control. Featuring a large 400 mm (16") spindle bore with A2-28 spindle nose, a swing over bed of 1300 mm, and a generous 2200 mm distance between centers, the BMT 5180AC offers the stability and torque needed for big jobs. Its 3-way bed structure, automatic 3-step gear spindle control, hydraulic tailstock, and chip conveyor make it ideal for long and continuous cutting operations. With advanced features such as a spindle oil cooler, power cabinet air conditioning, and full CE/CSA conformity options, this flat-bed lathe delivers both performance and compliance. The BMT 5180AC is well-suited for precision turning, facing, boring, and threading of heavy and oversized parts—making it a go-to solution for high-volume production in demanding industries.

Key Features:

• Large 400 mm spindle bore (16") with A2-28 nose
• Swing over bed: 1300 mm | Swing over cross slide: 900 mm
• Distance between centers: 2200 mm
• 3-step gear spindle – auto change via CNC control
• Hydraulic tailstock (motor-driven body)
• Chip conveyor (colors: RAL7035, RAL7021, RAL9005)
• Spindle oil cooler, work light, toolbox, and accessories included
• Optional chucks: 32” or 36” pneumatic or 4-jaw independent chuck
• Optional V8 hydraulic turret or manual 4-way toolpost
