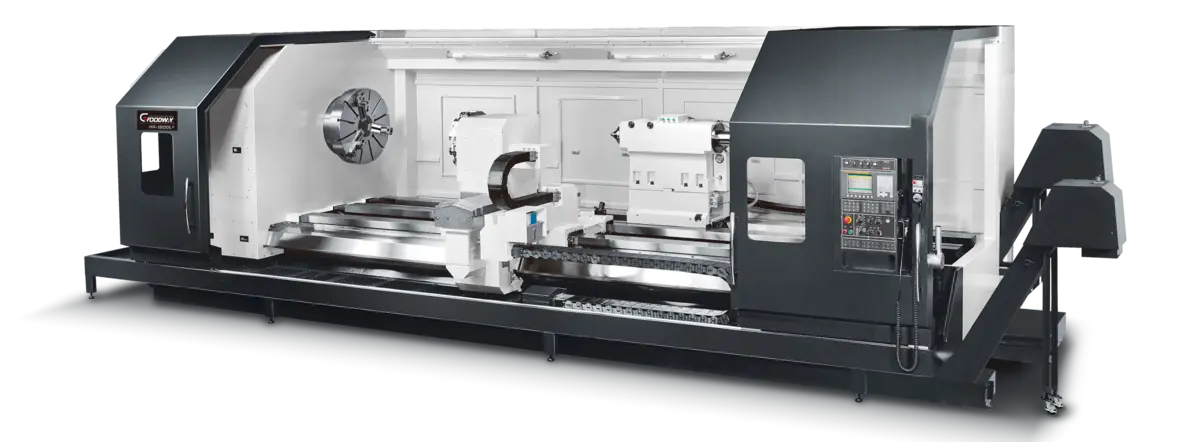

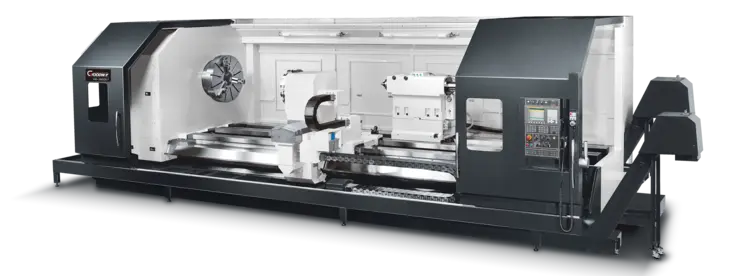

GOODWAY HA-1400L10 FLAT-BED CNC LATHE
ConditionNew
New
Heavy-Duty CNC Turning Center for Large-Diameter and Long-Part Machining
The GOODWAY HA-1400L10 is a powerful CNC lathe designed for manufacturers that require precise, heavy-duty turning of large-diameter and extra-long components. Built with a reinforced structure and engineered for high-torque performance, this lathe features a maximum swing of Ø1400 mm, turning diameter of Ø1100 mm, and an extended turning length of up to 10,000 mm, making it ideal for demanding industrial applications.
Equipped with a Fanuc Oi-TF Plus control and a 3-speed gear-driven main spindle (37/45 kW), the HA-1400L10 delivers the strength and control needed for machining oversized, high-weight workpieces. Its box guideway construction, hinge-type chip conveyor, and robust coolant system ensure smooth, continuous operations—even in the most rugged environments.
This CNC turning center is widely used in industries like energy, aerospace, heavy machinery, transportation, and mining. Typical applications include machining power generation shafts, aerospace landing gear, long hydraulic cylinders, rollers, mold bases, and oilfield equipment parts—any component where size, strength, and accuracy are non-negotiable.
With advanced tooling options, optional steady rests, tailstock configurations, and automated accessories like Renishaw tool setters, the GOODWAY HA-1400L10 can be tailored to meet specific production goals with confidence.
Key Features:
• Ø1400 mm max. swing and Ø1100 mm turning diameter
• Extended turning length up to 10,000 mm
• 3-speed gear-driven spindle (37/45 kW) with CAT50 taper
• Box guideways for all axes ensure high rigidity
• 12-station turret with comprehensive toolholder package
• Equipped with Fanuc Oi-TF Plus CNC control
• Optional accessories: Renishaw tool setter, steady rests, tailstock, and bar capacity upgrades
**SEE ATTACHED CATALOG FOR THE COMPLETE SPECIFICATION
FANUC 0i-TF PLUS WITH 10.4" LCD SCREEN
FANUC ABSOLUTE ENCODER AC SERVO DRIVE MOTORS
BOX GUIDWAYS ON ALL AXIS
24" 3 JAWS CHUCK WITH ONE SET OF SOFT JAW (NON-THROUGH HOLE)
260 MM BAR CAPACITY
HYDRAULIC CYLINDER (NON-THROUGH HOLE)
MAIN SPINDLE ALPHA 40 (37/45KW) MOTOR WITH 3 SPEED GEAR BOX
12 STATION STANDARD TURRET WITH TOOL HOLDER PACKAGE (LS-PCBB)
3 SETS x CLAMPING PIECE (CA-3044/ CA-3045)
2 SETS x OD TOOL HOLDER (LE-4095)
- 1 x FACING TOOL HOLDER (CA-3052)
- 6 x ID TOOL HOLDER (CA-3070)
- 1 x DRILL SOCKET(CA-3041A/B) MT4/ MT5
- 1 x BORING BAR SLEEVE (CA-3042A/B/C) DIA. 32/ 40/ 50
- 1 x BORING BAR SLEEVE (CA-3043A/B) DIA. 20/ 25
- 1 x THROW-AWAY DRILL SOCKET (CA-30A2A/B/C) DIA. 32/40/50
RENISHAW TOOL SETTER HPRA FOR MAIN SPINDLE
2 SETS x STEADY REST SMW-AUTOBLOK SLU-5 (45-310MM)
2 SETS x STEADY REST SMW-AUTOBLOK SLU-5.1 (85-350MM)
TYPE LP1 PROGRAMMABLE TAIL STOCK (QUILL FOR DEAD CENTER MT6) (QUILL DIA. 200 MM, QUILL TRAVEL 250MM)
8 DEAD CENTER FOR TAIL STOCK MT6
CHIP CONVEYOR (HINGE TYPE) WITH AUTO TIMER
COOLANT SYSTEM WITH GRUNDFOS 3/4 HP COOLANT PUMP
ELECTRIC CABINET HEAT EXCHANGER
FOUNDATION AND LEVELING KIT/MAINTENANCE TOOL KIT
OPERATION & MAINTENANCE MANUALS
