Unmatched Precision and Performance for Aerospace, Automotive, and Mold Industries

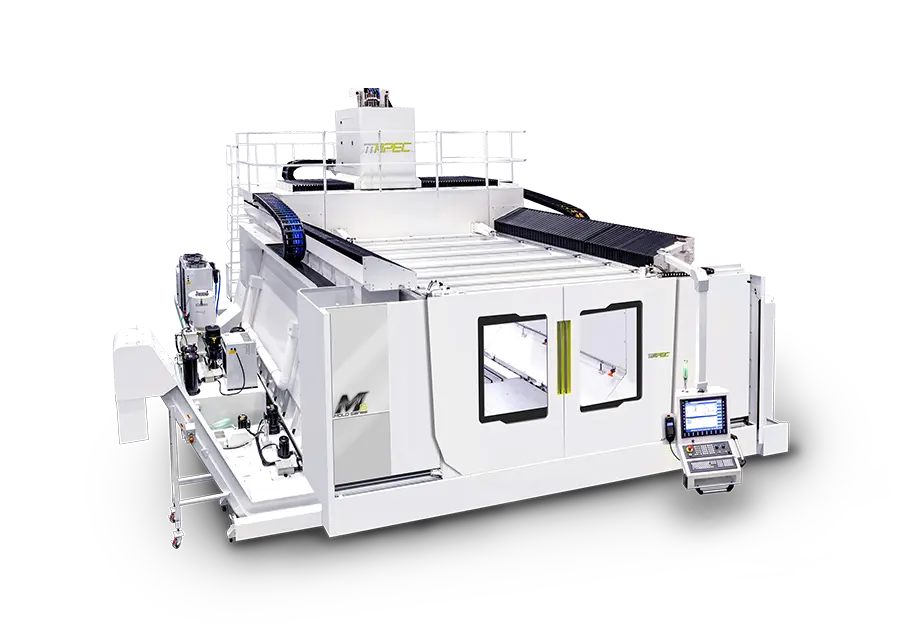

The APEC GM3250 5-Axis High-Speed Gantry Machining Center is designed for manufacturers demanding exceptional precision, power, and efficiency. Built with a rigid gantry structure and patented box-in-box design, it delivers outstanding stability, thermal control, and high-speed performance. Ideal for machining complex, large components, the GM3250 ensures outstanding surface finishes and reliable long-term operation. This machine is engineered for aerospace machining, automotive structural components, mold and die manufacturing, aluminum alloy processing, and complex 5-axis contouring.
Key Features:
• Generous Travels: X-axis 5,000mm / Y-axis 3,200mm / Z-axis 1,200mm
• High-Speed Spindle: 15,000 RPM, HSK100A taper, 45/54 kW power, 119/143 Nm torque
• Precision 2-Axis Milling Head: ±115° (B-axis), ±360° (C-axis) swivel with 4,000 Nm clamping torque
• Linear Motor Drive: High-acceleration X/Y/Z axes with cooling system
• Automatic Tool Changer: 90/120 tools, 350mm max tool length, 16kg max tool weight
• Advanced Control: HEIDENHAIN TNC640 5-Axis CNC with HR520 MPG
• Thermal Stability: Spindle chiller, linear motor cooling, air-conditioned electrical cabinet
• High Accuracy: Optical linear and rotary scales, BLUM probing systems available
• Rigid Gantry Structure: FEM-optimized frame, heavy-duty cast ram in FCD600 material
• Superior Dynamic Performance: 60 m/min rapid feedrate, 0.7G acceleration
• Smart Safety and Maintenance: Oil-air spindle lubrication, waterproof work lamp, coolant management, integrated security interlocks
• Optional Enhancements: Coolant-through spindle, BLUM laser and touch probe systems, roof sliding cover, voltage stabilizer
HEIDENHAIN TNC640 WITH HR520 MPG
AGA MONO TYPE 2-AXIS MILLING HEAD
EXTENDED Z-AXIS TRAVEL TO 1,200 MM
15,000 RPM BUILT-IN SPINDLE, HSK100A
90 TOOLS ATC MAGAZINE
X/Y-AXIS WITH LINEAR MOTOR DRIVE
X/Y/Z-AXIS WITH HIGH RIGIDITY ROLLER TYPE LINEAR GUIDE-WAY
70 BAR COOLANT THROUGH SPINDLE SYSTEM AND AIR THROUGH THE SPINDLE
AUTOMATIC KINEMATICS MEASUREMENT & CALIBRATION SYSTEM WITH CERAMIC BALL SET
BLUM WORKPIECE TOUCH PROBE
BLUM TOOL MEASURING SYSTEM
AUTO ROOF
OIL SKIMMER
COOLER FOR LINEAR MOTORS
GERMANY BRAKING SYSTEM FOR LINEAR MOTOR
5 AXES WITH HEIDENHAIN OPTICAL LINEAR/ CIRCULAR SCALE
AIR-CONDITIONER FOR ELECTRICAL CABINET
Counter balance system
Water-proof working lamp
SPINDLE CHILLER
OIL-AIR LUBRICATION DEVICE FOR SPINDLE
COOLANT AROUND SPINDLE
OIL MIST AROUND SPINDLE
STANDARD CHIP CONVEYOR SYSTEM
STANDARD WATER TANK
SECURITY DOOR INTERLOCKS
SPINDLE THERMAL COMPENSATION
AIR DRYER
