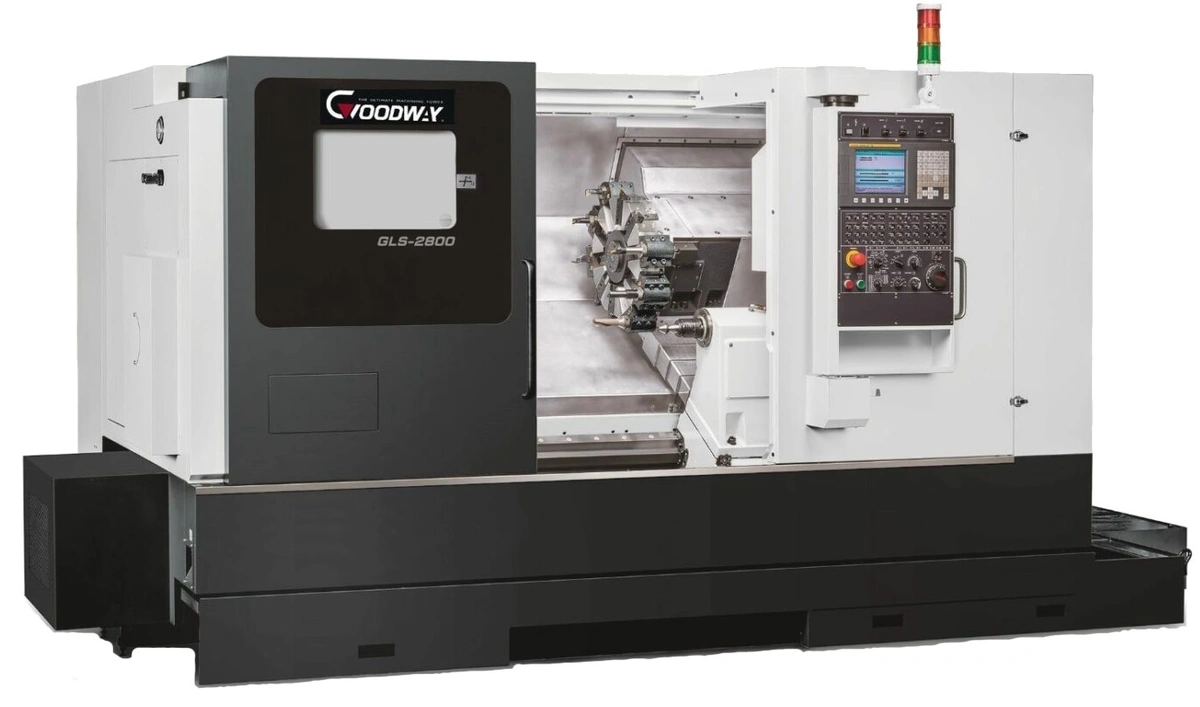

GOODWAY GLS-2800Y TURNING CENTER | USED MACHINE
ConditionNew
New
With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GLS series high-speed CNC turning center. Using 2 types of beds combined with super rigidity, high-speed turning capability, and compact size provides you with super-efficiency cutting power. The GLS series equipped with an optional live tooling turret, Y-axis, and sub-spindle can work on turning, milling, and drilling tasks at the same time to increase the output capacity with high-end value to meet your needs of today and tomorrow.
Key Features:
• 30˚ slant-bed design provides smooth chip disposal and easier operator access.
• Steel way covers and special steel wipers molded with industrial-strength rubber are used for durability.
• Fully enclosed splash guards keep chips and coolant contained for a safe clean working environment.
The auto lubrication system delivers metered amounts of lubrication to the slideways, ball screws, and vital components. Distribution is automatically shut off during idling to prevent waste.
For more specification, please refer to the catalog.
FANUC 0i-TF PLUS WITH 10.4 LCD SCREEN
FANUC MANUAL GUIDE-i
FANUC P TYPE SPINDLE MOTOR 11/15KW
HIGH PRECISION LINEAR WAYS
FANUC ABSOLUTE ENCODER AC SERVO DRIVE MOTORS
10" 3 JAWS BIG BORE (78MM BAR CAPACITY) WITH 1 HARD AND SOFT JAWS EACH
BAR CAPACITY 75MM
Y-AXIS
12 STATION LIVE TOOLING TURRET, DRIVEN TOOL MOTOR 3.7/5.5KW ID SHANK 40MM, OD SHANK 25MM, LIVE TOOL COLLET ER-32(1-20MM), MAX. SPEED 6000 RPM
2 x 0° DRIVEN TOOL HOLDER ER-32/EC QUICKFLEX
2 x 90° DRIVEN TOOL HOLDER ER-32/EC QUICKFLEX
CF-AXIS WITH DISK BRAKE ON MAIN SPINDLE (33 RPM, torque 240 Nm)
CHIP CONVEYOR (HINGE TYPE) WITH AUTO TIMER UPGRADED CHIP CONVEYOR HEIGHT TO 1200MM
PARTS CATCHER (max. dia. 60 x L 180mm, max. weight 4 kgs)
BAR FEEDER INTERFACE
UPGRADED 7 BARS COOLANT PUMP
OIL SKIMMER
HYDRAULIC TYPE LP-1 PROGRAMMABLE TAIL STOCK (QUILL/BODY ARE PROGRAMMABLE) (LIVE CENTER MT4) QUILL DIA. 70MM, QUILL TRAVEL 150MM, TAIL STOCK BODY TRAVEL 600MM
LIVE CENTER FOR TAIL STOCK MT4
CHIP CART
AUTO RENISHAW TOOL SETTER HPMA FOR MAIN SPINDLE
C3 CLASS BALL SCREWS WITH PRETENSION ON ALL AXES
HYDRAULIC SYSTEM
FULLY ENCLOSED SPLASH COVERS
ADVANCE AUTO LUBRICATION SYSTEM
TRI-COLOR SIGNAL TOWER(YELLOW/RED/GREEN)
HIGH-INTESITY WORK LIGHT
M CODE AUTOMATIC POWER OFF
FOOT SWITCH FOR CHUCK
RS-232 INTERFACE
ELECTRIC CABINET HEAT EXCHANGER
FOUNDATION AND LEVELLING KIT/MAINTENANCE TOOL KIT
OPERATION & MAINTENANCE MANUALS
