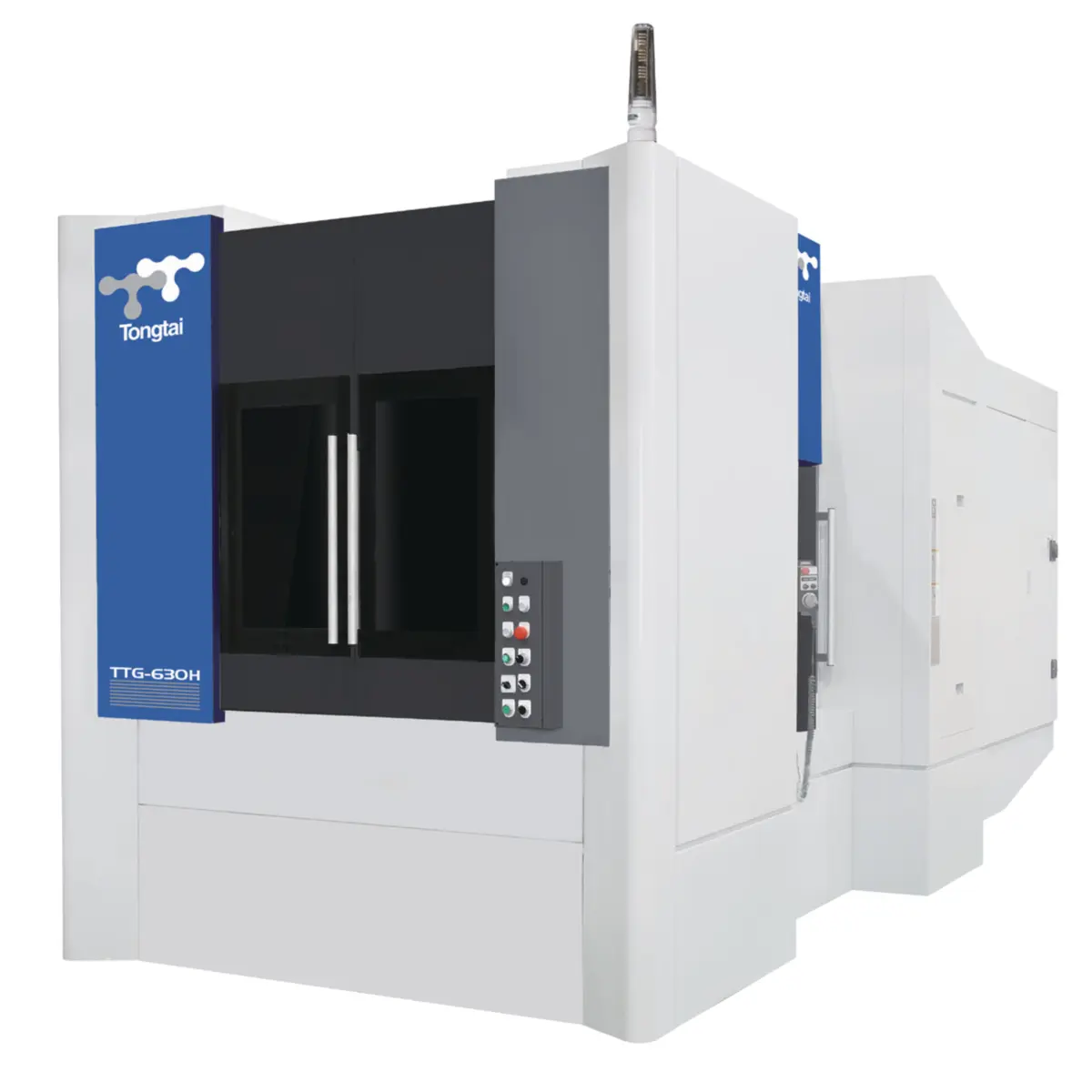

TONGTAI TTG-630H Horizontal 4-axis Machining Center

Description

The TONGTAI TTG-630H Horizontal Machining Center is a robust 4-axis solution engineered for heavy-duty, high-precision applications across industries such as aerospace, automotive, mold and die, and general machining. Designed with a traveling column and box-type structural frame, this machine offers exceptional rigidity for stable machining under high loads. It features a 630 mm x 630 mm rotary pallet system with a maximum load capacity of 1,200 kg per table, making it ideal for large workpieces such as engine blocks, structural aerospace components, hydraulic housings, and mold bases.

The machine is equipped with a 60-tool automatic tool changer (expandable to 90 or 120), dual-pallet changer for reduced idle time, and FANUC 0i-MF Plus CNC control with support for advanced tool path strategies and integration with automation systems. Optional features such as through-spindle coolant and chip conveyor systems further enhance its performance for long-cycle, high-volume production environments. Whether you're machining aerospace brackets, transmission housings, mold plates, or industrial fixtures, the TTG-630H delivers the power, precision, and flexibility required for complex and high-value machining tasks.

Key Features:

• X / Y / Z travel range over 1,000 mm for larger parts
• Built-in or gear-driven spindle options, up to 18,000 RPM
• 4-axis capability with 0.001° B-axis indexing
• Dual-pallet changer for continuous machining
• Expandable tool magazine (60, 90, or 120 tools)
• FANUC 0i-MF CNC control system
• Through-spindle coolant and effective chip evacuation system
