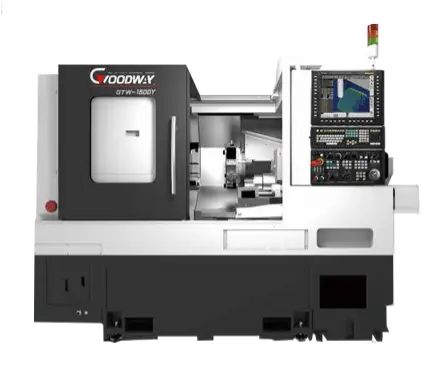

GOODWAY GTW-1500 Multi-Axis CNC Turning Center

Description

The GOODWAY GTW-1500 Series is a high-performance multi-axis CNC turning center, engineered to handle complex, front-and-back machining operations with superior accuracy and efficiency. Built with a slant-bed Meehanite casting structure and cutting-edge components, this machine is ideal for precision applications in the automotive, medical, and aerospace industries. Combining a live tooling turret, gang tooling system, twin Y-axis functionality, and synchronous main and sub-spindles, the GTW-1500 series takes productivity to the next level. With a travelling column design and ultra-rigid structure enhanced through FEA analysis, it ensures long-term stability and outstanding cutting performance—even under demanding workloads.

Whether you're bar feeding, performing secondary operations, or synchronizing machining tasks, the GTW-1500’s integrated system handles it all—making it the ultimate solution for multitasking CNC turning requirements in Ontario, Quebec, and across North America.

Key Features:

• Multi-Axis Capability with turret and gang tooling for complete front and rear machining
• Twin Y-Axis Design (±35 mm and 250 mm) for high-precision complex machining
• Travelling Column Structure for enhanced stability and machining accuracy
• Main Spindle up to 5,000 RPM, 18.5 kW (25% rating) with 86 Nm torque
• Sub-Spindle up to 6,000 RPM, 5.5 kW (25% rating) with 22 Nm torque
• 12-Station Live Tooling Turret with fast 0.2s indexing for adjacent stations
• 8-Station Gang Tooling System with 6,000 RPM live tooling and rapid change design
• Ultra-Rigid Meehanite Cast Base with integrated cooling and chip management
• Advanced FANUC 32i Control System with graphical process manager and intelligent monitoring
• Precision Linear Guideways on X, Y1, and Z1 axes for maximum speed and durability
• High Accuracy: ±0.003 mm repeatability and 0.01 mm positioning accuracy
• Compact Footprint: Only 2,545 x 2,065 x 2,015 mm with a machine weight of 4,000 kg

Serving Canadian manufacturers in Ontario, Quebec, Windsor, and Montreal, MEGATEL CNC is proud to supply the GOODWAY GTW-1500 Series—delivering powerful, space-saving, and smart machining solutions designed to scale your productivity and precision.

Learn more or request a quote at www.megatelcnc.com
📞 Financing options available | On-site warranty support included
