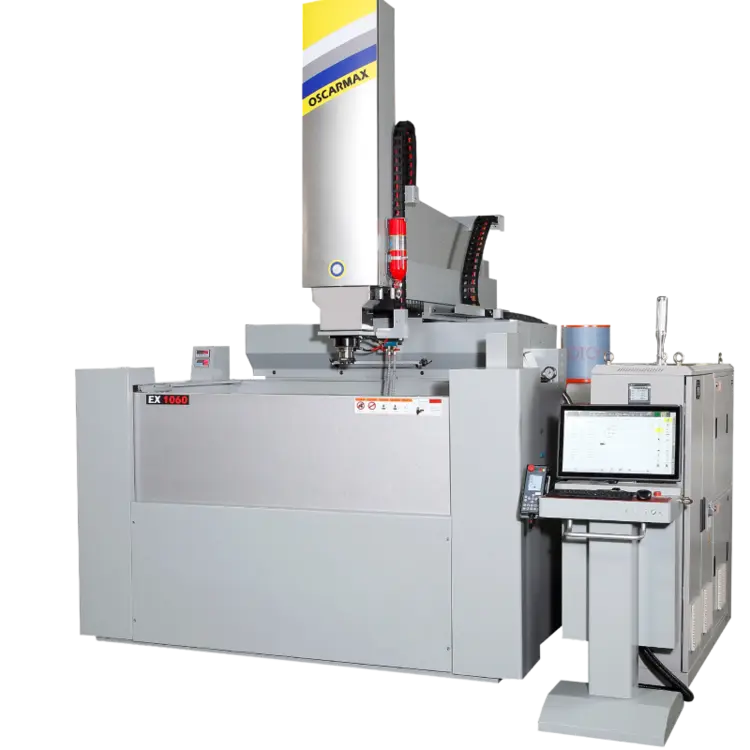

OSCARMAX EX1060 Die Sinker Electrical Discharge Machine
ConditionNew
New
The Oscarmax EX1060 Die Sinker Electrical Discharge Machine (EDM) is designed for high-precision machining, offering advanced features to enhance accuracy, efficiency, and performance. Engineered for tool & die, mold-making, and aerospace industries, it provides exceptional surface finishes while handling complex geometries with ease. The large worktable capacity (1250 x 750 mm) and high-load capability (4500 kg) make it ideal for machining heavy and intricate workpieces. Equipped with a Windows 10-based control system, a 21.5" multi-touch interface, and 6-axis control capability, the EX1060 ensures seamless operation for modern manufacturing needs.
Key Features:
• Large Work Area – Supports workpieces up to 1670 x 990 mm with a 4500 kg weight capacity
• Precision Control – 120A max working current for high-efficiency cutting with minimal wear
• Advanced CNC System – Windows 10-based interface with a 21.5" touchscreen for user-friendly operation
• Eco-Friendly Mode – Power-saving ECO stand-by feature with motion sensors
• 6-Axis Capability – Supports XYZCUV control with optional rotary table for complex machining
• High-Capacity Dielectric System – 1610L dielectric tank with 20µm filtration for clean, stable performance
• Remote Controller – Includes a color touchscreen remote for improved accessibility
The Oscarmax EX1060 Die Sinker EDM is the perfect solution for manufacturers in Ontario, Quebec, Montreal, and Windsor looking for precision, efficiency, and reliability in their EDM machining processes.
📞 Contact MEGATEL CNC today to learn more about high-performance EDM solutions for your manufacturing needs!
STANDARD ACCESSORIES:
AUTO FIRE EXTINGUSHER
PLATEN
PATENTED ELECTRODE HOLDER
TOOL BOX (TOOL KIT FOR ASSEMBLE)
PAPER FILTER
3-AXIS ROLLER P CLASS LINEAR GUIDE
3-AXIS: 1Μ LINEAR SCALE FROM EUROPE
3-AXIS: C5 CLASS DOUBLE-NUT BALLSCREW
FLUSHING NOZZLE
DRILL CHUCK
HALOGAN WORK LAMP
MPG HANDWHEEL
FUNCTION DESCRIPTION:
1. 64BITS INDUSTRIAL WIN10 PC FOR MXIMUM STABILITY AND 22” MULTI-TOUCH SCREEN.
2. CONTOURING MACHINING (GM CODE).
3. 3 AXES 6 DIRECTION MACHINING,MULTI CAVITIES MACHINING, CIRCLE ORBITING, SQUARE ORBITING, INTERNAL/EXTERNAL
SPHERICAL MACHINING, 45 DEGRESS CORNER MACHINING, ANY ANGLE ORBITING, XY ,XZ ,X.Y.Z PLANE MACHINING.
4. PRE-TENSION C5 CLASS HIGH ACCURACY Ø32 DOUBLE NUTS BALLSCREWS, 3 SUPPORTS & TAPER TYPE HIGH PRECISION
BEARINGS TO ENSURE FREE BACKLSASH & SMOOTH MOVEMENT.
5. DIGITAL DUAL VOLTAGE (HIGH/LOW VOLTAGE) CURRENTS BEING SYNCHRONOUSLY DISCHARGED TO ENSURE FASTER METAL
REMOVAL RATE ,LOW ELECTRODE WEAR AND UNIFORN SURFACE FINISH.
6. DIAGRAM EDIT AND GRAPHIC ASSIST (E CODE) FOR EASY PROGRAMMING.
7. AT LEAST 10000 SETS OF WORK FILES CAN BE EDITED AND NEW FUZZY(P CODE) EDITION FUNCTION AUTOMATICALLY
CONSULT WITH CONSUMPTION AND SPARK GAP.
8.MOMERIZED WITH 1000 SETS OF TEACH-IN PARAMETERS( S CODE).
9. INTELLIGENT ARCING AUTO ADJUSTMENT FUNCTION:INTELLIGENT ARCING SENSOR & ADJUST PARAMETERS TO ENSURE
BEST PERFORMANCE.
10. DIALOGUE OPERATION FOR EASY UNDERSTANDING.
11. 3D ANY DIRECTION MACHINING FUNCTION EX: 3 AXES LINEAR MACHINING, 2 AXES ARC MACHINING, HELIX ETC.
12. V8A_OSC V2.8-FPGA PROCESSOR CONTROL THE SPARK ARC DETECCTOR INCREASE THE CUTTING EFFICENCY.
13. COPPER / GRAPHITE SPARK CIRCUIT CIRCUIT.
14. AUTOMATIC LUBRICATION SYSTEM WITH PRESSURE DETECT MAKE SURE MACHINE GOOD STATUS.
15. MAINTENANCE HISTORY AND CENTRAL CONTROL SYSTEM CAN LIKE WITH OTHER 4 MACHINES TO CHECK OTHER'S STATUS.
