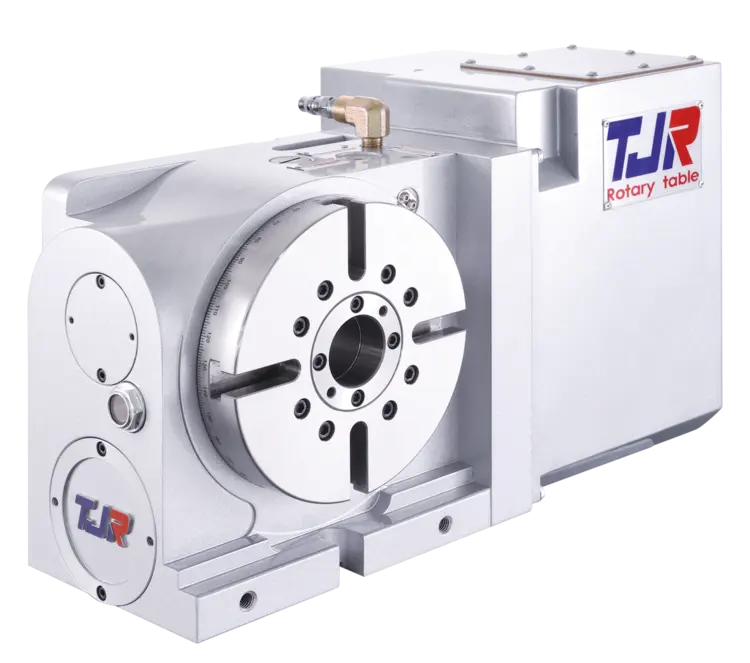

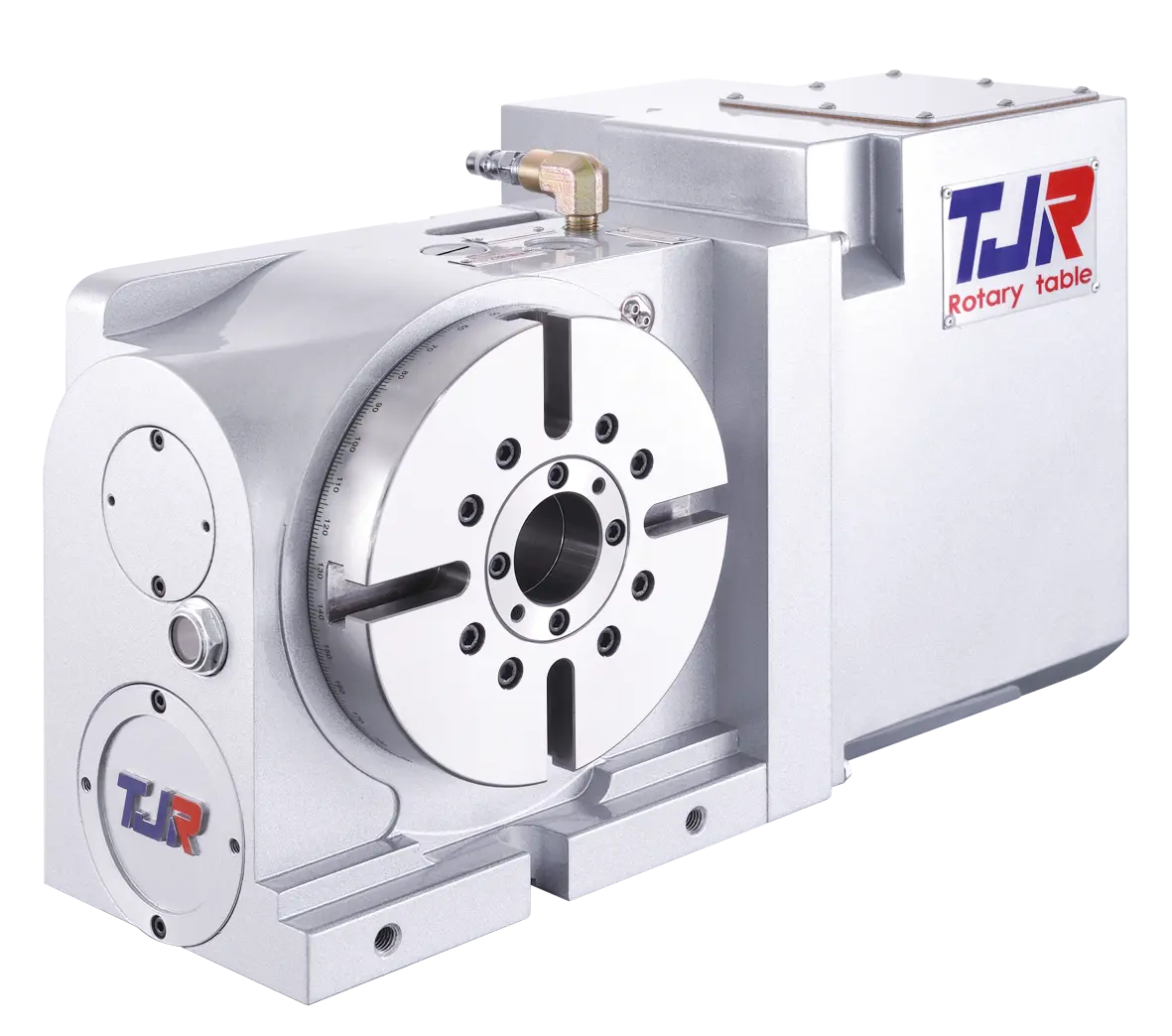

TJR AR-250R-J Worm Gear Rotary Table

Description

The TJR AR-250R-J CNC Rotary Table is a high-precision 4th-axis solution designed to enhance CNC machining capabilities with superior accuracy, stability, and flexibility. With a 250mm (9.84 inches) faceplate diameter, this rotary table supports both vertical and horizontal applications, making it ideal for a wide range of machining tasks. Engineered for high precision and repeatability, it offers an indexing accuracy of 20 arc-seconds and repeatability of 4 arc-seconds, ensuring flawless positioning for complex machining operations. The 0.001° CNC rotary table provides exceptional rotational accuracy, making it perfect for applications requiring fine incremental movements.

Built with radial and axial bearings, the AR-250R-J ensures long-term durability and load-bearing stability, even under heavy-duty machining conditions. Its powerful pneumatic brake system, located on the right side motor, delivers a clamping torque of 31 kg-m, preventing movement during cutting processes and maintaining absolute stability. Compatible with FANUC α4i/α8i/β8is and MITSUBISHI HF-54/HF-104 servo motors, this rotary table easily integrates into various CNC machine configurations.

The TJR AR-250R-J CNC Rotary Table is compact and space-efficient, with dimensions of H: 291mm x L: 461mm x W: 253mm and a weight of 58 kg, making it ideal for CNC setups where space is limited. Its versatile mounting options support both vertical and horizontal positions, offering manufacturers the flexibility to optimize machining efficiency.

Key Features:
• 0.001° CNC Rotary Table – Ensures high-precision machining with fine incremental control
• Powerful Pneumatic Brake (Right Side Motor) – Provides 31 kg-m clamping torque for superior stability
• For Both Vertical and Horizontal Applications – Enhances machining versatility
• Radial and Axial Bearings – Guarantees long-term durability and load-bearing strength

The TJR AR-250R-J CNC Rotary Table is the perfect addition to CNC machining centers, delivering high precision, efficiency, and reliability for complex machining applications. Upgrade your CNC system today and experience superior 4th-axis control.
