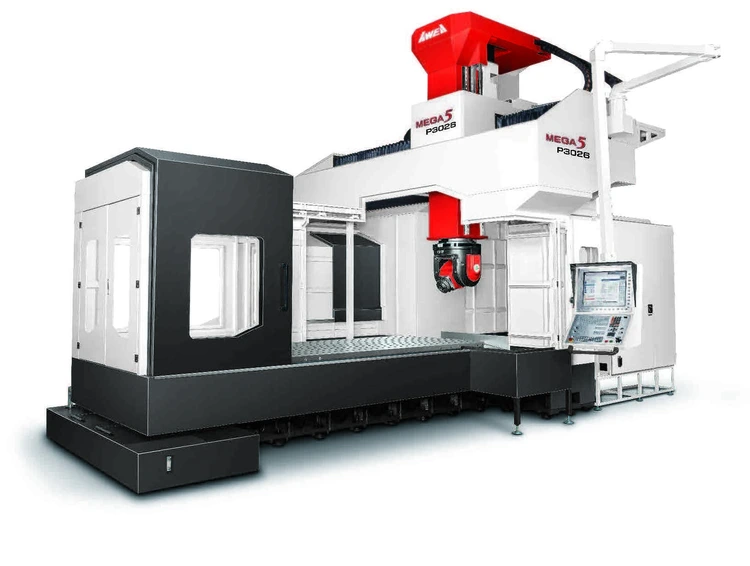

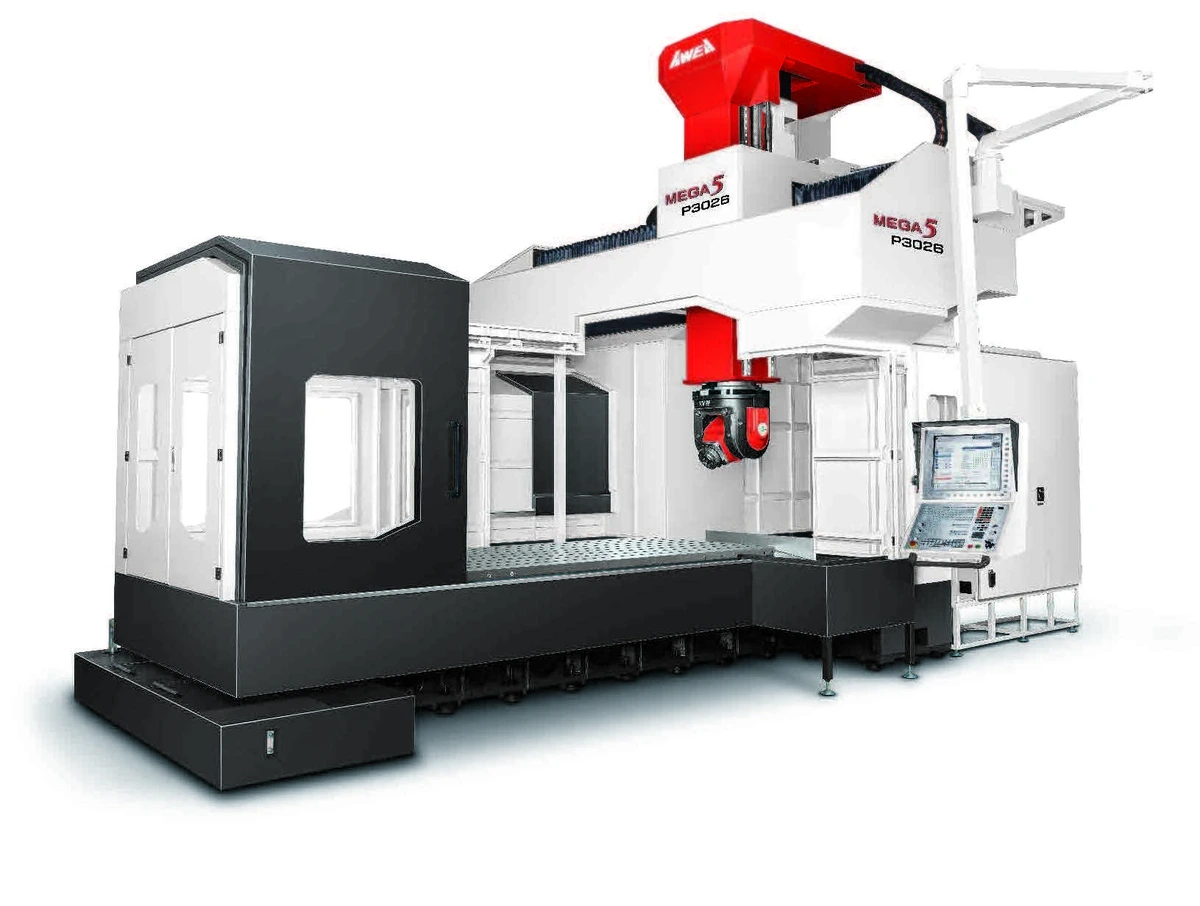

AWEA MEGA5-P3032 BRIDGE TYPE 5-AXIS MACHINING CENTER
ConditionNew
New
The AWEA MEGA5 P Series is engineered for advanced precision machining, featuring a fixed column design and super-rigid bridge-type structure for maximum stability and accuracy. Equipped with an Italian-made high-torque, two-axis milling head, it offers simultaneous 5-axis (X, Y, Z, B, C) machining, making it ideal for complex, large workpieces. This machine ensures efficiency and exceptional performance in heavy-duty tasks, with reduced vibrations thanks to its built-in spindle motor design.
Key Features:
• Super-Rigid Bridge-Type Structure: Ensures unmatched stability and accuracy for high-precision machining.
• Fixed Column Design: Provides superior rigidity for handling large, intricate workpieces.
• Italian-Made Two-Axis Milling Head: Available in TCH-20F (compact) and TCH-30F (high torque) models to cater to diverse cutting requirements.
• Simultaneous 5-Axis Machining: Advanced multi-axis (X, Y, Z, B, C) capabilities for complex, compound angular machining.
• Built-In Spindle Motor: Reduces centrifugal force effects and minimizes vibrations, enhancing spindle longevity and accuracy.
• Versatile & Efficient: Perfect for industries requiring precise and advanced machining capabilities.
HEIDENHAIN TNC7 WITH 24" LCD SCREEN, FULL 5 AXIS FUNCTION
AIR CONDITIONER FOR ELECTRIC CABINET
TECHNAI TCH-30F, HSK-A100, 12,000 RPM, 40 KW
35 BAR COOLANT THROUGH SPINDLE, ALLCOOL MB500, MANUAL PRESSURE ADJ., SINGLE FILTER (WITHOUT SUB TANK)(PIPELINE 1000PSI CAPABLE)
BLUM TC62 + STEEL BALL KIT
SPINDLE COOLING SYSTEM
COOLANT SYSTEM WITH PUMP AND TANK
CATERPILLAR TYPE CHIP CONVEYOR
TWIN COIL TYPE CHIP AUGERS
CENTRALIZED AUTOMATIC LUBRICATING SYSTEM
LUBRICANT RECYCLING COLLECTOR
X/Y/Z AXES LINEAR SCALES
HANGING TYPE CONTROL PANEL
ELECTRIC CABINET WITH AIR CONDITIONER
FOOT SWITCH FOR TOOL RELEASE
WATER GUN
ADD TWO FLUORESCENT LIGHTS
LINEAR SCALE AIR PURGE
OIL LUBRICANT SEPARATOR
DOOR INTERLOCK
ROOF ENCLOSED SPLASH GUARD
The AWEA MEGA5 P Series is engineered for advanced precision machining, featuring a fixed column design and super-rigid bridge-type structure for maximum stability and accuracy. Equipped with an Italian-made high-torque, two-axis milling head, it offers simultaneous 5-axis (X, Y, Z, B, C) machining, making it ideal for complex, large workpieces. This machine ensures efficiency and exceptional performance in heavy-duty tasks, with reduced vibrations thanks to its built-in spindle motor design.
Key Features:
• Super-Rigid Bridge-Type Structure: Ensures unmatched stability and accuracy for high-precision machining.
• Fixed Column Design: Provides superior rigidity for handling large, intricate workpieces.
• Italian-Made Two-Axis Milling Head: Available in TCH-20F (compact) and TCH-30F (high torque) models to cater to diverse cutting requirements.
• Simultaneous 5-Axis Machining: Advanced multi-axis (X, Y, Z, B, C) capabilities for complex, compound angular machining.
• Built-In Spindle Motor: Reduces centrifugal force effects and minimizes vibrations, enhancing spindle longevity and accuracy.
• Versatile & Efficient: Perfect for industries requiring precise and advanced machining capabilities.
Metric
| X-Axis Travel | 118.11" |
| Y-Axis Travel | 125.98" |
| Z-Axis Travel | 47.244" |
| Distance Between Column | 106.3" |
| Spindle Nose to Table Top | 47.244" |
| Table Size-X | 118.9" |
| Table Size-Y | 94.488" |
| Table Load Capacity | 26,455.4 lb |
| Standard Spindle Taper | HSKA100 |
| Standard Spindle Speed | 12,000 RPM |
| Milling Head (2-axis) Type | TCH-30F |
| ATC | 60 |
| Max Tool Length | 13.78" |
| Max Tool Weight | 33.1 lb |
| CN Control | Heidenhain TNC7 |
HEIDENHAIN TNC7 WITH 24" LCD SCREEN, FULL 5 AXIS FUNCTION
AIR CONDITIONER FOR ELECTRIC CABINET
TECHNAI TCH-30F, HSK-A100, 12,000 RPM, 40 KW
35 BAR COOLANT THROUGH SPINDLE, ALLCOOL MB500, MANUAL PRESSURE ADJ., SINGLE FILTER (WITHOUT SUB TANK)(PIPELINE 1000PSI CAPABLE)
BLUM TC62 + STEEL BALL KIT
SPINDLE COOLING SYSTEM
COOLANT SYSTEM WITH PUMP AND TANK
CATERPILLAR TYPE CHIP CONVEYOR
TWIN COIL TYPE CHIP AUGERS
CENTRALIZED AUTOMATIC LUBRICATING SYSTEM
LUBRICANT RECYCLING COLLECTOR
X/Y/Z AXES LINEAR SCALES
HANGING TYPE CONTROL PANEL
ELECTRIC CABINET WITH AIR CONDITIONER
FOOT SWITCH FOR TOOL RELEASE
WATER GUN
ADD TWO FLUORESCENT LIGHTS
LINEAR SCALE AIR PURGE
OIL LUBRICANT SEPARATOR
DOOR INTERLOCK
ROOF ENCLOSED SPLASH GUARD
