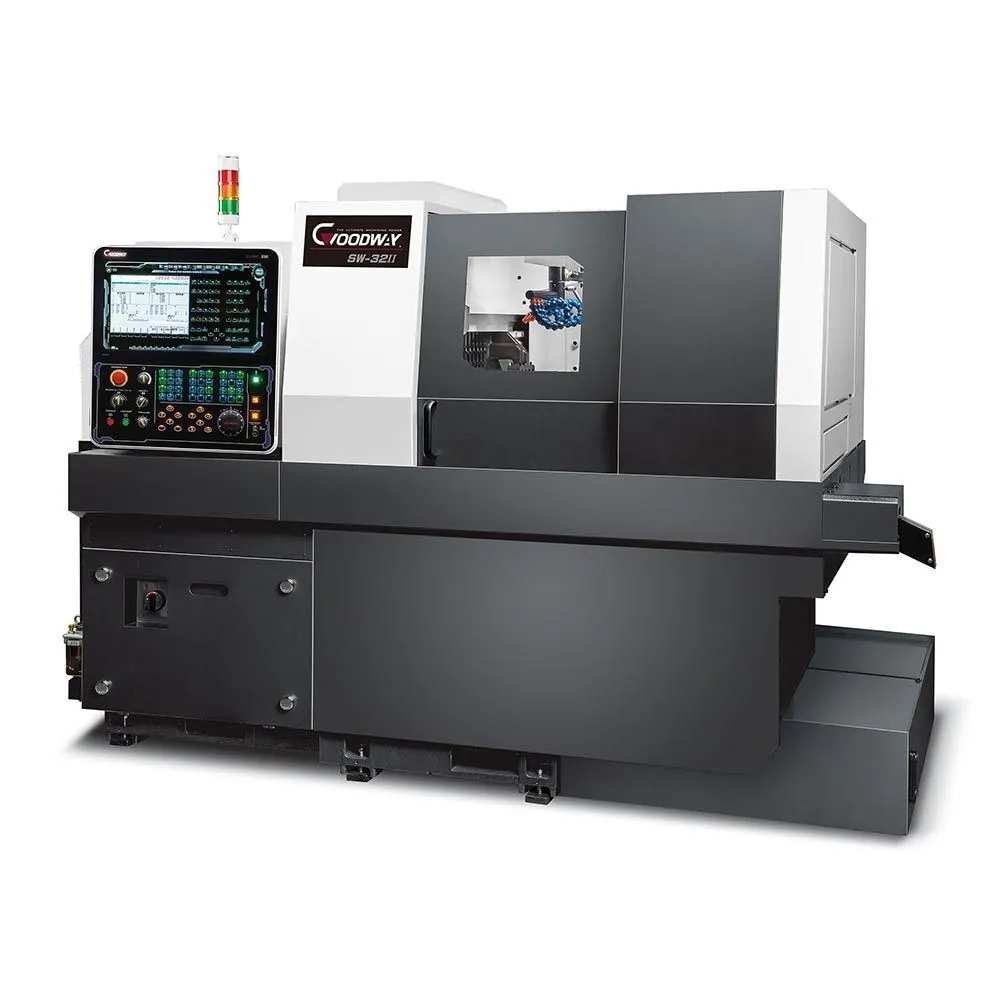

GOODWAY SW-32IIY2 SWISS TURNING CENTER
ConditionNew
New
The GOODWAY SW-32II Swiss Turning Center is designed for high-precision machining with advanced 6-axis control (X / Y / Z / XB / ZB / Y2), delivering unmatched efficiency and accuracy. With a maximum turning diameter of 32mm and speeds up to 8,000 RPM, this CNC Swiss lathe is built for complex part production in industries such as automotive, electronics, medical, and watchmaking. Equipped with dual spindles, a flexible hybrid guide bush system (bush/bushless mode selection), and a complete tooling system, the SW-32II provides superior turning, milling, drilling, and tapping capabilities for micro and intricate components.
Key Features & Benefits:
• Advanced Y2-Axis Machining – Enables eccentric drilling, radial tapping, and optimized backworking with 8 live tools for reduced cycle time.
• Hybrid Guide Bush Design – Switch between bush or bushless mode to accommodate different machining needs.
• High-Rigidity Machine Base – Meehanite casting construction ensures 30% increased structural rigidity, reducing vibration and enhancing machining stability.
Built for Precision & Productivity
The GOODWAY SW-32II is engineered for high-speed, high-accuracy production, ensuring exceptional rigidity and reduced thermal deformation. Designed to handle complex part geometries, this Swiss lathe provides shorter cycle times, making it a cost-effective solution for modern manufacturing.
FANUC 31-i CONTROL WITH 10.4" LCD SCREEN
MAX. TURNING LENGTH PER CHUCK 315 MM (BUSH) / 85 MM (BUSHLESS)
3 MAIN SPINDLE WITH C-AXIS (BUILT-IN MOTOR)
4 HYBRID GUIDE BUSH UNIT WITH BUSHLESS KIT
5 SUB-SPINDLE WITH C-AXIS (BUILT-IN MOTOR)
6 PARTS CATCHER WITH PARTS CONVEYOR
7 PARTS EJECTOR
TOOL HOLDER PACKAGE (MAIN SPINDLE) WITHOUT B AXIS LL-CD01
- 6 STATION OD TOOL POST, SHANK SIZE 16MM
- 4 STATION ID TOOL HOLDER ER20
- CLAMPING PIECE (LC-3005) x 5 PCS
- CLAMPING PIECE (LC-3006) x 1 PCS
- CLAMPING PIECE (LC-3019) x 1 PCS
- CLAMPING PIECE (LC-3020) x 1 PCS
- DRILL SLEEVE ER-20 (LL-3009) x 4 PCS
- COUNTER FACE DRILL SLEEVE (LL-3021A) x 2 PCS
- DRILL SLEEVE (LL-3029A/B/C/D; φ 4/6/8/10 MM) x 1 PC OF EACH
- CROSS MILLING UNIT-3 TOOL TYPE (LL-CD00 )
- MILLING UNIT (LL-ZBB0) x 2 PCS
- 3-SPINDLE FRONT MILLING UNIT (LL-ZBD0) x 1 PCS
TOOL HOLDER PACKAGE (SUB-SPINDLE) WITH Y AXIS FOR SUB SPINDLE LL-DC00
- DRILL SLEEVE HOLDER(LL-3004) x 4 PCS
- ID TOOL HOLDER (LL-3024, LL-3025A/B/C) x 1 PC OF EACH φ4/6/8/10
- MILLING UNIT(LC-DZI2) x 4 PCS
- UPGRADED BACK WORKING TOOL WITH Y-AXIS
DESIGNATED UPGRADED BARLOAD AUTO 32 SERIES 3.6 M BAR FEEDER
PNEUMATIC PARTS EJECTOR
COOLANT THROUGH SUB-SPINDLE
GUIDE BUSH (32MM)
COLLET SET FOR MAIN SPINDLE (½, 5/8,3/4,1.0, and 1.25") x 1 EA
COLLET FOR SUB SPINDLE (½, 5/8,3/4,1.0, and 1.25") x 1 EA
CHIP CONVEYOR
ALLCOOL SC1000 HIGH PRESSURE COOLANT SYSTEM (70BAR) WITH 4 PORTS
