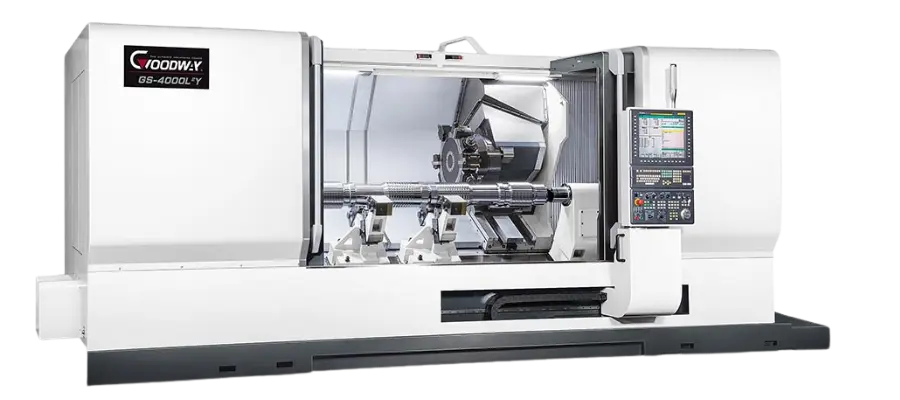

GOODWAY GS-4000L2Y CNC TURNING CENTER
ConditionNew
New
Goodway CNC Lathe GS-4000L2Y – Built for Long-Bed Precision Machining
The Goodway CNC Lathe GS-4000L2Y is a powerful solution for heavy-duty and complex machining tasks. Equipped with the advanced FANUC 0i-F control system and a 15" LCD screen with Manual Guide-i, it ensures smooth, precise operations with operator-friendly controls.
With its upgraded long-bed design (up to 2,369 mm), Y-axis capabilities, and a 12-station live tooling turret with speeds up to 6,000 RPM, the GS-4000L2Y delivers unmatched versatility. Additional features include an 18" hydraulic 3-jaw chuck, programmable hydraulic tailstock, and Renishaw tool setter, making it perfect for handling large, intricate workpieces.
Enhanced by a 2-step gearbox, upgraded coolant system, and advanced lubrication, this lathe is built for durability, efficiency, and high-performance machining.
Engineered to excel in industries like aerospace, oil & gas, and heavy equipment manufacturing, the GS-4000L2Y is your go-to machine for precision and productivity.
Boost your production with the GS-4000L2Y. Learn more today!
FANUC 0i-F WITH 15" LCD SCREEN WITH MANUAL GUIDE-I
FANUC ABSOLUTE ENCODER AC SERVO DRIVE MOTORS
LONG BED L2 TYPE UP TO 2,369 MM
2-STEPS GEAR BOX
18" HYDRAULIC 3 JAWS CHUCK INCL. 1 EA OF HARD & SOFT JAWS
CS-AXIS MAIN SPINDLE (GREASE TYPE SPINDLE)
HYDRAULIC TYPE LP-1 PROGRAMMABLE TAIL STOCK (QUILL/BODY ARE PROGRAMMABLE) (LIVE CENTER MT5) (QUILL DIA. 120MM, QUILL TRAVEL 150MM)
RENISHAW TOOL SETTER HPRA FOR MAIN SPINDLE
12 STATION LIVE TOOLING TURRET, DRIVEN TOOL MOTOR 3.7/ 5.5KW BUILT IN MOTOR), ID SHANK 50MM, OD SHANK 25MM, LIVE TOOL COLLET 0 DEGREE ER-40, 90° ER40, MAX. SPEED 6000 RPM
Y-AXIS
2 X 0° LIVE TOOL HOLDER ER-40/EC
2 X 90° LIVE TOOL HOLDER ER-40/EC
UPGRADED CHIP CONVEYOR HEIGHT TO 1200MM
UPGRADED TO 7 BARS COOLANT PUMP
OIL SKIMMER
COOLANT LEVEL SWITCH
RIGID TAPPING / SPINDLE ORIENTATION
C3 CLASS BALL SCREWS WITH PRETENSION ON ALL AXES
CHIP CONVEYOR (HINGE TYPE) WITH AUTO TIMER
HYDRAULIC SYSTEM
FULLY ENCLOSED SPLASH COVERS
ADVANCE AUTO LUBRICATION SYSTEM FOR SLIDE WAYS AND BALL SCREWS
OIL LUBRICATION SYSTEM FOR SPINDLE BEARINGS & GEARS
TRI-COLOR LED SIGNAL TOWER(YELLOW/RED/GREEN)
HIGH INTESITY LED WORK LIGHT
M CODE AUTOMATIC POWER OFF
FOOT SWITCH FOR CHUCK
RS-232 INTERFACE
ELECTRIC CABINET HEAT EXCHANGER
FOUNDATION AND LEVELLING KIT/MAINTENANCE TOOL KIT
OPERATION & MAINTENANCE MANUALS
