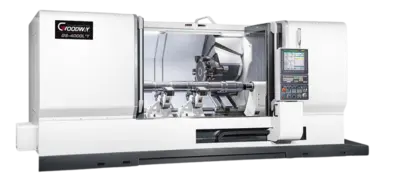

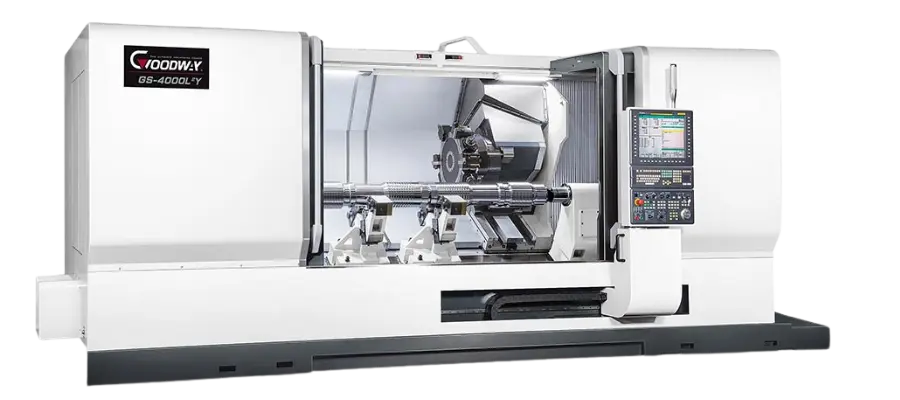

GOODWAY GS-4000L3M CNC TURNING CENTER
ConditionNew
New
MAXIMUM PERFORMANCE CNC TURNING CENTER
For those seeking a heavy-duty maximum performance turning center that's packed with the
latest technologies, GOODWAY's GS-4000 series is the perfect answer. These machines offer
awesome turning power, with the 2-speed gear-head spindles being standard on most models.
Live tooling, Y-axis and sub-spindle models further increase machining efficiency and accuracy,
while reducing manpower. Furthermore, GOODWAY machines are always fully loaded with
standard features that are either not available or costly options found on other machines.
Features such as the chip conveyor, programmable base tailstock, turning tool holders, and many
more standards.
KEY FEATURES:
• 37 kW high horsepower spindle motor drive with 2-speed gear box design provides max. torque 2,920 Nm in 121 rpm ( GS-4300 ) which can meets any heavy cutting requirements.
• All axes guide ways are designed by high rigid box way with heat treatment and precision grinding which
provides the rigidity needed for heavy cutting.
• Option live tooling turret, sub-spindle, C-axis and Y-axis control allows GS-4000 series to perform multiple
tasks on both front and rear side of work-piece, such as turning, off-center milling, drilling and tapping. The
machining capability equals the integration of two turning center and a machining center, which all machining process can be done in one GS-4000 machine.
FANUC 0i-TF 15" LCD INCL. MANUAL GUIDE I
2,000 RPM SPINDLE (1ST GEAR = 1,000 RPM, 2ND GEAR = 2,000 RPM)
30/37 kW (CON./30MIN) FANUC SPINDLE MOTOR
UPGRADED L TYPE BED to 1569 mm
18" HYDRAULIC 3 JAWS CHUCK INCL. 1 EA OF HARD & SOFT JAWS
CS-AXIS (GREASE TYPE SPINDLE)
12 STATION LIVE TOOLING TURRET,
DRIVEN TOOL MOTOR 3.7/5.5 kW, ID SHANK 50MM, OD SHANK 25MM,
2x LIVE TOOL HOLDER+COLLET 0 DEGREE ER-40, MAX. SPEED 6000RPM
2x LIVE TOOL HOLDER+COLLET 90 DEGREE ER40, MAX. SPEED 6000RPM
Y-Axis
UPGRADED CHIP CONVEYOR HEIGHT 1200MM REPLACING STANDARD CHIP CONVEYOR(850MM)
AIR BLOW FOR MAIN SPINDLE CHUCK (OR SUB-SPINDLE CHUCK)
COOLANT ABOVE MAIN SPINDLE CHUCK (OR SUB-SPINDLE CHUCK)
7 BARS COOLANT PUMP (KEEP STANDARD 5 BARS COOLANT PUMP, SWITCHING BY M CODE)
OIL SKIMMER
COOLANT LEVEL SWITCH
EXTRA 8 M CODE
BAR FEEDER INTERFACE
2-STEPS GEAR BOX SPINDLE
HYDRAULIC CYLINDER FOR BAR CAPACITY 115MM
RIGID TAPPING / SPINDLE ORIENTATION
WIDELY SPACED BOX WAYS ON ALL AXES
FANUC ABSOLUTE ENCODER AC SERVO DRIVE MOTORS
C3 CLASS BALL SCREWS WITH PRETENSION ON ALL AXES
CHIP CONVEYOR (HINGE TYPE) WITH AUTO TIMER
HYDRAULIC SYSTEM
FULLY ENCLOSED SPLASH COVERS
ADVANCE AUTO LUBRICATION SYSTEM FOR SLIDE WAYS AND BALL SCREWS
OIL LUBRICATION SYSTEM FOR SPINDLE BEARINGS & GEARS
TRI-COLOR LED SIGNAL TOWER(YELLOW/RED/GREEN)
HIGH INTESITY LED WORK LIGHT
M CODE AUTOMATIC POWER OFF
FOOT SWITCH FOR CHUCK
RS-232 INTERFACE
ELECTRIC CABINET HEAT EXCHANGER
FOUNDATION AND LEVELING KIT/MAINTENANCE TOOL KIT
OPERTION & MAINTENANCE MANUALS
