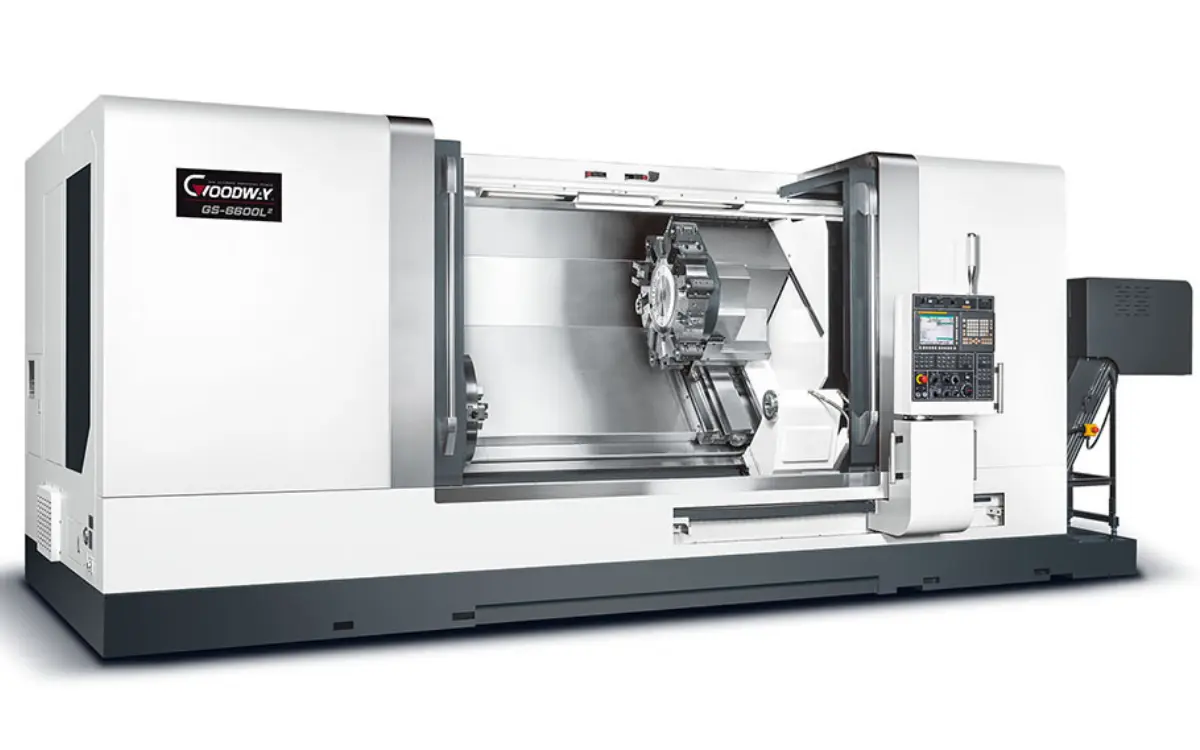

GOODWAY GS-6000L3 CNC TURNING CENTER
ConditionNew
New
The Goodway GS-6000L Series CNC Turning Centers deliver unmatched performance with advanced technology, precision engineering, and robust construction. Designed for heavy-duty cutting and maximum efficiency, these machines feature a true 45° slant bed with super-wide box ways for superior rigidity and vibration resistance, ensuring stable and accurate machining even under heavy loads.
Equipped with a large-diameter servo turret—boasting rapid 1-second indexing—and a 2-step gear spindle, the GS-6000L Series provides exceptional torque, power, and high-speed performance. The turret's massive disk (over 750 mm) ensures effortless handling of demanding operations, while the fully enclosed design keeps chips and coolant contained for a cleaner, safer working environment. Combined with rapid traverse rates and an optional oil bath 3-step gearbox for enhanced torque, the GS-6000L Series offers the flexibility and power needed for today’s and tomorrow’s machining challenges.
Key Features:
• High Capacity: Turn lengths up to 3,300 mm (L³ model) and diameters up to Ø880 mm.
• Powerful Spindle: 37 kW motor with optional 3-step gearbox for torque up to 4,912 N·m.
• Rapid Motion: Traverse rates of 20 m/min (X-axis) and 24 m/min (Z-axis).
• Advanced Turret: 12-station turret with blazing fast 1-second indexing.
• Durable Build: 45° slant bed with wide box ways and fully enclosed chip containment.
FANUC 0i-TF PLUS WITH 10.4" LCD SCREEN
DYNAMIC GRAPHIC DISPLAY FOR FANUC 0i-TF PLUS 10.4" LCD
FANUC ABSOLUTE ENCODER AC SERVO DRIVE MOTORS
12 STATION STANDARD TURRET WITH TOOL HOLDER PACKAGE
30/37KW (CON./30MIN) FANUC SPINDLE MOTOR
UPGRADED BED TURNING LENGTH TO L3 3300 MM
HYDRARULIC CYLINDER (MAX. BAR CAPACITY 115MM)
15" HYDRAULIC 3 JAWS CHUCK INCLUDING 1 EACH OF HARD & SOFT JAWS
PREPARATION FOR PROGRAMMABLE BASE CLAMPING HYDRAULIC STEADY REST INCLUDING BASE, BRACKET, HYDRAULIC VALVE, PIPE AND ELECTRIC PARTS
HYDRAULIC STEADY REST SMW-SLU-4 (Ø30~Ø245MM)
UPGRADED TO ZF - 3 STEP GEAR BOX
HYDRAULIC TYPE LP-1 PROGRAMMABLE BUILT-IN TAIL STOCK (QUILL/BODY ARE PROGRAMMABLE) (DEAD CENTER MT5) (QUILL DIA. 160MM, QUILL TRAVEL 150MM)
DEAD CENTER FOR TAIL STOCK MT5
RENISHAW TOOL SETTER HPRA FOR MAIN SPINDLE
OIL SKIMMER
COOLANT LEVEL SWITCH
EXTRA 8 M CODE
RIGID TAPPING / SPINDLE ORIENTATION
WIDELY SPACED BOX WAYS ON ALL AXES
C3 CLASS BALL SCREWS WITH PRETENSION ON ALL AXES
CHIP CONVEYOR (HINGE TYPE) WITH AUTO TIMER
COOLANT SYSTEM WITH GRUNDFOS 1HP COOLANT PUMP
HYDRAULIC SYSTEM
FULLY ENCLOSED SPLASH COVERS
ADVANCE AUTO LUBRICATION SYSTEM FOR SLIDE WAYS AND BALL SCREWS
OIL LUBRICATION SYSTEM FOR SPINDLE BEARINGS & GEARS
TRI-COLOR LED SIGNAL TOWER(YELLOW/RED/GREEN)
HIGH INTESITY LED WORK LIGHT
M CODE AUTOMATIC POWER OFF
FOOT SWITCH FOR CHUCK
RS-232 INTERFACE
ELECTRIC CABINET HEAT EXCHANGER
FOUNDATION AND LEVELING KIT/MAINTENANCE TOOL KIT
OPERATION & MAINTENANCE MANUALS
