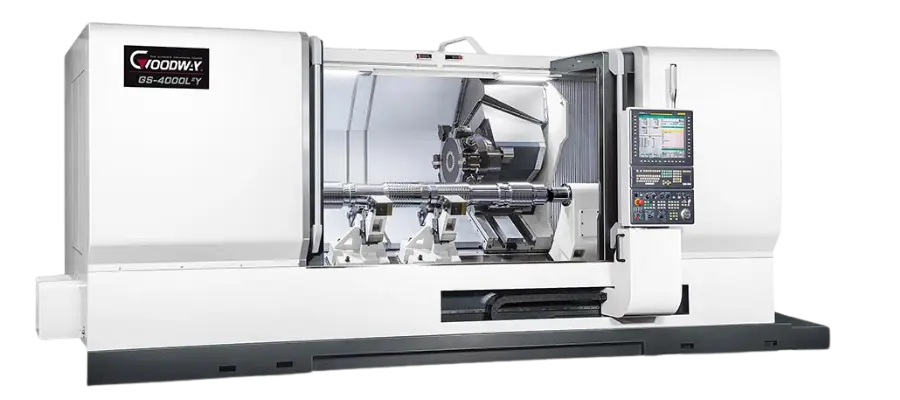

GOODWAY GS-4300L3 CNC TURNING CENTER
ConditionNew
New
MAXIMUM PERFORMANCE CNC TURNING CENTER
For those seeking a heavy-duty maximum performance turning center that's packed with the latest technologies, GOODWAY's GS-4000 series is the perfect answer. These machines offer awesome turning power, with the 2-speed gear-head spindles being standard on most models.
Optional live tooling, Y-axis and sub-spindle models further increases machining efficiency and accuracy, while reducing manpower. Furthermore, GOODWAY machines are always fully loaded with standard features that are either not available or costly options found on other machines. Features such as the chip conveyor, programmable base tailstock, turning tool holders, and many more standards.
KEY FEATURES:
• 37 kW high horsepower spindle motor drive with 2-speed gear box design provides max. torque 2,920 Nm in 121 rpm ( GS-4300 ) which can meets any heavy cutting requirements.
• All axes guide ways are designed by high rigid box way with heat treatment and precision grinding which
provides the rigidity needed for heavy cutting.
• Option live tooling turret, sub-spindle, C-axis and Y-axis control allows GS-4000 series to perform multiple
tasks on both front and rear side of work-piece, such as turning, off-center milling, drilling and tapping. The
machining capability equals the integration of two turning center and a machining center, which all machining process can be done in one GS-4000 machine.
FANUC 0i-TF PLUS WITH 10.4” COLOR LCD
RIGID TAPPING AND SPINDLE ORIENTATION
FANUC ALPHA SPINDLE AND SERVO DRIVES
FANUC AC 40HP (CONT.), 50 HP (30 MIN), 60HP (PEAK) SPINDLE MOTOR
DIRECT 2 SPEED GEAR HEAD SPINDLE
SPINDLE SPEED: LOW GEAR: 600 RPM, HIGH GEAR: 1,200 RPM
21 INCH 3-JAWS THROUGH-HOLE 6.5” (165MM) POWER CHUCK
C-AXIS WITH DISK BRAKE ON MAIN SPINDLE
X / Z AXIS SERVO MOTOR: FANUC ALPHA SERVO MOTOR 9.4 HP (CONT.)
12-STATION 12 LIVE SERVO INDEXING TURRET WITH 1” OD & 2” ID TOOLING, ER-40 LIVE TOOLING, 10 HP BELT DRIVEN MOTOR, 4000 RPM MAX LIVE TOOLING SPEED
RENISHAW (HPRA) REMOVABLE PROGRAMMABLE IN-MACHINE TOOL SETTER
FULLY PROGRAMMABLE HYDRAULIC TAILSTOCK & PROGRAMMABLE NON-ROTATING TYPE QUILL INCLUDING LIVE CENTER MT#5
CHIP CONVEYOR WITH AUTO TIMER, HINGE TYPE, RIGHT DISCHARGE, 47” DISCHARGE HEIGHT
GRUNDFOS 132 PSI COOLANT PUMP (MTH 2-70/7) WITH ROLL-OUT COOLANT TANK
ADVANCE AUTOMATIC LUBRICATION SYSTEM & COMPLETE HYDRAULIC SYSTEM
OIL SKIMMER
ELECTRIC TORQUE LIMITER
LEVELING BOLT AND LEVELING PAD
WORK LIGHT & THREE-COLOR OPERATION STATUS SIGNAL LIGHT TOWER
STANDARD TOOL HOLDER & SLEEVES PACKAGE (V5 PACKAGE).
1 x 0° ER-40 EC LIVE TOOL HOLDER
1 x 90° ER-40 EC LIVE TOOL HOLDER
ARBITRARY THREADING FUNCTION
PREPARATION FOR HYDRAULIC STEADY REST INCLUDING BASE, BRACKET, HYDRAULIC VALVE, PIPE AND ELECTRIC PARTS.
FULLY ENCLOSED GUARDING
DOOR INTERLOCK
HYDRAULIC PRESSURE SAFETY SWITCH
PROGRAM PROTECT
CHUCK CLAMP/UNCLAMP CONFIRMATION
TOOLBOX WITH EMERGENCY MAINTENANCE ELECTRICAL PART PACKAGE
OPERATION & MAINTENANCE MANUALS, PARTS LIST & ELECTRICAL DRAWINGS
