MFT 1500/2T CR- GUN DRILL TOOL

Description

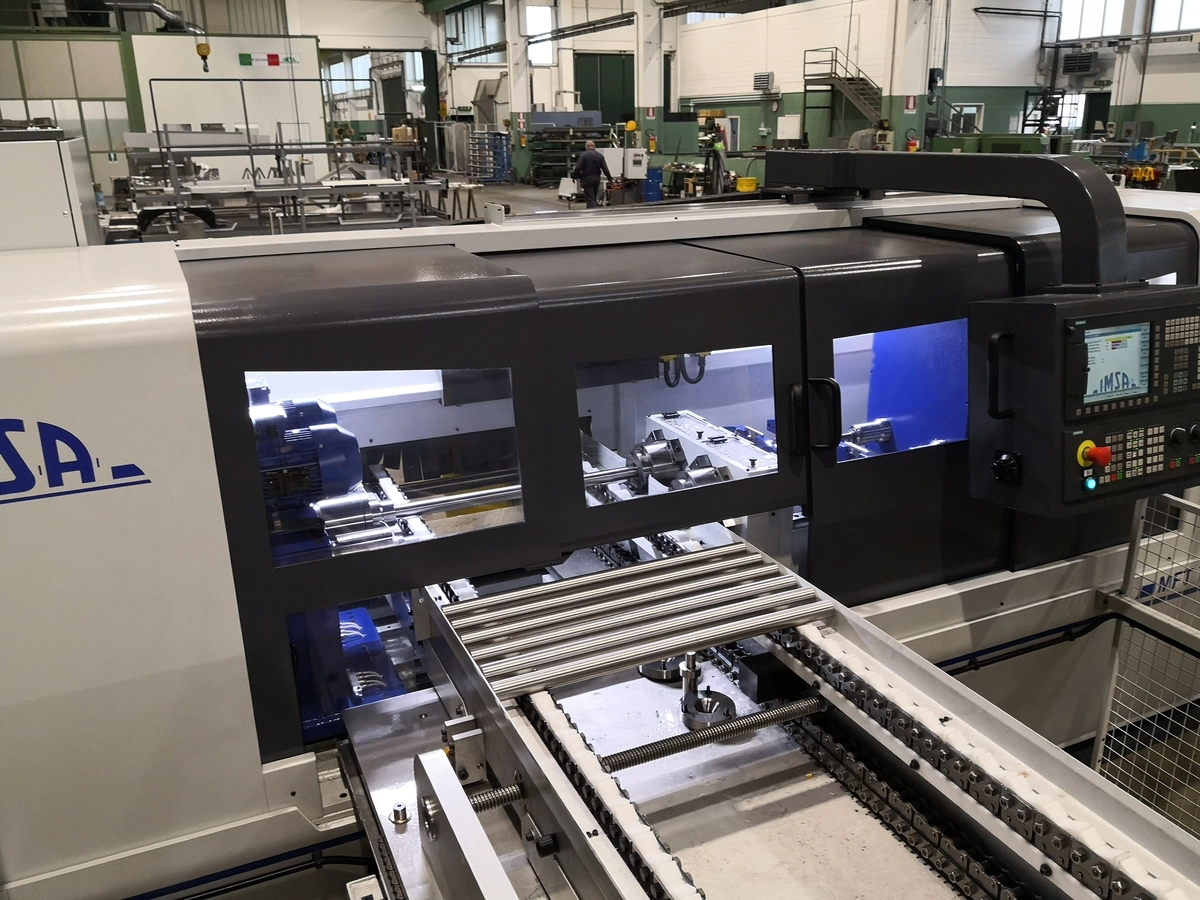

IMSA MFT 1500/2T CR - Double-Spindle Gun Drill Tool
The IMSA MFT 1500/2T CR is a cutting-edge CNC deep hole drilling machine specifically designed to drill on-center holes in cylindrical workpieces. Built for precision and efficiency, this machine is equipped with dual drilling heads on a single carriage, enabling simultaneous drilling of two identical workpieces per cycle. With its focus on high-volume production, the MFT 1500/2T CR ensures exceptional performance and cost-effectiveness in industrial manufacturing.

Designed for workpieces that require drilling along their rotational axis, this advanced drilling tool supports hole diameters ranging from 6 to 24 mm and delivers drilling depths of up to 1500 mm. The machine utilizes the gun drill method, supported by a powerful 12.0 kW spindle operating at 4,000 rpm to achieve precise and reliable results.

Key Features:

• Drilling Capacity: Hole diameters: 6 – 24 mm | Drilling depth: Up to 1500 mm.
• Dual-Spindle Design: Two drilling heads on one carriage for faster production.
• Precision Drilling: Workpiece counter-rotates at 150 rpm for straight, accurate holes. Adjustable tool connection compensates for minor discrepancies in tool length.
• Drilling Power: 12.0 kW spindle, 4,000 rpm for consistent performance.
• Advanced Oil Management: High-pressure pumps, 3-level filtering, and cooling system ensure smooth, uninterrupted operations.
