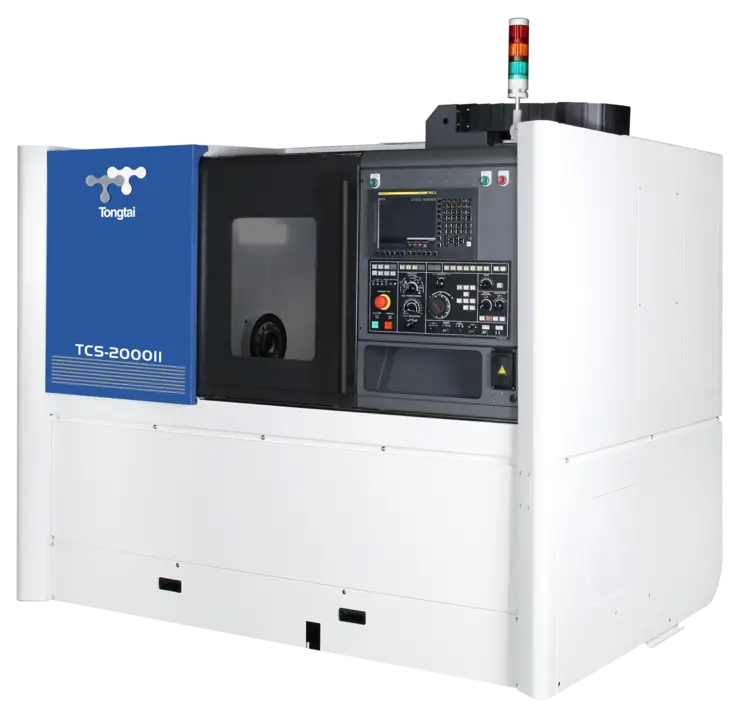

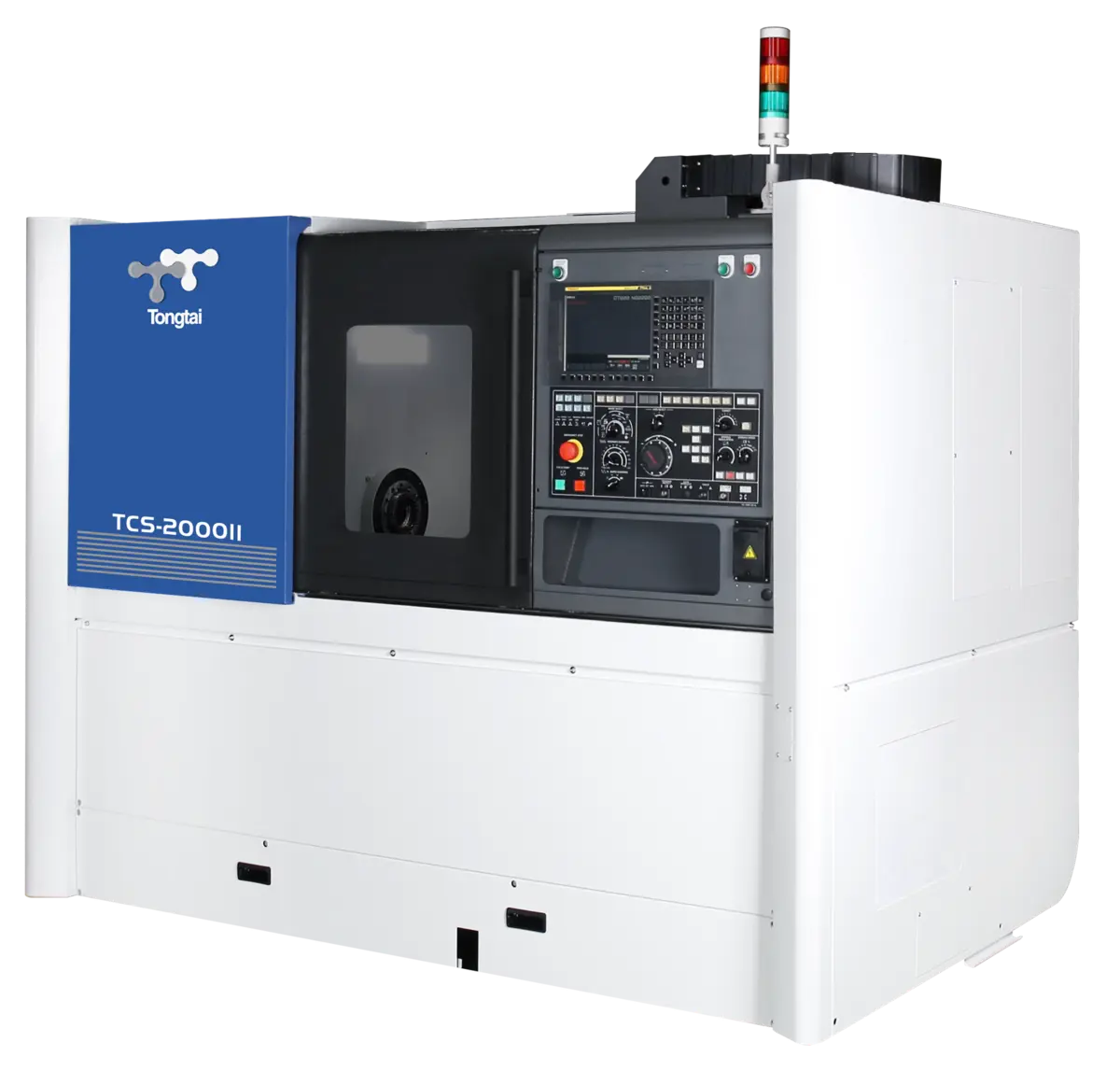

TONGTAI TCS-2000II CNC TURNING CENTER

1.888.565.8807
sales@megatelcnc.com
ConditionNew
3 available

Document (1)

Tongtai TCS Series_Brochure.pdf

Overview

Type:
Single Turret 2 - axis Turning Center
Manufacturer:
TONGTAI
Model:
TCS-2000II
Condition:
New - In-Stock
Status:
For Sale

Description

Introducing the new TONGTAI TCS2000-II CNC Turning Center, featuring a max turning diameter of 300 mm and spindle speed of 4,500 RPM. Equipped with FANUC 0i-TF Plus control, an 8" standard chuck, and a 15 kW motor, this single turret 2-axis machine is built for precision and power.

Structure is designed with finite element analysis, enhancing dynamic rigidity and stability. Highly efficient cutting capability. Servo driven turret allows for quick tool changing, reducing non-cutting time. Excellent cost performance value

Max Swing Diameter20.473"520 mm
Swing Over Saddle320"8,128 mm
Max Turning Diameter11.811"300 mm
Max Turning Length15.748"400 mm
X/Z Axis Stroke170/400 mm170/400 mm
X/Z Axis Rapid Traverse30/30 m/min30/30 m/min
Spindle Speed4,500 RPM4,500 RPM
Spindle NoseA2-6A2-6
Standard Chuck Size8"203.2 mm
Standard Bar Capacity2.0079"51 mm
Motor20.1 hp15 kW
CN ControlFANUC 0i-TF PlusFANUC 0i-TF Plus

FANUC 0i-TF PLUS WITH 10.4’’ LCD SCREEN
4500 RPM, 15/1 KW
8” CHUCK WITH ⌀51 MM BAR CAPACITY
12 STATION SERVO TURRET
CHAIN TYPE CHIP CONVEYOR WITH TROLLEY
BAR FEEDER INTERFACE
OIL SKIMMER
MANUAL TOOL PRESENTER
