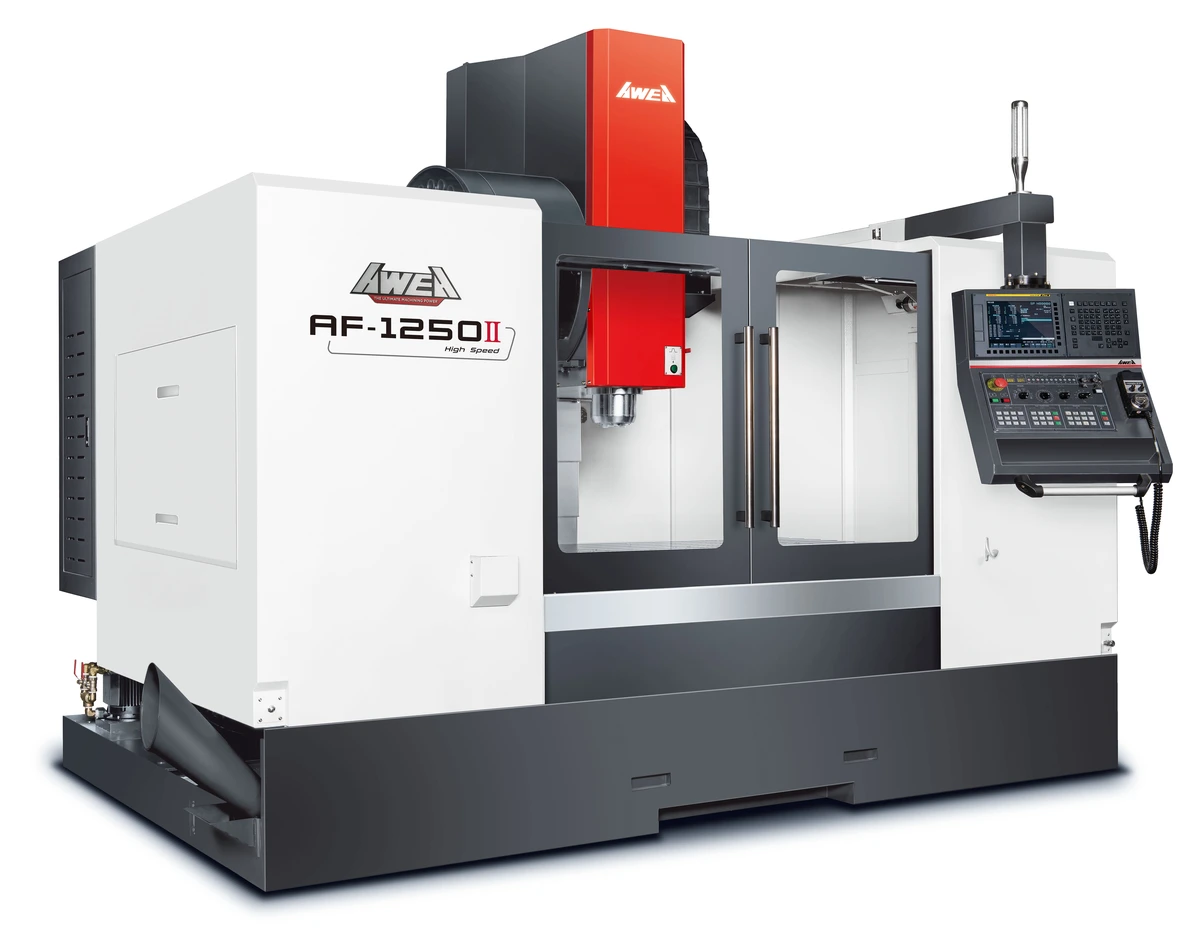

AWEA AF-1250II - CNC VERTICAL MACHINING CENTER (SN: 24011)
ConditionNew
1 available
New
Introducing the AWEA AF-II series, engineered with mature manufacturing abilities and advanced technology skills for exceptional machining performance.
Key Features:
• High rigidity structure and three axes high precision linear guide way design
• Fast arm type ATC and chip conveying system for efficient operation
• Broadly used in high precision machine parts manufacturing, meeting current and future demands
• Specialized for high precision parts and mold machining industry, offering high precision and efficiency at a reasonable cost
• Three axes equipped with high precision linear guide way design for optimal control and efficient movement, with options for roller or ball type guide way
• Rotary operation panel and large width protection door for convenient operation and spacious loading/unloading
• Independent coolant tank system for easy maintenance, with a high-pressure coolant pump for efficient cooling capabilities.
MITSUBISHI M80 W/ 15" LCD DISPLAY
15,000 RPM DIRECT DRIVE SPINDLE CAT40 DUAL CONTACT
36 TOOLS ATC MAGAZINE
ROLLER LINEAR GUIDEWAY
20 BAR COOLANT THROUGH SPINDLE SYSTEM WITHOUT CTS TANK
AIR THROUGH SPINDLE
4TH AXIS PREPARATION READY
CHIP WASH DOWN COOLANT
CATERPILLAR TYPE CHIP CONVEYOR
CHIP BUCKET
TWO FLUORESCENT LIGHTS AND ONE WORKING LIGHT (LED)
OIL LUBRICANT SEPARATOR
SIDE DOOR WITH WINDOW ON THE LEFT AND RIGHT OF MACHINE (OPEN WITH 2 KEYS)
ROOF ENCLOSED SPLASH GUARD
ELECTRICAL CABINET HEAT EXCHANGER
SCREW TYPE CHIP AUGER
SPINDLE COOLING SYSTEM
CENTRALIZED AUTOMATIC LUBRICATING
SPINDLE AIR CURTAIN
AUTOMATIC POWER-OFF SYSTEM
GLASS PROTECTED FRONT WINDOW
AIR TANK FOR TOOL MAGAZINE
Introducing the AWEA AF-II series, engineered with mature manufacturing abilities and advanced technology skills for exceptional machining performance.
Key Features:
• High rigidity structure and three axes high precision linear guide way design
• Fast arm type ATC and chip conveying system for efficient operation
• Broadly used in high precision machine parts manufacturing, meeting current and future demands
• Specialized for high precision parts and mold machining industry, offering high precision and efficiency at a reasonable cost
• Three axes equipped with high precision linear guide way design for optimal control and efficient movement, with options for roller or ball type guide way
• Rotary operation panel and large width protection door for convenient operation and spacious loading/unloading
• Independent coolant tank system for easy maintenance, with a high-pressure coolant pump for efficient cooling capabilities.
Metric
| X-Axis Travel | 1,250 mm |
| Y-Axis Travel | 650 mm |
| Z-Axis Travel | 610 mm |
| Table Size-X | 1,350 mm |
| Table Size-Y | 650 mm |
| Table Load Capacity | 1,000 kg |
| Spindle Center to Column | 710 mm |
| Max Spindle Nose to Table | 735 mm |
| Spindle Speed | 15,000 RPM |
| Spindle Taper | CAT40 Big Plus |
| ATC | 36 |
| CN Control | Mitsubishi M80 w/ 15" LCD display |
| # Axis | 3 |
MITSUBISHI M80 W/ 15" LCD DISPLAY
15,000 RPM DIRECT DRIVE SPINDLE CAT40 DUAL CONTACT
36 TOOLS ATC MAGAZINE
ROLLER LINEAR GUIDEWAY
20 BAR COOLANT THROUGH SPINDLE SYSTEM WITHOUT CTS TANK
AIR THROUGH SPINDLE
4TH AXIS PREPARATION READY
CHIP WASH DOWN COOLANT
CATERPILLAR TYPE CHIP CONVEYOR
CHIP BUCKET
TWO FLUORESCENT LIGHTS AND ONE WORKING LIGHT (LED)
OIL LUBRICANT SEPARATOR
SIDE DOOR WITH WINDOW ON THE LEFT AND RIGHT OF MACHINE (OPEN WITH 2 KEYS)
ROOF ENCLOSED SPLASH GUARD
ELECTRICAL CABINET HEAT EXCHANGER
SCREW TYPE CHIP AUGER
SPINDLE COOLING SYSTEM
CENTRALIZED AUTOMATIC LUBRICATING
SPINDLE AIR CURTAIN
AUTOMATIC POWER-OFF SYSTEM
GLASS PROTECTED FRONT WINDOW
AIR TANK FOR TOOL MAGAZINE
