ECOCA SJ560 HIGH PRECISION MANUAL LATHE

Description

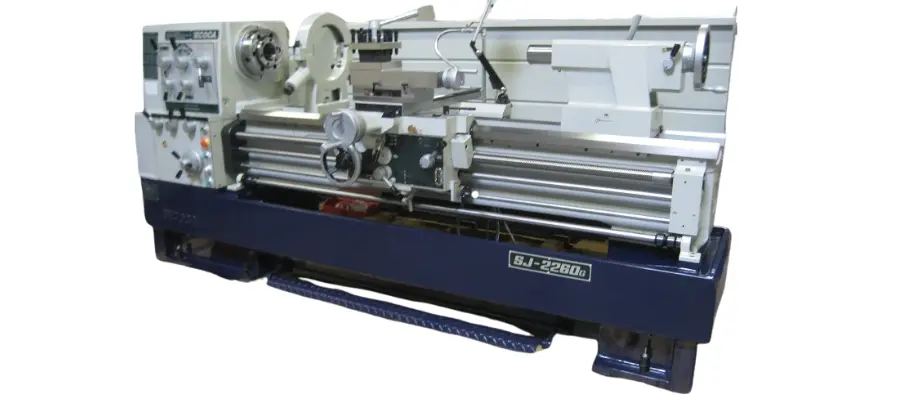

ECOCA SJ560 Series 22″ x 60″ High-Speed Precision Geared-Head Lathe

The ECOCA SJ560 Series 22″ swing x 60″ centre high-speed precision geared-head lathe is designed for shops that demand accuracy, rigidity, and versatility. Built on a one-piece Meehanite cast base and tailstock, this lathe offers outstanding vibration damping and stability, ensuring smooth and accurate cutting performance even on heavy jobs. The universal geared-head gearbox allows easy switching between inch and metric threads without changing end-train gears, saving time and improving efficiency. With a 22″ swing over bed, a 31″ swing in gap, and a 3.125″ spindle bore, the SJ560 handles large and heavy workpieces with ease. Its D1-8 spindle nose and up to 1,500 RPM spindle speed deliver reliable power and flexibility for a wide range of applications in job shops, toolrooms, and precision engineering. Adjustable spindle balancing accommodates irregularly shaped workpieces, while the robust 14″ bed width ensures consistent precision. Complete with essential equipment such as a 10″/12″ 3-jaw chuck, rests, coolant system, splash guard, and safety foot brake, the ECOCA SJ560 is a proven choice for machinists who need a high-speed precision manual lathe that performs with consistency and durability.

Key Features

• 22″ swing over bed, 31″ swing in gap, 13.5″ swing over cross slide
• 60″ distance between centres for larger workpieces
• Universal geared-head gearbox for inch & metric threads
• 3.125″ spindle bore with D1-8 spindle nose
• Up to 1,500 RPM spindle speed
• One-piece Meehanite cast base and tailstock for rigidity
• Adjustable spindle balancing for irregular workpieces
• 14″ bed width for heavy-duty stability
• Supplied with 10″/12″ 3-jaw chuck, steady & follow rests, coolant system, splash guard, foot brake
