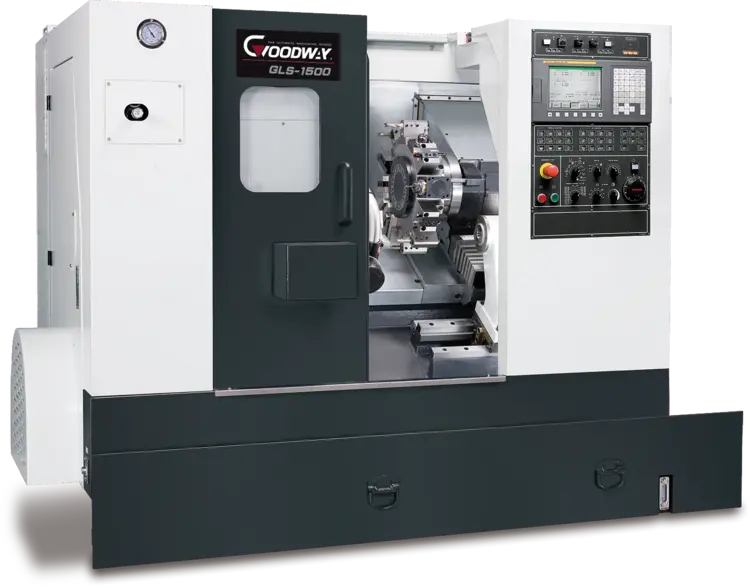

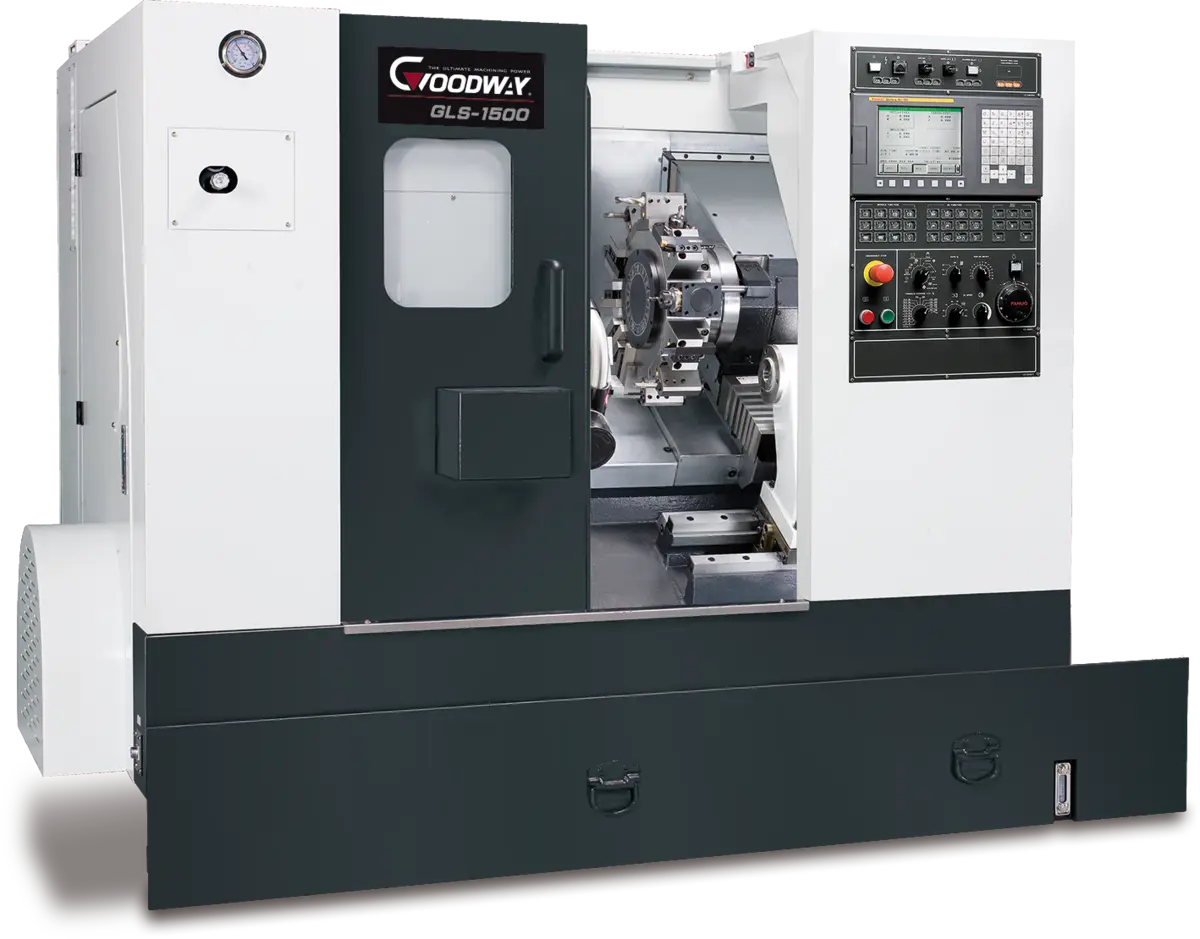

With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GLS-1500 series high-speed CNC turning center. Using 2 types of bed combined with super rigidity, high-speed turning capability and compact size provides you with super efficiency cutting power. The GLS-1500 series equipped with an optional live tooling turret, Y-axis and sub-spindle can work on turning, milling, drilling tasks at the same time to increase the output capacity with high end value to meet your needs of today and tomorrow.
Key Features:
• 30˚ slant-bed design provides smooth chip disposal and easier operator access.
• Steel way covers and special steel wipers molded with industrial strength rubber are used for durability.
• Fully enclosed splash guards keep chips and coolant contained for a safe clean working environment.
• The auto lubrication system delivers metered amounts of lubrication to the slideways, ball screws, and vital components. Distribution is automatically shut off during idling to prevent waste.
FANUC OI MATE
FANUC ABSOLUTE ENCODER AC SERVO DRIVE MOTORS
12 LIVE TOOL STATIONS TURRET WITH HALF INDEXING (CY-DCDO) ER-25
CS-AXIS WITH DISK BRAKE ON MAIN SPINDLE
6" TAIWAN MADE 3 JAWS BIG BORE (51MM BAR CAPACITY) CHUCK WITH ONE SET EA. SOFT & HARD JAWS.
5’’ SUB SPINDLE INCLUDING PART EJECTOR
CSA ELECTRIC
7 BAR HIGH PRESSURE COOLANT
Y AXIS
CHIP CONVEYOR
RIGID TAPPING
SPINDLE ORIENTATION
LINEAR GUIDWAYS ON ALL AXES
C3 CLASS BALL SCREWS WITH PRETENSION ON ALL AXES
CHIP CONVEYOR (HINGE TYPE) WITH AUTO TIMER
COOLANT SYSTEM WITH 3/4 HP COOLANT PUMP
HYDRAULIC SYSTEM
FULLY ENCLOSED SPLASH COVERS
ADVANCE AUTO LUBRICATION SYSTEM
TRI-COLOR SIGNAL TOWER(YELLOW/RED/GREEN)
HIGH INTENSITY WORK LIGHT
M CODE AUTOMATIC POWER OFF
FOOT SWITCH FOR CHUCK
RS-232 INTERFACE ETHERNET, USB AND SSD CARD COMMUNICATION
ELECTRIC CABINET HEAT EXCHANGER
FOUNDATION AND LEVELING KIT/MAINTENANCE TOOL KIT
OPERATION & MAINTENANCE MANUALS
OIL SKIMMER
CHIP CART
PART CATCHER
1 LIVE TOOL HORIZONTAL+1 LIVE TOOL VERTICAL
1 AUTO RENISHAW TOOL SETTER (FOR MAIN SPINDLE) HPMA
