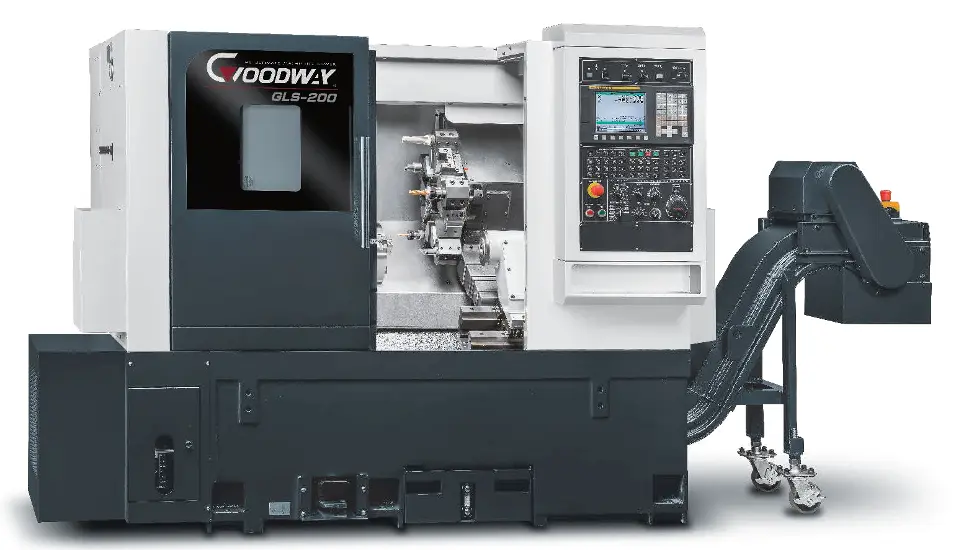

GOODWAY GLS-200 HIGH SPEED CNC TURNING CENTERS
ConditionNew
New
The Goodway GLS-200 High-Speed CNC Turning Center is a precision-engineered machine tool designed to deliver superior performance, accuracy, and reliability for modern manufacturing. Built with a thermally balanced one-piece MEEHANITE® casting and a 30-degree slant bed design, the GLS-200 provides exceptional rigidity and vibration damping, ensuring long-term machining accuracy and extended tool life. Powered by a 15 kW (20 HP) spindle motor with 4,500 rpm speed and P4-class super-precision bearings, this CNC lathe offers outstanding torque and smooth performance for heavy-duty turning applications. Its 8-inch hydraulic chuck and 65 mm bar capacity make it ideal for a wide range of precision machining tasks in industries such as automotive, aerospace, and general engineering.
The GLS-200’s 12-station servo-driven turret ensures fast indexing in just 0.2 seconds, while optional live tooling and Y-axis capabilities enable complex milling, drilling, and contouring operations in a single setup, reducing cycle time and increasing productivity. Equipped with the advanced FANUC Oi-TF Plus CNC control system, this high-speed turning center features a 10.4-inch color LCD, 3D cutting simulation, manual guide programming, and intelligent load monitoring for easy setup and enhanced operational efficiency. The machine’s linear guideways deliver high-speed, smooth movement up to 30 m/min, supported by an automatic lubrication system, fully enclosed splashguards, and optional high-pressure coolant system for a clean, reliable production environment. With available automation options such as bar feeders, parts conveyors, and gantry loaders, the Goodway GLS-200 CNC lathe offers unmatched versatility and productivity for high-precision, high-volume machining operations.
Key Features:
• High-speed machining with up to 30 m/min rapids.
• Durable construction: 30° slant bed and Meehanite casting for increased rigidity.
• Optional live tooling, C-axis, and Y-axis for versatile turning and milling applications.
• Precision control with rigid tapping and direct belt-drive spindle system.
• Designed for long-term high precision and extended tool life.
• Enhanced safety: Fully enclosed splashguards and auto lubrication system.
FANUC 0i-TD CONTROL WITH 10.4" LCD SCREEN
FANUC MANUAL GUIDE-I
FANUC ALPHA P22 SPINDLE MOTOR 11/15KW
LINEAR GUIDEWAYS ON ALL AXIS
8" HYDRAULIC CYLINDER
STANDARD 12 STATION SERVO TURRET
STANDARD TOOL HOLDER AND SLEEVE PACKAGE
RENISHAW TOOL MEASURING SYSTEM
FULLY ENCLOSED GUARDING
DOOR INTERLOCK TAILSTOCK STROKE OUT-END CHECK
CHUCK CYLINDER STROKE OUT-END CHECK CHUCK CYLINDER CHECK VALVE
LOW HYDRAULIC PRESSURE DETECTION SWITCH OVER TRAVEL ( SOFT LIMIT )
CHIP DRAWER (WITHOUT CHIP CONVEYOR)
COOLANT SYSTEM WITH GRUNDFOS 3/4HP COOLANT PUMPT
ELECTRICAL CABINET HEAT EXCHANGER
The Goodway GLS-200 High-Speed CNC Turning Center is a precision-engineered machine tool designed to deliver superior performance, accuracy, and reliability for modern manufacturing. Built with a thermally balanced one-piece MEEHANITE® casting and a 30-degree slant bed design, the GLS-200 provides exceptional rigidity and vibration damping, ensuring long-term machining accuracy and extended tool life. Powered by a 15 kW (20 HP) spindle motor with 4,500 rpm speed and P4-class super-precision bearings, this CNC lathe offers outstanding torque and smooth performance for heavy-duty turning applications. Its 8-inch hydraulic chuck and 65 mm bar capacity make it ideal for a wide range of precision machining tasks in industries such as automotive, aerospace, and general engineering.
The GLS-200’s 12-station servo-driven turret ensures fast indexing in just 0.2 seconds, while optional live tooling and Y-axis capabilities enable complex milling, drilling, and contouring operations in a single setup, reducing cycle time and increasing productivity. Equipped with the advanced FANUC Oi-TF Plus CNC control system, this high-speed turning center features a 10.4-inch color LCD, 3D cutting simulation, manual guide programming, and intelligent load monitoring for easy setup and enhanced operational efficiency. The machine’s linear guideways deliver high-speed, smooth movement up to 30 m/min, supported by an automatic lubrication system, fully enclosed splashguards, and optional high-pressure coolant system for a clean, reliable production environment. With available automation options such as bar feeders, parts conveyors, and gantry loaders, the Goodway GLS-200 CNC lathe offers unmatched versatility and productivity for high-precision, high-volume machining operations.
Key Features:
• High-speed machining with up to 30 m/min rapids.
• Durable construction: 30° slant bed and Meehanite casting for increased rigidity.
• Optional live tooling, C-axis, and Y-axis for versatile turning and milling applications.
• Precision control with rigid tapping and direct belt-drive spindle system.
• Designed for long-term high precision and extended tool life.
• Enhanced safety: Fully enclosed splashguards and auto lubrication system.
Metric
| Max Swing Diameter | 500 mm |
| Swing Over Saddle | 310 mm |
| Max Turning Diameter | 280 mm |
| Max Turning Length | 500 mm |
| Standard Chuck Size | 203.2 mm |
| Standard Bar Capacity | 65 mm |
| Hole through spindle | 76 mm |
| Spindle Bearing Diameter | 110 mm |
| Spindle Nose | A2-6 |
| Spindle Speed | 4,500 RPM |
| CN Control | FANUC 0i-TF PLUS |
FANUC 0i-TD CONTROL WITH 10.4" LCD SCREEN
FANUC MANUAL GUIDE-I
FANUC ALPHA P22 SPINDLE MOTOR 11/15KW
LINEAR GUIDEWAYS ON ALL AXIS
8" HYDRAULIC CYLINDER
STANDARD 12 STATION SERVO TURRET
STANDARD TOOL HOLDER AND SLEEVE PACKAGE
RENISHAW TOOL MEASURING SYSTEM
FULLY ENCLOSED GUARDING
DOOR INTERLOCK TAILSTOCK STROKE OUT-END CHECK
CHUCK CYLINDER STROKE OUT-END CHECK CHUCK CYLINDER CHECK VALVE
LOW HYDRAULIC PRESSURE DETECTION SWITCH OVER TRAVEL ( SOFT LIMIT )
CHIP DRAWER (WITHOUT CHIP CONVEYOR)
COOLANT SYSTEM WITH GRUNDFOS 3/4HP COOLANT PUMPT
ELECTRICAL CABINET HEAT EXCHANGER
