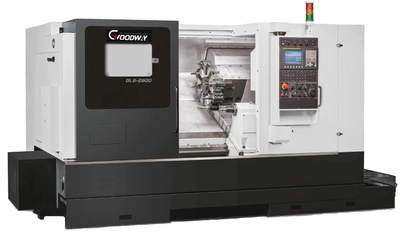

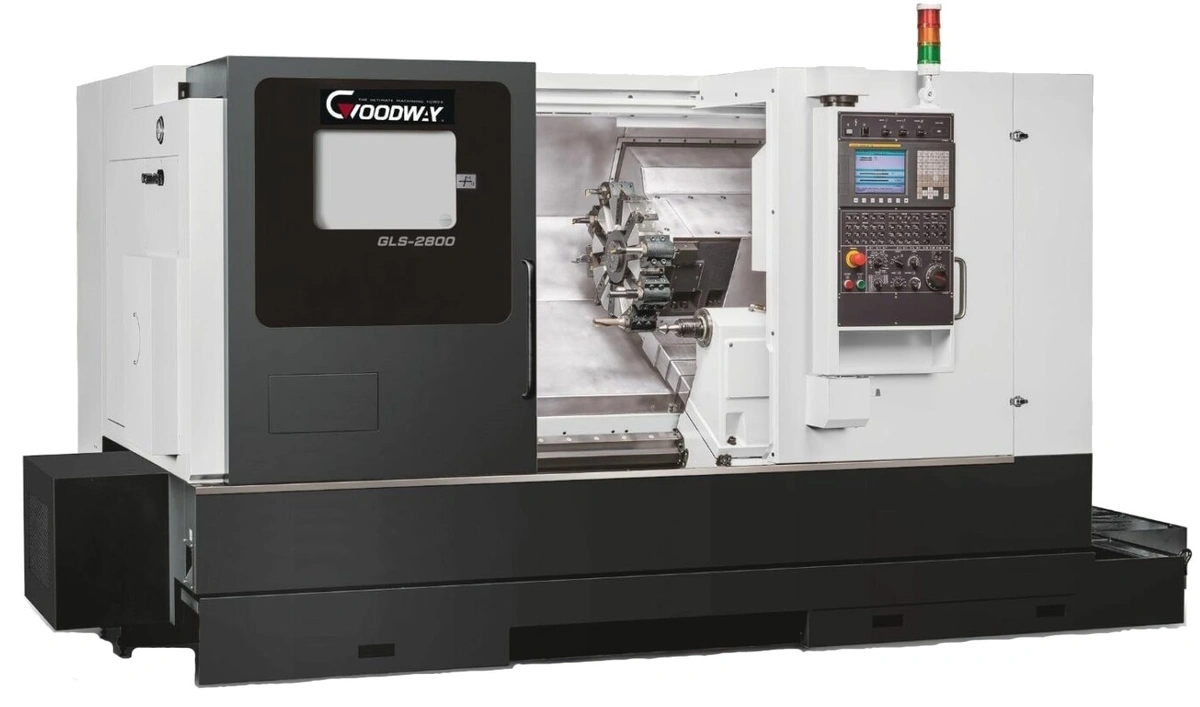

GOODWAY GLS-2800YS Turning Center
ConditionNew
New
With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GLS series high-speed CNC turning center. Using 2 types of beds combined with super rigidity, high-speed turning capability, and compact size provides you with super-efficiency cutting power. The GLS series equipped with an optional live tooling turret, Y-axis, and sub-spindle can work on turning, milling, and drilling tasks at the same time to increase the output capacity with high-end value to meet your needs of today and tomorrow.
Key Features:
• 30˚ slant-bed design provides smooth chip disposal and easier operator access.
• Steel way covers and special steel wipers molded with industrial-strength rubber are used for durability.
• Fully enclosed splash guards keep chips and coolant contained for a safe clean working environment.
The auto lubrication system delivers metered amounts of lubrication to the slideways, ball screws, and vital components. Distribution is automatically shut off during idling to prevent waste.
MITSUBISHI M80 CONTROL
FANUC ALPHA SPINDLE & SERVO DRIVES
DUAL SPINDLE SPEED CONFIGURATION
GUIDE WAY: LINEAR GUIDE WAYS
3,500 RPM DIRECT BELT DRIVEN SPINDLE
FANUC AC 20 HP (CONT.), 25 HP (30 MIN.), 30 HP (PEAK) DUAL WINDING SPINDLE MOTOR
10” 3-JAW THROUGH-HOLE (78 MM) BIG-BORE POWER CHUCK INCLUDING ONE SET OF SOFT
JAWS & ONE SET OF HARD JAWS
Y AXIS TRAVEL 3.93” (100 MM) WITH FANUC AC 3.6 HP SERVO MOTOR
12 STATION LIVE SERVO TURRET (7.5 HP, 6,000 RPM, ER-32) WITH 1” OD AND 1-1/2” ID
TOOLING SHANK
1 X 0° LIVE TOOL HOLDERS (COLLET: ER-32)
1 X 90° LIVE TOOL HOLDERS (COLLET: ER-32)
X/Z AXIS FANUC AC 3.6 HP SERVO MOTOR WITH ABSOLUTE ENCODER
SUB SPINDLE: 5,000 RPM WITH 2” (51 MM) BAR CAPACITY
SUB SPINDLE CHUCK 8” 3-JAW 2” (51 MM) BAR CAPACITY POWER CHUCK INCLUDING ONE SET
OF SOFT JAWS AND ONE SET OF HARD JAWS
PARTS CATCHER AND EXTERNAL PARTS CONVEYOR
PNEUMATIC PARTS EJECTOR WITH COOLANT THROUGH SUB-SPINDLE
SMART CHUCK SENSOR FOR MAIN & SUB-SPINDLE
FULL CF AXIS WITH DISK BRAKE ON MAIN SPINDLE
RENISHAW MANUAL TOOL SETTER (HPRA) FOR MAIN & SUB SPINDLE
94 PSI HIGH PRESSURE COOLANT PUMP (MTH 2-50/5)
ROLL-OUT COOLANT TANK
CHIP CONVEYOR WITH AUTO TIMER, HINGE TYPE, RIGHT DISCHARGE, DISCHARGE HEIGHT:
47”
OIL SKIMMER
FULLY ENCLOSED GUARDING
DOOR INTERLOCK
HYDRAULIC PRESSURE SAFETY SWITCH
PROGRAM PROTECT
CHUCK CLAMP/UNCLAMP CONFIRMATION
THREE COLOR OPERATION STATUS SIGNAL LIGHT TOWER
TOOL BOX WITH EMERGENCY MAINTENANCE ELECTRICAL PART PACKAGE
OPERATION AND MAINTENANCE MANUALS
With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GLS series high-speed CNC turning center. Using 2 types of beds combined with super rigidity, high-speed turning capability, and compact size provides you with super-efficiency cutting power. The GLS series equipped with an optional live tooling turret, Y-axis, and sub-spindle can work on turning, milling, and drilling tasks at the same time to increase the output capacity with high-end value to meet your needs of today and tomorrow.
Key Features:
• 30˚ slant-bed design provides smooth chip disposal and easier operator access.
• Steel way covers and special steel wipers molded with industrial-strength rubber are used for durability.
• Fully enclosed splash guards keep chips and coolant contained for a safe clean working environment.
The auto lubrication system delivers metered amounts of lubrication to the slideways, ball screws, and vital components. Distribution is automatically shut off during idling to prevent waste.
Metric
| Max Swing Diameter | 29.921" |
| Swing Over Saddle | 17.323" |
| Max Turning Diameter | 15.748" |
| Max Turning Length | 28.347" |
| Chuck Size | 254 mm |
| Bar Capacity | 2.9528" |
| Hole Through Spindle | 3.5433" |
| Hydraulic Cylinder | 254 mm |
| Spindle Nose | A2-8 |
| Spindle Speed | 3,500 RPM |
| Live Tooling Stations | 12 |
| Live Tooling RPM Range | 6000 RPM |
| Y-Axis Travel (±) | 1.9685" |
| X/Y-Axis Rapids | 12 m/min |
| Sub-Spindle Chuck Size | 203.2 mm |
| Sub-Spindle Nose | A2-6 |
| Sub-Spindle Speed Range | 5,000 RPM |
| CN Control | Mitsubishi M80 |
MITSUBISHI M80 CONTROL
FANUC ALPHA SPINDLE & SERVO DRIVES
DUAL SPINDLE SPEED CONFIGURATION
GUIDE WAY: LINEAR GUIDE WAYS
3,500 RPM DIRECT BELT DRIVEN SPINDLE
FANUC AC 20 HP (CONT.), 25 HP (30 MIN.), 30 HP (PEAK) DUAL WINDING SPINDLE MOTOR
10” 3-JAW THROUGH-HOLE (78 MM) BIG-BORE POWER CHUCK INCLUDING ONE SET OF SOFT
JAWS & ONE SET OF HARD JAWS
Y AXIS TRAVEL 3.93” (100 MM) WITH FANUC AC 3.6 HP SERVO MOTOR
12 STATION LIVE SERVO TURRET (7.5 HP, 6,000 RPM, ER-32) WITH 1” OD AND 1-1/2” ID
TOOLING SHANK
1 X 0° LIVE TOOL HOLDERS (COLLET: ER-32)
1 X 90° LIVE TOOL HOLDERS (COLLET: ER-32)
X/Z AXIS FANUC AC 3.6 HP SERVO MOTOR WITH ABSOLUTE ENCODER
SUB SPINDLE: 5,000 RPM WITH 2” (51 MM) BAR CAPACITY
SUB SPINDLE CHUCK 8” 3-JAW 2” (51 MM) BAR CAPACITY POWER CHUCK INCLUDING ONE SET
OF SOFT JAWS AND ONE SET OF HARD JAWS
PARTS CATCHER AND EXTERNAL PARTS CONVEYOR
PNEUMATIC PARTS EJECTOR WITH COOLANT THROUGH SUB-SPINDLE
SMART CHUCK SENSOR FOR MAIN & SUB-SPINDLE
FULL CF AXIS WITH DISK BRAKE ON MAIN SPINDLE
RENISHAW MANUAL TOOL SETTER (HPRA) FOR MAIN & SUB SPINDLE
94 PSI HIGH PRESSURE COOLANT PUMP (MTH 2-50/5)
ROLL-OUT COOLANT TANK
CHIP CONVEYOR WITH AUTO TIMER, HINGE TYPE, RIGHT DISCHARGE, DISCHARGE HEIGHT:
47”
OIL SKIMMER
FULLY ENCLOSED GUARDING
DOOR INTERLOCK
HYDRAULIC PRESSURE SAFETY SWITCH
PROGRAM PROTECT
CHUCK CLAMP/UNCLAMP CONFIRMATION
THREE COLOR OPERATION STATUS SIGNAL LIGHT TOWER
TOOL BOX WITH EMERGENCY MAINTENANCE ELECTRICAL PART PACKAGE
OPERATION AND MAINTENANCE MANUALS
