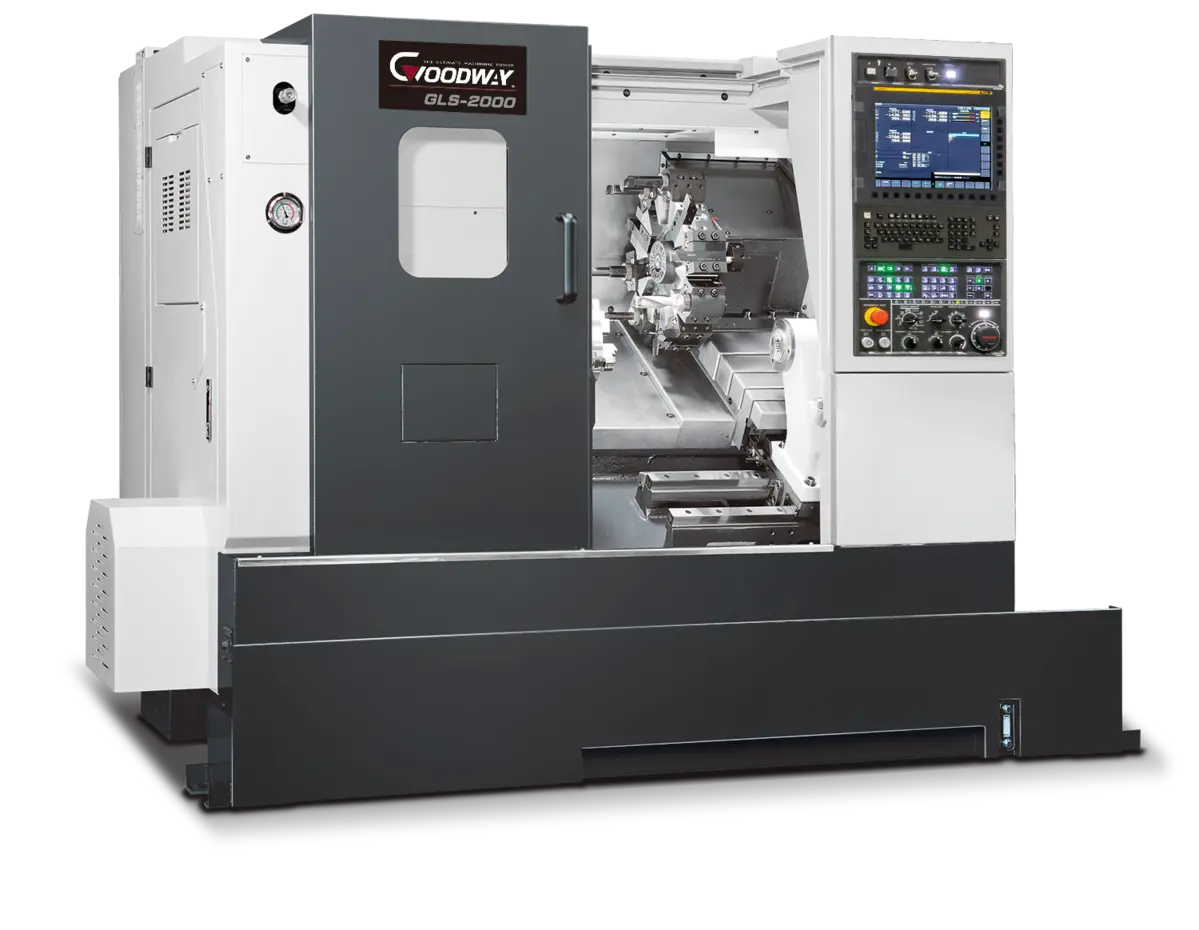

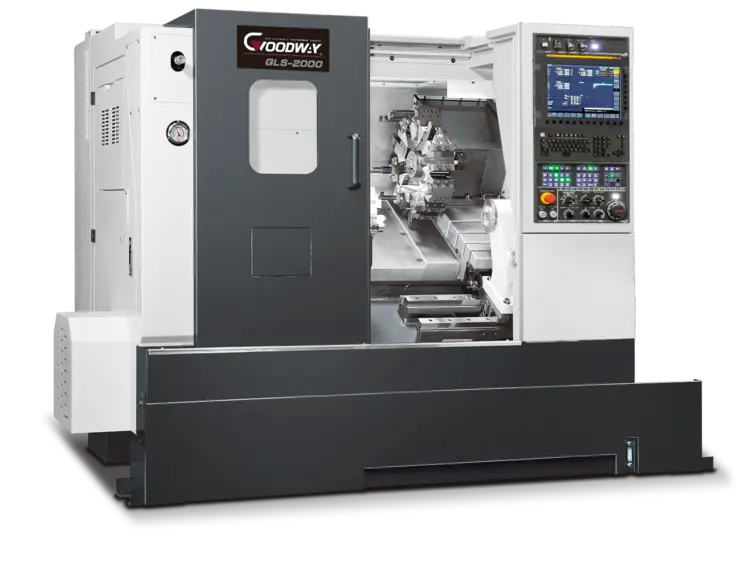

GOODWAY GLS-2000Y HIGH SPEED CNC TURNING CENTER
ConditionNew
New
With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GLS series high-speed CNC turning center. Using 2 types of beds combined with super rigidity, high-speed turning capability, and compact size provides you with super-efficiency cutting power. The GLS-1500 series equipped with an optional live tooling turret, Y-axis, and sub-spindle can work on turning, milling, and drilling tasks at the same time to increase the output capacity with high-end value to meet your needs of today and tomorrow.
Key Features:
• 30˚ slant-bed design provides smooth chip disposal and easier operator access.
• Steel way covers and special steel wipers molded with industrial-strength rubber are used for durability.
• Fully enclosed splash guards keep chips and coolant contained for a safe clean working environment.
The auto lubrication system delivers metered amounts of lubrication to the slideways, ball screws, and vital components. Distribution is automatically shut off during idling to prevent waste.
FANUC 0i-TD w/ 10.4" LCD SCREEN
MANUAL GUIDE i
8" HYDRAULIC CYLINDER
DUAL PRESSURE CHUCKING CONTROL BY M CODE
1° INDEXING WITH DISK BRAKE ON MAIN SPINDLE
CS-AXIS WITH DISK BRAKE ON MAIN SPINDLE
5" CHUCK SIZE SUB-SPINDLE WITH CYLINDER INCL. PARTS EJECTOR
Y-AXIS
GOODWAY 12 STATION LIVE TOOLING TURRET
INCLUDING 2 EACH 0 & 90° DRIVEN TOOL HOLDER (CY-DCD0) ER-25
FANUC ALPHA P22 SPINDLE MOTOR 11/15KW
RIGID TAPPING
SPINDLE ORIENTATION
TAIWAN MADE LINEAR GUIDWAYS ON ALL AXES
FANUC ABSOLUTE ENCODER AC SERVO DRIVE MOTORS
C3 CLASS BALL SCREWS WITH PRETENSION ON ALL AXES
COOLANT SYSTEM WITH UPGRADED 7 BAR COOLANT PUMP
HYDRAULIC SYSTEM
FULLY ENCLOSED SPLASH COVERS
ADVANCE AUTO LUBRICATION SYSTEM
TRI-COLOR SIGNAL TOWER(YELLOW/RED/GREEN)
HIGH INTESITY WORK LIGHT
M CODE AUTOMATIC POWER OFF
FOOT SWITCH FOR CHUCK
RS-232 INTERFACE
ELECTRIC CABINET HEAT EXCHANGER
FOUNDATION AND LEVELING KIT/MAINTENANCE TOOL KIT
OPERTION & MAINTENANCE MANUALS
UPGRADED CHIP CONVEYOR HEIGHT 1200MM
CHIP CART
AIR BLOW FOR MAIN SPINDLE CHUCK
COOLANT ABOVE MAIN SPINDLE CHUCK
COOLANT PISTOL WITH PIPE CONTROL BY M CODE
OIL SKIMMER
COOLANT PRESSURE SWITCH
COOLANT LEVEL SWITCH
PARTS CATCHER
LOAD MONITORING SYSTEM
EXTRA 8 M CODE
BAR FEEDER INTERFACE (BAR FEEDER NOT INCLUDED)
