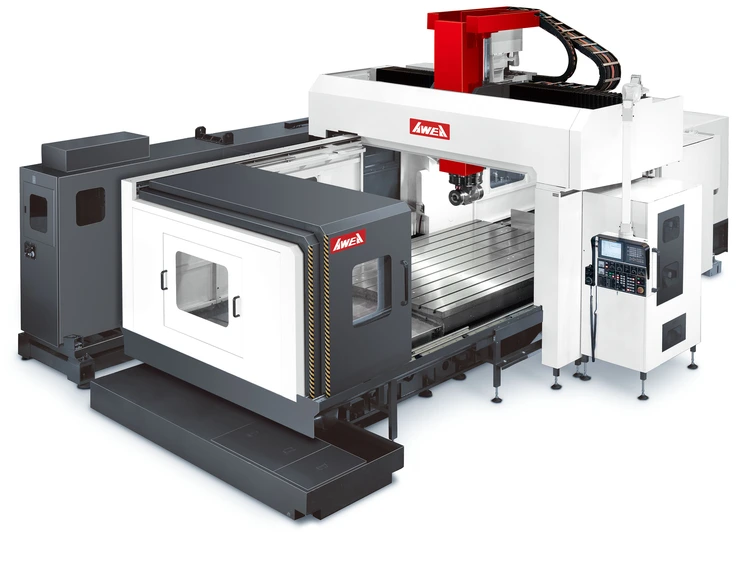

AWEA LP-3021YZF BRIDGE TYPE MACHINING CENTER

1.888.565.8807
sales@megatelcnc.com
ConditionNew

Document (1)

AWEA SP-LP Brochure_EN.pdf

Overview

Type:
Bridge (Double Column) Vertical Milling Center
Manufacturer:
AWEA
Model:
LP-3021/YZF
Condition:
Build To Order
Status:
For Sale

Description

AWEA is pleased to introduce the LP series bridge-type vertical machining centers with advanced machining abilities and progressive technology skills. The LP series bridge-type vertical machining centers combine strong spindle power and a super rigid machine structure with high-quality automation equipment. The full product line provides high efficiency and high productivity machining capabilities. The LP series can be broadly applied in the automotive, precision mold, aerospace, and energy industries. The LP series can be equipped with an automatic head changer and a vertical/horizontal ATC system, turning it into a 5-face machining center and providing more cutting flexibility to meet your demands of today and tomorrow.

Key Highlights:

Double-column machining center from Awea.
Super rigidity roller-type linear guideways on X, and Y axes offer heavy-duty cutting, fast movement, and low abrasion capabilities.
Rigid and stable construction fully supports AWEA’s promise of performance.
High-speed drilling applications.
One-piece bridge & base casting structure.

X-Axis Travel118.11"3,000 mm
Y-Axis Travel82.677"2,100 mm
Optional Y-Axis Travel3,200 MM3,200 MM
Z-Axis Travel29.921"760 mm
Optional Z-Axis Travel1,000 | 1,200 | 1,400 MM1,000 | 1,200 | 1,400 MM
Distance Between Column90.551"2,300 mm
Distance from spindle nose to table top37.795"960 mm
Optional Distance from spindle nose to table top1,200 | 1,400 | 1,600 MM1,200 | 1,400 | 1,600 MM
Table Size-X118.9"3,020 mm
Table Size-Y79.134"2,010 mm
Table Load Capacity22,046.2 lb10,000 kg
Standard Spindle TaperCAT50CAT50
Standard Spindle Speed6,000 RPM6,000 RPM
Optional Spindle Speed6,000 | 8,000 | 10,000 | 12,000 RPM6,000 | 8,000 | 10,000 | 12,000 RPM
ATC3232
Optional ATC40 / 60 / 90 / 12040 / 60 / 90 / 120
# Axis33
CN ControlFanuc 31iMFFanuc 31iMF

FANUC 31-iMF WITH 15" LCD SCREEN
FANUC 31-iMF WITH MANUAL GUIDE i
Z-AXIS UPGRADED TO 1,000 MM
6,000 RPM GEARBOX SPINDLE SPEED, CAT50 DUAL CONTACT BIG PLUS
40 TOOLS ATC, CHAIN TYPE, VERTICAL AND HORIZONTAL TOOL CHANGE
70 BAR, COOLANT THROUGH SPINDLE
ALLCOOL R1000, WITH CTS TANK, MANUAL PRESSURE ADJ., DUAL FILTERS
ROOF ENCLOSED SPLASH GUARD
Y AXIS EXTENDED TO 2,800 MM (LP3021Y)
F OPTION (ONE AUTO 90° HEAD AT 5° INDEXING, 4,500 RPM, HEAD STORAGE COMPARTMENTS, HORIZONTAL/VERTICAL ATC WITH COOLANT THROUGH SPINDLE
ADD TWO FLUORESCENT LIGHTS.
ISOLATED TRANSFORMER (600VAC, 60HZ, CUL STANDARD)
CSA COMPONENTS
CATERPILLAR-TYPE CHIP CONVEYOR
TWIN COIL TYPE CHIP AUGERS.
ELECTRIC CABINET HEAT EXCHANGER
