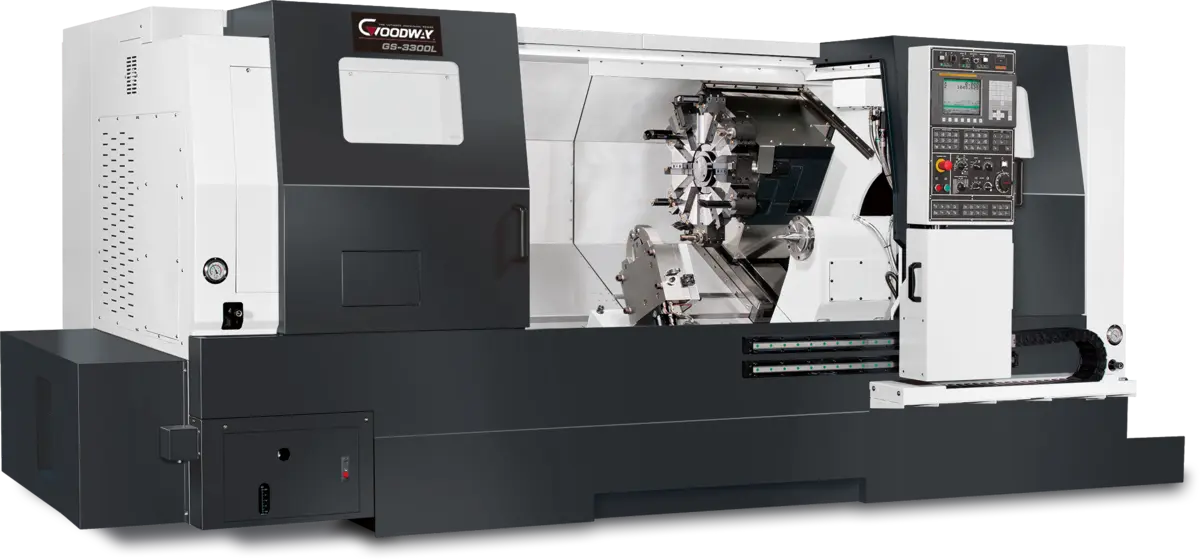

GOODWAY GS-3300 TURNING CENTER
ConditionNew
New
Packed with industry leading technology and top quality components, the Goodway GLS series turning centers combine power, strength and speed to bring you The Ultimate Machining Power. These high speed machines will easily accomplish the demanding turning applications of today and tomorrow. Furthermore, with optional live tooling, C-axis, and Y-axis, milling, turning applications can be completed in one single machine.
Key Features:
*30 º slant-bed designs provide smooth chip disposal and easier operator access.
* Steel way covers and special steel wipers molded with industrial strength rubber are used for durability.
*Fully enclosed splashguards keep chips and coolant contained for a safe clean working environment.
* The auto lubrication system delivers metered amounts of lubrication to the slide ways, ball screws and vital components. Distribution is automatically shut off during idling to prevent waste.
12 STATION SERVO TURRETS
FAGOR 8065
90 MM BAR CAPACITY (3.54")
SPINDLE DRIVE 35HP
12" HYDRAULIC CYLINDER
12 ‘’ CHUCK 3-JAW CHUCK WITH SOFT JAWS AND HARD JAWS
30 M/MIN RAPIDS ON X/Z AXES
CHIP CONVEYOR 1200MM HEIGHT
10 BAR COOLANT PUMP,
RIGID TAPPING
SPINDLE ORIENTATION
FANUC ABSOLUTE ENCODER AC SERVO DRIVE MOTORS
HYDRAULIC SYSTEM
FULLY ENCLOSED SPLASH COVERS
ADVANCE AUTO LUBRICATION SYSTEM
TRI-COLOR SIGNAL TOWER(YELLOW/RED/GREEN)
HIGH INTENSITY WORK LIGHT
M CODE AUTOMATIC POWER OFF
FOOT SWITCH FOR CHUCK
