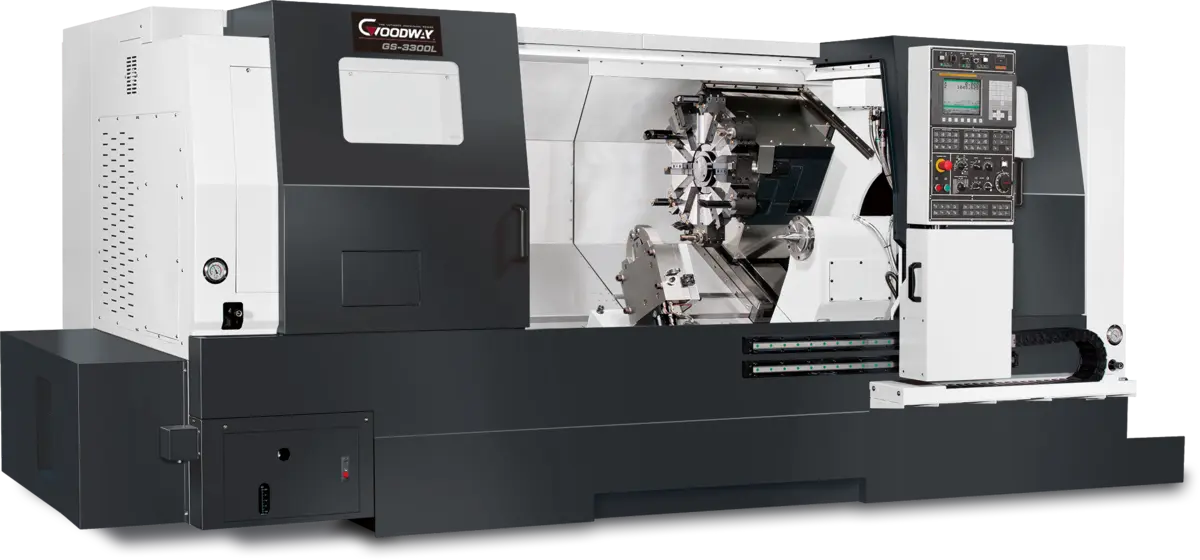

GOODWAY GS-3300/L TURNING CENTER
ConditionNouveau
1 disponible
Nouveau
Packed with industry leading technology and top quality components, the Goodway GLS series turning centers combine power, strength and speed to bring you The Ultimate Machining Power. These high speed machines will easily accomplish the demanding turning applications of today and tomorrow. Furthermore, with optional live tooling, C-axis, and Y-axis, milling, turning applications can be completed in one single machine.
Key Features:
*30 º slant-bed designs provide smooth chip disposal and easier operator access.
* Steel way covers and special steel wipers molded with industrial strength rubber are used for durability.
*Fully enclosed splashguards keep chips and coolant contained for a safe clean working environment.
* The auto lubrication system delivers metered amounts of lubrication to the slide ways, ball screws and vital components. Distribution is automatically shut off during idling to prevent waste.
FANUC 0i-TF PLUS WITH 10.4” COLOR LCD
RIGID TAPPING AND SPINDLE ORIENTATION
FANUC ALPHA SPINDLE MOTOR AND SERVO DRIVES
X / Z AXIS SERVO MOTOR: FANUC ALPHA SERVO MOTOR 6 HP
FANUC 25 HP (CONT.), 30 HP (30 MIN), 35 HP (PEAK) SPINDLE MOTOR
3,000 RPM, 2-SPEED SPINDLE MOTOR CONFIGURATION
12” HOLLOW 3-JAW CHUCK WITH ONE SET OF SOFT AND HARD JAWS
12-STATION STANDARD SERVO TURRET WITH 1” OD & 1-1/2” ID TOOL SHANK
RENISHAW MANUAL TOOL SETTER HPRA FOR MAIN SPINDLE
HALF MOON TYPE MANUAL STEADY REST WITH HYDRAULIC BASE (1.18" ~ 7.08")
ZF GEAR BOX
SMART CHUCK SENSOR
PROGRAMMABLE HYDRAULIC TAILSTOCK & NON-ROTATING TYPE QUILL (MT#5) (LIVE CENTER IS NOT INCLUDED)
CHIP CONVEYOR WITH AUTO TIMER, HINGE TYPE, RIGHT DISCHARGE, 47” DISCHARGE HEIGHT
GRUNDFOS 132 PSI COOLANT PUMP (MTH 2-70/7)
AUTOMATIC LUBRICATION SYSTEM
OIL SKIMMER
COOLANT TANK
HYDRAULIC SYSTEM
ELECTRIC CABINET HEAT EXCHANGER
WORK LIGHT
THREE COLOR OPERATION STATUS SIGNAL LIGHT TOWER
LEVELING BOLT AND LEVELING PAD
TOOL BOX WITH EMERGENCY MAINTENANCE ELECTRICAL PART PACKAGE
STANDARD TOOL HOLDER AND SLEEVES PACKAGE
OPERATION AND MAINTENANCE MANUALS, PARTS LIST AND ELECTRICAL DRAWINGS
FACTORY TEST REPORT
FULLY ENCLOSED GUARDING
DOOR INTERLOCK
HYDRAULIC PRESSURE SAFETY SWITCH
PROGRAM PROTECT,
CHUCK CLAMP/UNCLAMP CONFIRMATION
