MFT 1000EVO - GUN DRILL TOOL

Description

SINGLE-SPINDLE - GUN DRILL TOOL
CNC Deep Hole Drilling Machine for cylindrical parts, on-center holes

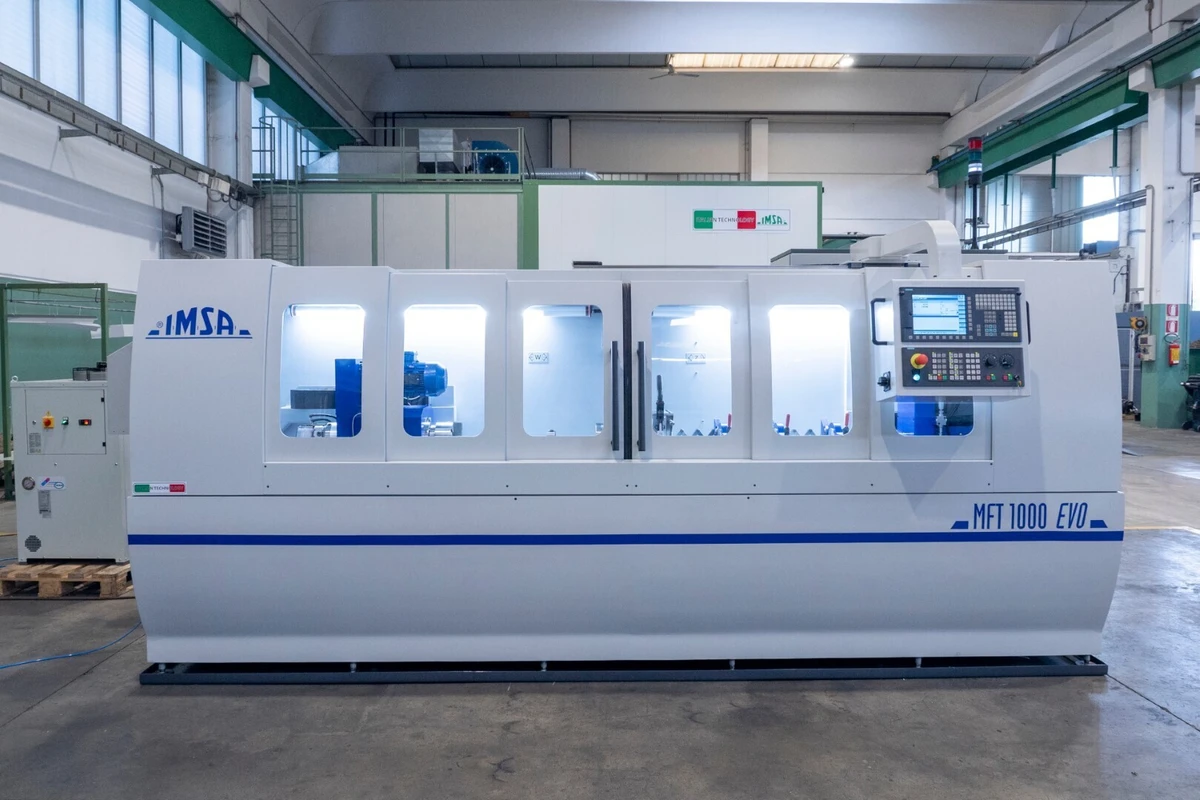

The IMSA deep hole drilling machine MFT 1000EVO is dedicated to cylindrical workpieces that have to be drilled on their rotation axis. Drilling depth in single operation: 160x diameter until a maximum of 1000mm. Hole diameter range 4 – 25 mm. Some applications: transmission shafts, gear shafts, lubricators, valves, in general all round workpieces that have to be drilled on-center.

Deep drilling method: gun drill tool. Drilling spindle: 9 kW, 6.000 rpm.

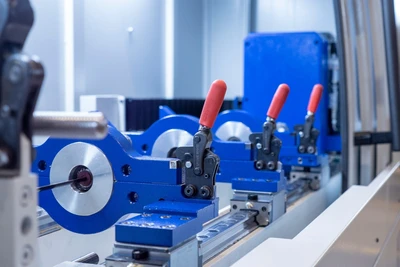

The workpiece is in counter-rotation in respect to the gun drill, in order to obtain the maximal drill straightness and process speed.
Specific IMSA functions to control the deep drilling process:
– Electronic check of cutting parameters,
– Double electronic check against gundrill-breaking, by reading the cutting effort.
Temperature, pressure and oil cleanliness are fundamental parameters to ensure continuous trouble-free gun drilling operations. The IMSA MFT 1000EVO deep hole drilling machine is equipped with the best solutions that automatically manage these three parameters to the most suitable value:
– high-pressure pump managed by inverter;
– for oil clarification: a complete 3-level filtering system;
– for oil cooling: a heat exchanger (chiller).

The MFT 1000 EVO version manages oil pressure and flow though inverter; moreover this EVO version enables a very quick setup thanks to full-cnc movements.
