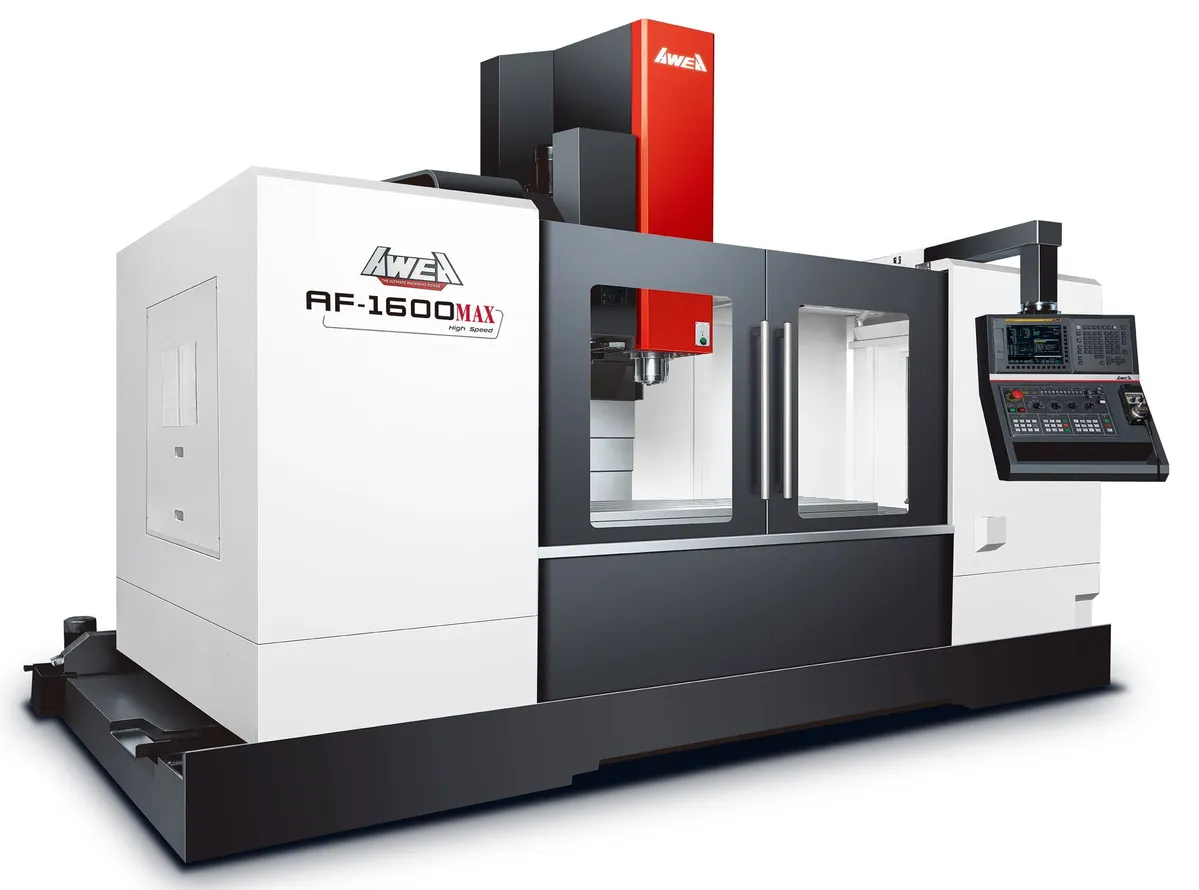

AWEA AF-1600II VERTICAL MACHINING CENTER

Description

Introducing AWEA with mature manufacturing abilities and advanced technology skills, the AF-II series. They are based on a high rigidity structure and three axes high precision linear guideway design with fast arm type ATC and chip conveying system. It is to provide you with fast, strong, stable machining performance. AF-II series are broadly used in high precision machine parts manufacturers, which can easily meet your demands of today and tomorrow.

Key Features:

• High-precision linear guideway design is used on three axes to provide optimum control and efficient movement. Also, based on the actual machining application, customers can either select roller type or ball type linear guideway.
• The rotary operation panel and the large width of the protection door provide a convenient operation display and spacious space for loading and unloading parts.
High Rigidity Structure
• The contact surface of the column and bed are all hand scraped to ensure precision assembly, strong structure, and loading balance.
• (Delta) Wide-span column structure provides optimal machining rigidity. The headstock retains stability and accuracy even under high-speed traveling.
• One-piece ball screw driving motor support and bearing support enable cutting force to spread evenly into the casting body, so it efficiently enhances the axial system of entire rigidity and prevents deformation of the ball screw.
• High rigidity roller type linear guideway which combines heavy cutting ability from ground box way and fast movement with low abrasion ability from linear guideway completely improves rigidity and control of machine
• High-precision dual-nuts ball screw provides excellent heavy cutting rigidity while ensuring machining accuracy and extending the durability of the ball screw.
• Three axial system is adopted with FANUC αi absolute AC servo motor direct drive to provide great thrust and fast acceleration/deceleration movement.
