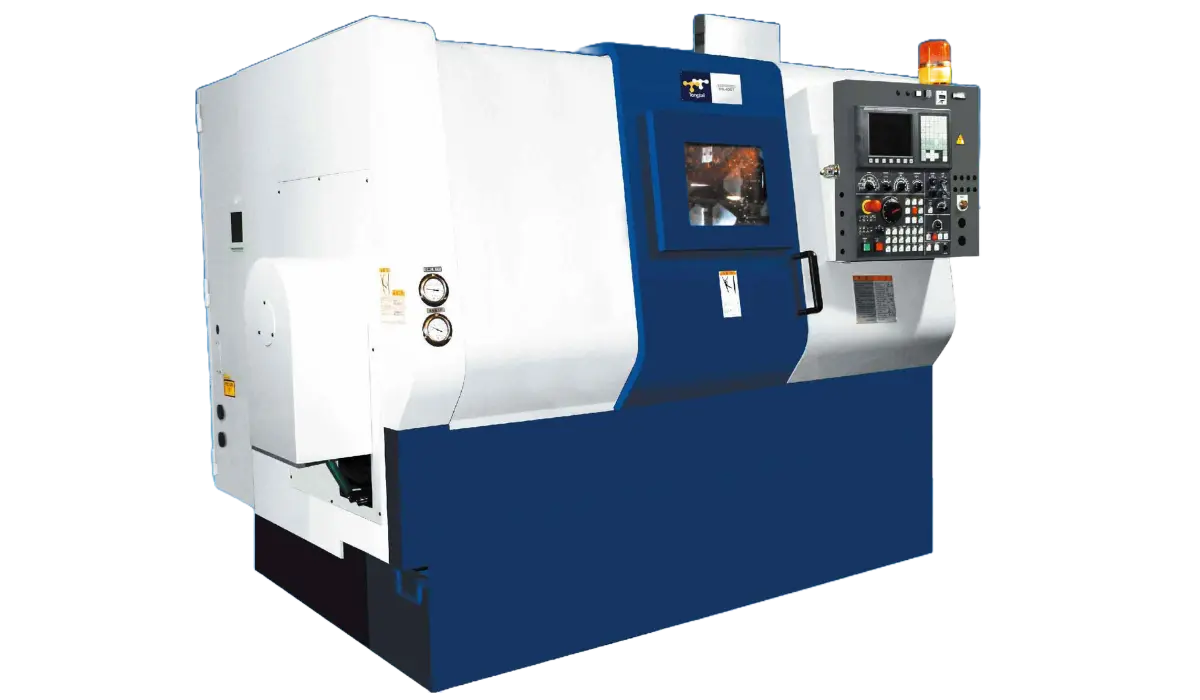

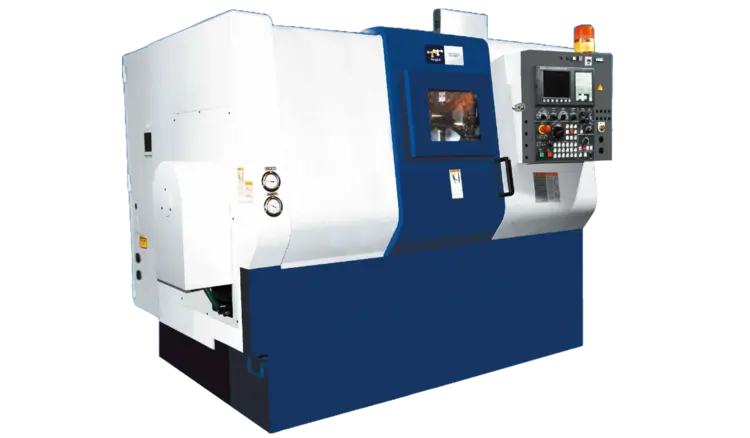

TONGTAI TNL-100TL - CNC Lathe
ConditionNew
New
New TONGTAI TNL-100TL CNC Lathe features a Max Swing Diameter of 400 mm, Spindle Speed of 4,500 RPM, Fanuc 0i-TF Plus Control with 10.4" LCD Monitor, 12-station servo turret, and a coolant unit. Ideal for precision turning tasks.
Key Features:
Perfect height - 1000 mm for part loading, spindle center only 327 mm from operator.
Vertical turret structure for easy tool adjustment.
Easy monitoring the cutting condition.
Vertical design saddle for X Axis, high rigidity and perfect for heavy turning
Excellent design for chip flow.
Rectangle design for best precision control.
FANUC 0i-TF PLUS CONTROL W/ 10.4" LCD MONITOR
MANUAL GUIDE i
X/Z-AXIS STROKE 200/600 mm (LINEAR GUIDE)
X/Z-AXIS RAPID TRAVERSE 20/24 M/MIN
SPINDLE MOTOR 15/11 kW (BELT TYPE)(FANUC αilp22/6000)
SPINDLE SPEED 4,500 RPM (BEARING D.100MM)
HYD. UNIT FOR CHUCK WITH AIR COOLER
SERVO TURRET 12 STATIONS
HYD. HOLLOW CHUCK 8" X 3 JAWS
TAILSTOCK STOCK 275 mm + HYDRAULIC STROKE 100mm
ELECTRICAL CABINET WITH HEAT EXCHANGER
STANDARD SPLASH GUARD
COOLANT UNIT
CHIP CONVEYOR H=1100 mm (CHAIN TYPE) WITHOUT CHIP TROLLEY
THREE COLOR WARNING LAMP
FACING TOOL HOLDER X 2 PCS
O.D TOOL GASKET X 8 PCS
I.D. TOOL HOLDER (Ø40mm) X 4 PCS
BORING SLEEVE X 6 PCS (Ø 8, 10, 12, 16, 20, 25, 32)
DRILLING SLEEVE X 3 PCS (MT#1, 2, 3)
SOFT JAW X 1 SET
CE MARK
TOOL PRESETTER (AUTO)
LHL LUBRICATION SYSTEM
TORQUE CLUTCH FOR Z AXIS
