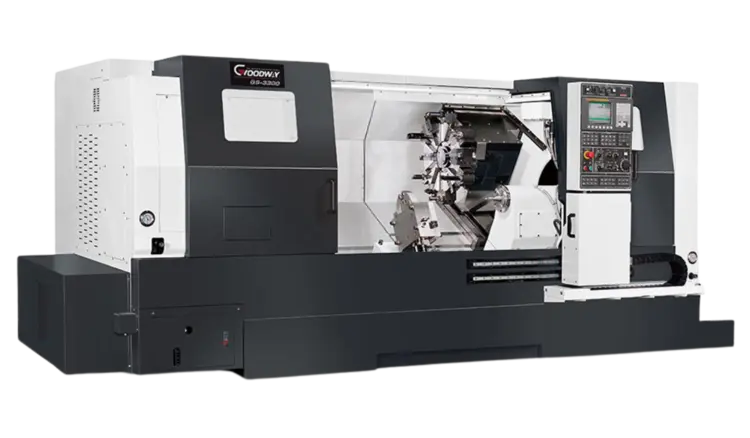

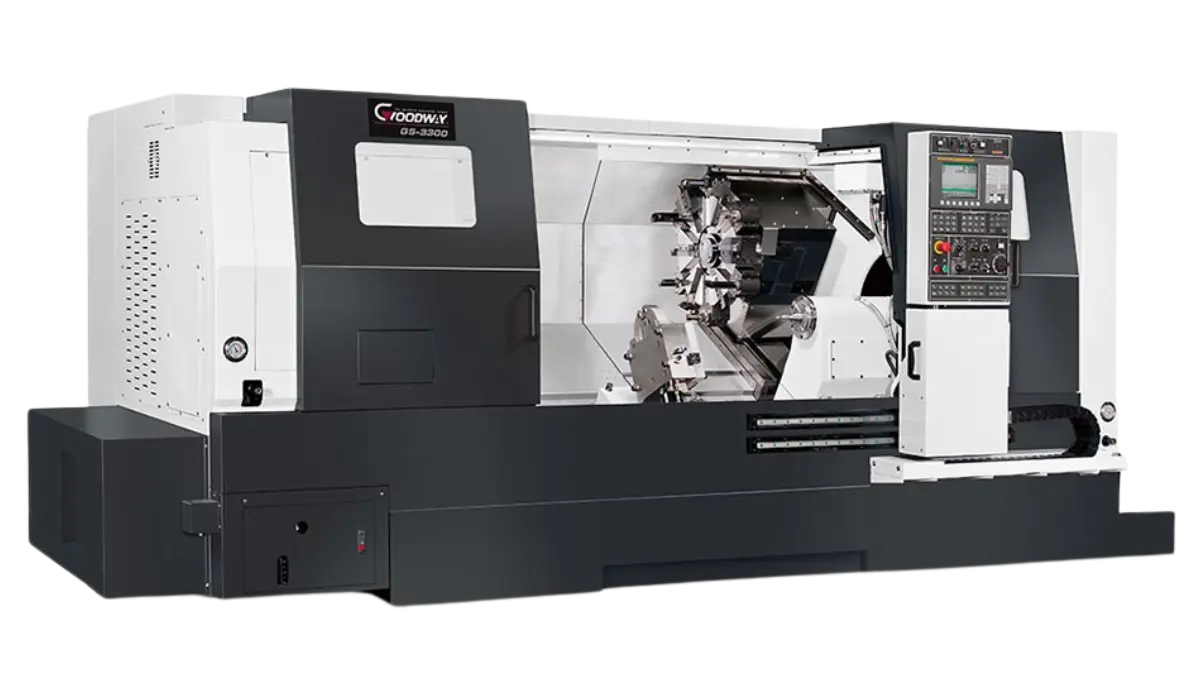

GOODWAY GS-3600L - HORIZONTAL TURNING CENTER
ConditionNew
New
With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GS series high-speed CNC turning center. Using 2 types of beds combined with super rigidity, high-speed turning capability, and compact size provides you with super-efficiency cutting power. The GS series equipped with an optional live tooling turret, Y-axis, and sub-spindle can work on turning, milling, and drilling tasks at the same time to increase the output capacity with high-end value to meet your needs of today and tomorrow.
Key Features:
*30°low center gravity slant bed ensures high rigidity of GS-3000 series.
*X / Z axes adopt box ways structure and wide span design to ensure best rigidity and precision.
*Optional high precision built-in spindle or high power belt-driven spindle to meet any processing request.
*X / Z axes are directly driven by a high-performance AC servo motor, rapid feed rate can reach up to 30 m/min.
*12-station servo index turret, adjacent and opposite tool changing only takes up to 0.3 and 0.8 sec.
* High-rigidity programmable tailstock or high-performance servo tailstock ensures the best support for the workpiece.
**PLEASE SEE ATTACHED BROCHURE FOR THE COMPLETE SPECIFICATION.
FANUC 0I-TF WITH 10.4” LCD INCLUDING MANUAL GUIDE-I
15" HYDRAULIC CYLINDER
FANUC ALPHA P40 SPINDLE MOTOR 18.55/22KW
RIGID TAPPING
SPINDLE ORIENTATION
BOX GUIDWAYS ON ALL AXES
FANUC ABSOLUTE ENCODER AC SERVO DRIVE MOTORS
LONG TYPE BED: 1,496 MM
12 STATION LIVE TOOLING TURRET (7.5KW, ER40)
2 X 0° LIVE TOOL HOLDER ER-40/EC
2 X 90° LIVE TOOL HOLDER ER-40/EC
Y-AXIS
15" 3 JAWS CHUCK WITH ONE SET EA. SOFT & HARD JAWS
HYDRAULIC TYPE LP-1 PROGRAMMABLE TAIL STOCK (BUILT IN CENTER: MT4)
UPGRADED SPINDLE WITH ZF TWO SPEED GEAR BOX
CF-AXIS WITH DISK BRAKE ON MAIN SPINDLE
AUTO RENISHAW TOOL SETTER (FOR MAIN SPINDLE) HPMA
C3 CLASS BALL SCREWS WITH PRETENSION ON ALL AXES
CHIP CONVEYOR (HINGE TYPE) WITH AUTO TIMER
UPGRADED CHIP CONVEYOR HEIGHT TO 1200MM
CHIP CART
COOLANT PISTOL WITH PIPE CONTROL BY M CODE
7 BAR COOLANT PUMP
OIL SKIMMER
COOLANT FLOW SWITCH
COOLANT LEVEL SWITCH
HYDRAULIC SYSTEM
FULLY ENCLOSED SPLASH COVERS
ADVANCE AUTO LUBRICATION SYSTEM
TRI-COLOR SIGNAL TOWER(YELLOW/RED/GREEN)
HIGH INTESITY WORK LIGHT
M CODE AUTOMATIC POWER OFF
FOOT SWITCH FOR CHUCK
RS-232 INTERFACE
ELECTRIC CABINET HEAT EXCHANGER
FOUNDATION AND LEVELING KIT/MAINTENANCE TOOL KIT
OPERATION & MAINTENANCE MANUALS
