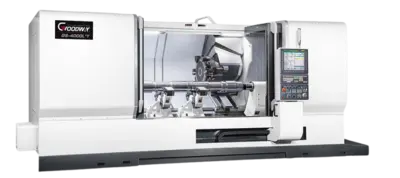

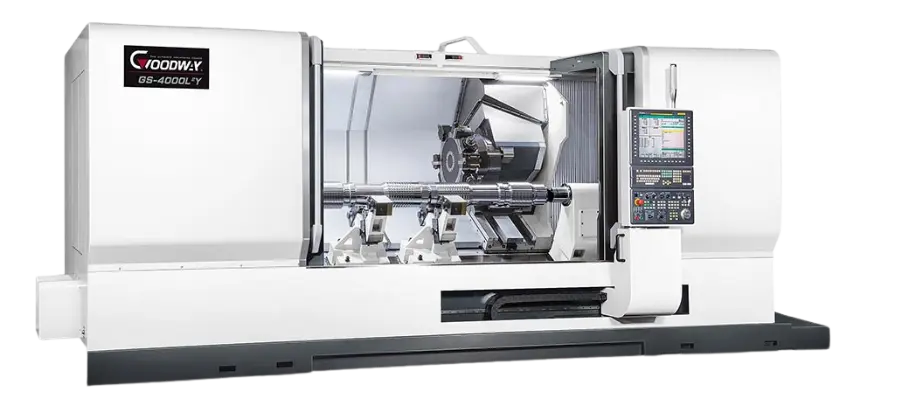

GOODWAY GS4000L CNC TURNING CENTER
ConditionNew
New
MAXIMUM PERFORMANCE CNC TURNING CENTER
For those seeking a heavy-duty maximum performance turning center that's packed with the
latest technologies, GOODWAY's GS-4000 series is the perfect answer. These machines offer
awesome turning power, with the 2-speed gear-head spindles being standard on most models.
Live tooling, Y-axis and sub-spindle models further increase machining efficiency and accuracy,
while reducing manpower. Furthermore, GOODWAY machines are always fully loaded with
standard features that are either not available or costly options found on other machines.
Features such as the chip conveyor, programmable base tailstock, turning tool holders, and many
more standards.
KEY FEATURES:
• 37 kW high horsepower spindle motor drive with 2-speed gear box design provides max. torque 2,920 Nm in 121 rpm ( GS-4300 ) which can meets any heavy cutting requirements.
• All axes guide ways are designed by high rigid box way with heat treatment and precision grinding which
provides the rigidity needed for heavy cutting.
• Option live tooling turret, sub-spindle, C-axis and Y-axis control allows GS-4000 series to perform multiple
tasks on both front and rear side of work-piece, such as turning, off-center milling, drilling and tapping. The
machining capability equals the integration of two turning center and a machining center, which all machining process can be done in one GS-4000 machine.
**Please see attached catalog for the complete specification
FAGOR Control
2-STEPS GEAR BOX
TAIWAN MADE HYDRAULIC CYLINDER FOR BAR CAPACITY 115MM
12 STATION STANDARD TURRET WITH TOOL HOLDER PACKAGE
30/37KW (CON./30MIN) FANUC SPINDLE MOTOR
RIGID TAPPING / SPINDLE ORIENTATION
WIDELY SPACED BOX WAYS ON ALL AXES
FANUC ABSOLUTE ENCODER AC SERVO DRIVE MOTORS
C3 CLASS BALL SCREWS WITH PRETENSION ON ALL AXES
CHIP CONVEYOR (HINGE TYPE) WITH AUTO TIMER
COOLANT SYSTEM WITH GRUNDFOS 1HP COOLANT PUMP
HYDRAULIC SYSTEM
FULLY ENCLOSED SPLASH COVERS
ADVANCE AUTO LUBRICATION SYSTEM FOR SLIDE WAYS AND BALL SCREWS
OIL LUBRICATION SYSTEM FOR SPINDLE BEARINGS & GEARS
TRI-COLOR LED SIGNAL TOWER(YELLOW/RED/GREEN)
HIGH INTESITY LED WORK LIGHT
M CODE AUTOMATIC POWER OFF
FOOT SWITCH FOR CHUCK
RS-232 INTERFACE RG 45, ETHERNET, SD-CARD
ELECTRIC CABINET HEAT EXCHANGER
FOUNDATION AND LEVELING KIT/MAINTENANCE TOOL KIT
OPERTION & MAINTENANCE MANUALS
INCLUDED OPTIONS:
UPGRADED to L TYPE BED (1569mm) FROM BED TURNING LENGTH 819MM
TAIWAN MADE 15" HYDRAULIC 3 JAWS CHUCK (MAX. BAR CAPACITY 115MM) INCL. 1 EA OF HARD & SOFT JAWS.
MANUAL STEADY REST (FULL MOON TYPE) +30~200MM
HYDRAULIC TYPE LP-1 PROGRAMMABLE BUILT-IN TAIL STOCK (QUILL/BODY ARE
PROGRAMMABLE) (DEAD CENTER MT5) (QUILL DIA. 110MM, QUILL TRAVEL 150MM).
CHIP CART
AIR BLOW FOR MAIN SPINDLE CHUCK (OR SUB-SPINDLE CHUCK)
COOLANT ABOVE MAIN SPINDLE CHUCK
COOLANT GUN WITH PIPE CONTROL
UPGRADED 7 BARS COOLANT PUMP INSTEAD OF 3 BARS
OIL SKIMMER
