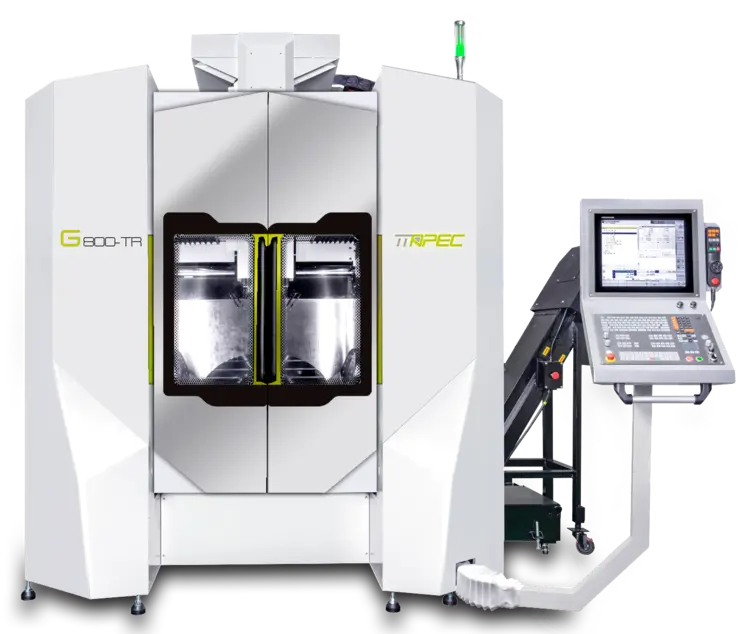

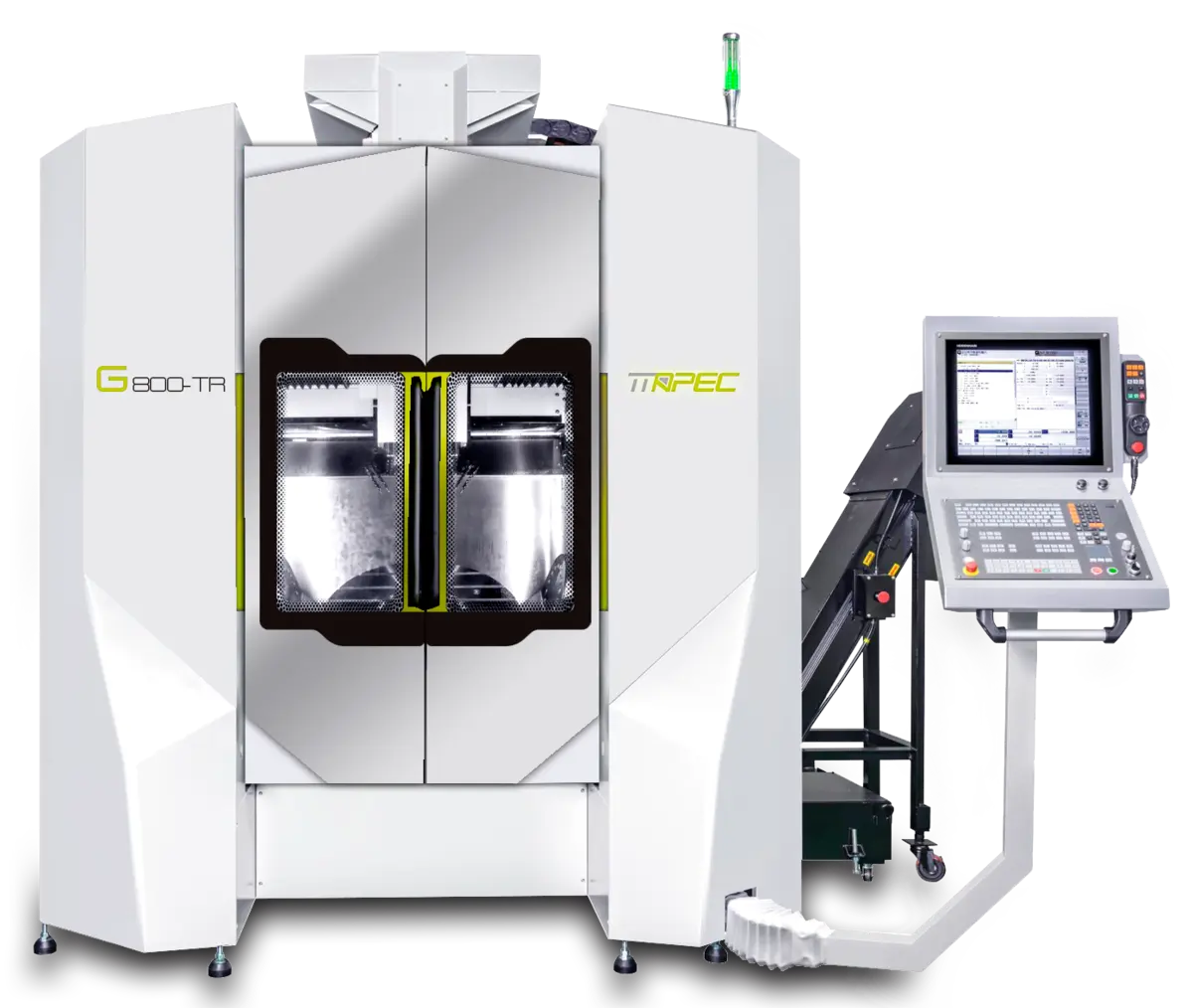

APEC G800-TR GANTRY TYPE 5-AXIS MACHINING CENTER
ConditionNew
1 available
New
The APEC G800-TR series is the ultimate solution for aerospace engine processing. Designed to exceed your machining expectations, this series offers exceptional performance and versatility to take your aerospace projects to new heights. With a rapid traverse reaching an impressive 48m/min, the APEC G800-TR series guarantees swift and efficient machining operations. The unique saddle and column closed structure minimizes vibration, ensuring superior processing stability and impeccable machining accuracy.
HEIDENHAIN TNC640 CNC CONTROLLER WITH HR510 MPG
15,000 RPM BUILT-IN SPINDLE, HSK100A (45/54 kW, 119/143 Nm)
ROTARY TILT TABLE WITH Ø800
60 TOOLS ATC MAGAZINE
X/Y/Z-AXIS WITH HIGH RIGIDITY LINEAR GUIDEWAY
X/Y/Z -AXIS WITH HEIDENHAIN OPTICAL LINEAR/CIRCULAR SCALE
OIL-AIR LUBRICATION DEVICE FOR SPINDLE
SPINDLE CHILLER
A/C-AXIS COOLANT SYSTEM WITH TORQUE MOTOR
AIR CONDITIONER FOR ELECTRICAL CABINET
COOLANT AROUND SPINDLE
STANDARD COOLANT TANK
CHAIN-TYPE CONVEYOR SYSTEM
MANUAL OPENING / CLOSING OF TOP ROOF SLIDING COVER
3-AXIS GREASE LUBRICATION SYSTEM
Z-AXIS BRAKE SYSTEM
SECURITY DOOR INTERLOCKS
WATER-PROOF LED WORKING LAMP
BLUM TOOL MEASUREMENT SYSTEM
BLUM WORKPIECE TOUCH PROBE
HEIDENHAIN KINEMATIC OPT. CALIBRATION SYSTEM WITH CERAMIC BALL SET
BLUM LASER TOOL MEASUREMENT SYSTEM
COOLANT TROUGH SPINDLE 20/70 BAR
SPINDLE AIR BLAST
ISOLATING TRANSFORMER
