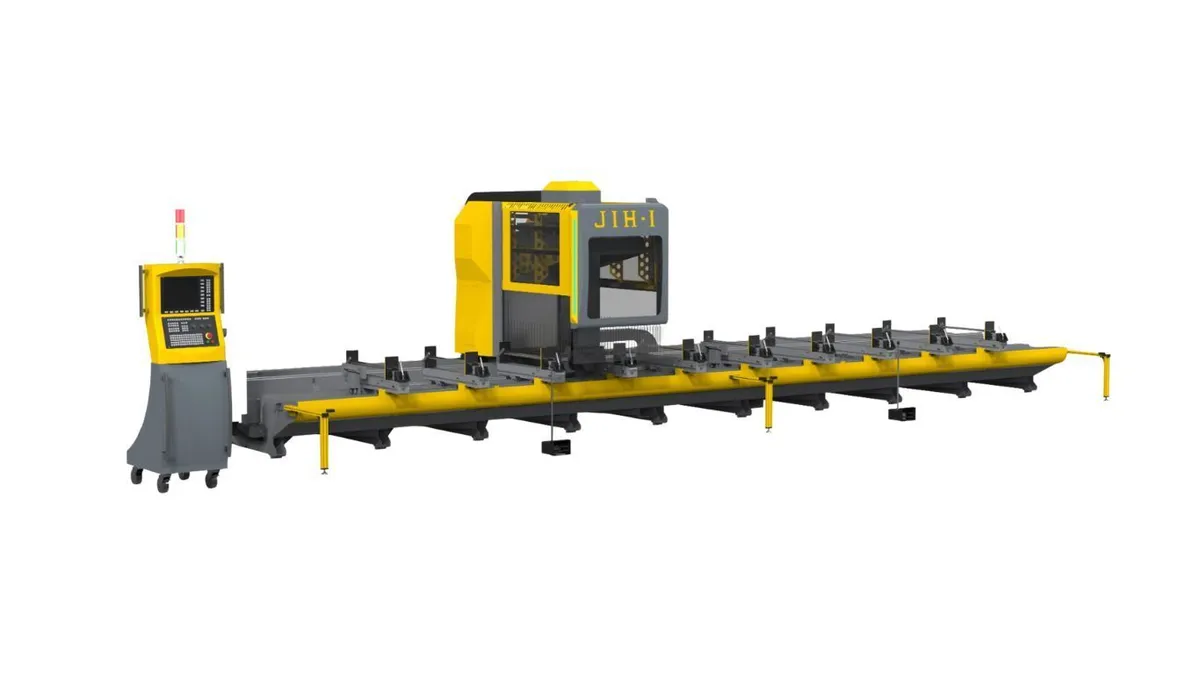

JIH-I S5 5-AXIS MACHINING CENTER
ConditionNew
New
Equipped with two-layer tool magazines for storing sawblade and cutting tools on both upper and lower magazines, featuring fast tool change. Specially designed clamping for irregular workpieces to keep the clamping stable. The clamp is equipped with a roller to avoid workpiece damage. An automatic clamp moving and positioning system combined with an automatic clamp position sensing function effectively prevents the crash from spindle hitting the vise.
• Any surface or plane in 3D space can be processed.
• 5-axis can rotate into any angle and direction.
• Even machining irregular profile,5 axis can keep specific angles to the surface.
• Specifically for aluminum material, POM, light alloy cutting, drilling, slotting, and machining.
• Syntec 5 axis controller, with 5 axis head which is imported from Italy, can make the five-sided machining once.
• Tempering treatment heavy base keeps strong and accurate.
• German CAM software and vise automatic positioning function, make the 5 axis machining process more simple.
• The angular head can be tilting A-Axis : ±120˚, Spindle rotary C-Axis : ±120˚, Spindle rotary C-Axis : ±220˚, making it suitable for angular drilling and tapping operations. Suitable for face milling and multi-surface machining in one setup.
• Tilting degree through computer control.
• Angle Indexing accuracy
• A tool clamp/release button is provided on the angular head.
• Integrated-type spindle features high accuracy, low vibration, low noise, and no backlash
SYNTEC CONTROLLER
DATA SERVER WITH ETHERNET
400-BLOCK LOOK-AHEAD CAPABILITY
10 SETS OF PNEUMATIC VISES
INCLUDING SAFETY FENCING(AS SHOWN IN THE ATTACHED DRAWING).
ADD TWO BUTTONS TO THE CONTROL PANEL TO ENSURE THE VISES REMAIN SECURELY IN POSITION AND CANNOT BE MOVED.
AUTOMATIC CHIP CONVEYOR(FOR8M) PLASTIC BELT TYPE
STOPPER (POSITION THEM ON THE FAR LEFT AND FAR RIGHT SIDE
TOOL CHECKING (TOOL MEASURE& TOOL BROKEN CHECKING)
CAMPROX 5TH SOFTWARE
WITHOUT FIXTURE
Equipped with two-layer tool magazines for storing sawblade and cutting tools on both upper and lower magazines, featuring fast tool change. Specially designed clamping for irregular workpieces to keep the clamping stable. The clamp is equipped with a roller to avoid workpiece damage. An automatic clamp moving and positioning system combined with an automatic clamp position sensing function effectively prevents the crash from spindle hitting the vise.
• Any surface or plane in 3D space can be processed.
• 5-axis can rotate into any angle and direction.
• Even machining irregular profile,5 axis can keep specific angles to the surface.
• Specifically for aluminum material, POM, light alloy cutting, drilling, slotting, and machining.
• Syntec 5 axis controller, with 5 axis head which is imported from Italy, can make the five-sided machining once.
• Tempering treatment heavy base keeps strong and accurate.
• German CAM software and vise automatic positioning function, make the 5 axis machining process more simple.
• The angular head can be tilting A-Axis : ±120˚, Spindle rotary C-Axis : ±120˚, Spindle rotary C-Axis : ±220˚, making it suitable for angular drilling and tapping operations. Suitable for face milling and multi-surface machining in one setup.
• Tilting degree through computer control.
• Angle Indexing accuracy
• A tool clamp/release button is provided on the angular head.
• Integrated-type spindle features high accuracy, low vibration, low noise, and no backlash
Metric
| X-axis Travel | 8,000 mm |
| Y-axis Travel | 400 mm |
| Z-axis Travel | 800 mm |
| A-axis Swivel | 120° |
| C-axis Swivel | 220° |
| Table Size | 400 x 8000 mm |
| Table Height From Floor | 680 mm |
| Spindle Speed | 20,000 RPM |
| Spindle Taper | HSKF63 |
| ATC Magazine | 12 Tools |
| Saw Blade size | 16"X1" bore |
| Saw Blade Processing Strock | 350 mm |
| Motor | 7.5 kW |
| Cutting Capacity | 5000 MM/MIN |
| Feeding Speed | 50/24/24 M/MIN |
| Weight | 13,500 Kg |
SYNTEC CONTROLLER
DATA SERVER WITH ETHERNET
400-BLOCK LOOK-AHEAD CAPABILITY
10 SETS OF PNEUMATIC VISES
INCLUDING SAFETY FENCING(AS SHOWN IN THE ATTACHED DRAWING).
ADD TWO BUTTONS TO THE CONTROL PANEL TO ENSURE THE VISES REMAIN SECURELY IN POSITION AND CANNOT BE MOVED.
AUTOMATIC CHIP CONVEYOR(FOR8M) PLASTIC BELT TYPE
STOPPER (POSITION THEM ON THE FAR LEFT AND FAR RIGHT SIDE
TOOL CHECKING (TOOL MEASURE& TOOL BROKEN CHECKING)
CAMPROX 5TH SOFTWARE
WITHOUT FIXTURE
