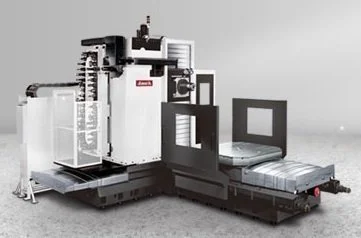

New AWEA BL4024-FM/RAM TYPE | Horizontal Boring Mills

Description

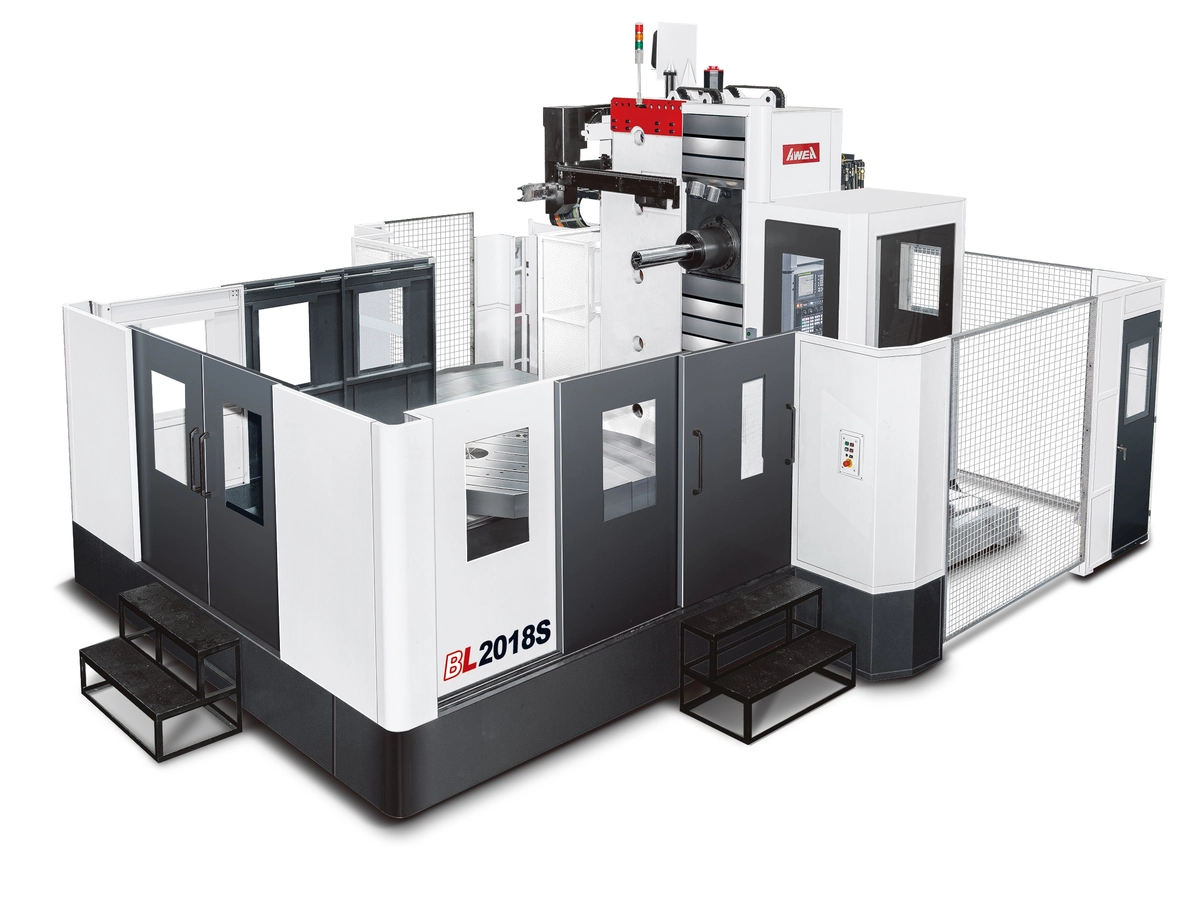

High Rigidity Horizontal Boring Mills

Introducing AWEA with mature manufacturing abilities and advanced technology skills. The BL series combines a high rigidity structure, heavy-duty load capacity rotary table, and a high torque spindle (BL-FM) along with our professional assembly and hand scraping skills. BL series can easily overcome the most stringent requirements of not only deep hole boring but high precision mold milling which meet your various needs for today and the future.

Key Highlights:

✔ Modular spindle design, BL-S quill type 2-step gearbox spindle continuous torque can be 1,308 N-m; BL-FM ram type built-in spindle speed up to 8,000 rpm
✔ High damping, low friction oil floating design working table provides maximum table load capacity at 15,000 kg ( Opt. )
✔ Balanced arrangement of tool magazine and headstock on the column to ensure excellent positioning accuracy
✔ Horizontal boring mills provide better chip removal ability
