AWEA BL2018-FM HORIZONTAL BORING MILLS

Description

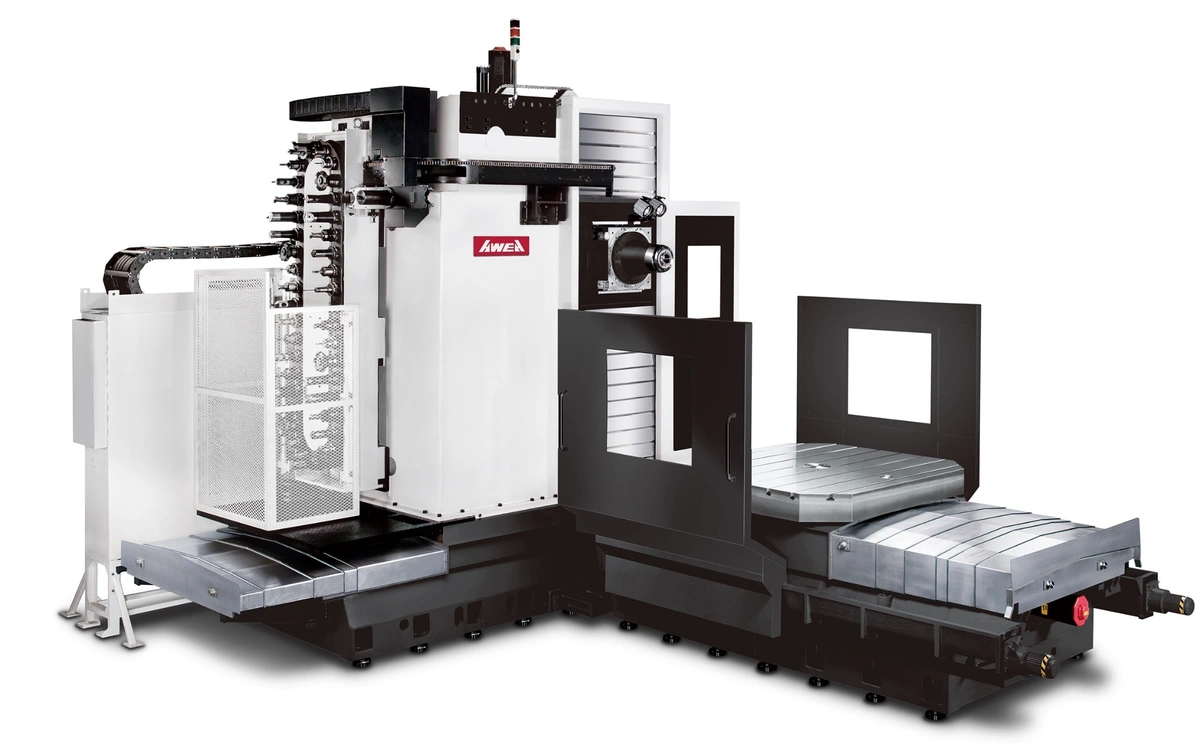

AWEA BL-2018FM Horizontal Boring & Milling Machine

The AWEA BL-2018FM is engineered for power, precision, and productivity. With its super-rigid frame, heavy-duty load capacity, and advanced spindle technology, this horizontal boring and milling machine is built to handle the toughest materials and the largest parts with accuracy and efficiency. Designed for industries like aerospace, energy, transportation, and mold manufacturing, the BL-2018FM combines robust performance with intelligent features to maximize uptime and machining capability.

Key Features:

• X/Y/Z Travel: 2,000 × 1,800 × 1,300 mm with 600 mm W-axis travel
• Ø480 mm boring spindle, CAT50 Big Plus taper, 2-step gear design
• 6,000 RPM spindle speed with 22/26 kW power output
• 1,600 × 1,800 mm rotary table with 15,000 kg load capacity
• FANUC 0i-MF PLUS control with 10.4” LCD and AICCII (200-block lookahead + 2GB data server)
• 40-tool ATC magazine (25 kg max tool weight, 400 mm max tool length)
• 0.0001° indexing rotary table with closed-loop feedback for ultra-precise positioning
• 70 bar coolant-through-spindle with filtration system
• X/Y/Z linear scales for high-accuracy machining
• Operator-friendly design with moving cabin, full guarding, and chip management system
