AWEA BL2024-S HORIZONTAL BORING MILLS

Description

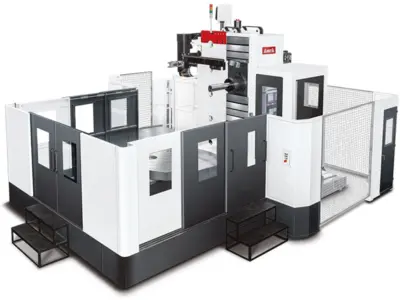

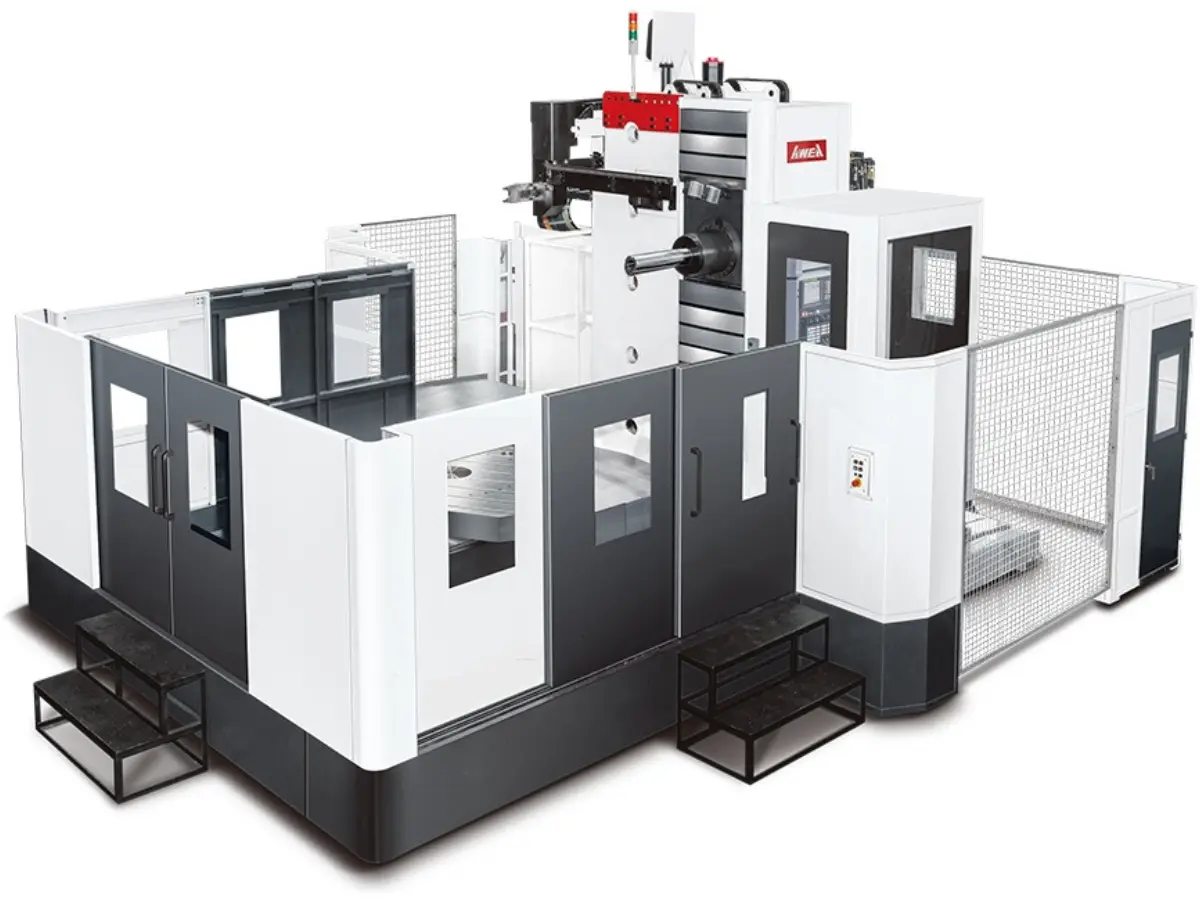

The AWEA BL-2024/S is a high-performance CNC horizontal boring and milling machine designed for large and heavy workpieces. Featuring a robust bridge-type design, this machine delivers outstanding accuracy and rigidity across extended X/Y/Z travels of 2,000 mm, 2,400 mm, and 1,700 mm, along with a 600 mm W-axis travel. With a large 1,800 x 1,600 mm table that handles up to 15,000 kg, it’s built for challenging applications in the aerospace, energy, mold & die, and heavy equipment industries.

Powered by a 120 mm gear-driven boring spindle with CAT50 Big Plus taper and a 22/26 kW motor, the BL-2024/S achieves speeds of up to 2,400 RPM—ideal for high-torque, precision machining. The upgraded 60-tool automatic tool changer improves productivity, while its 70-bar coolant-through spindle system, air-through spindle, and spindle cooling unit ensure stable performance and tool life. Integrated with the FANUC 0i-MF Plus control system, linear scales on all axes, and a 0.001° indexing rotary table, this machine enables high-precision multi-face cutting and drilling.

With in-house service support across Ontario and Quebec, MEGATEL CNC offers this reliable boring mill to manufacturers looking for advanced capabilities in Canada and the USA.

Key Features:

• X/Y/Z Travels: 2,000 mm / 2,400 mm / 1,700 mm + 600 mm W-axis
• Table Size & Load: 1,800 x 1,600 mm, 15,000 kg capacity
• Spindle: Ø120 mm, 2,400 RPM, CAT50 Big Plus, gear-driven
• Precision Control: FANUC 0i-MF Plus with 15” LCD, linear scales
• Rotary Table: 0.001° indexing for high-accuracy positioning
• Structure: Rigid bridge-type build with thermal stability
