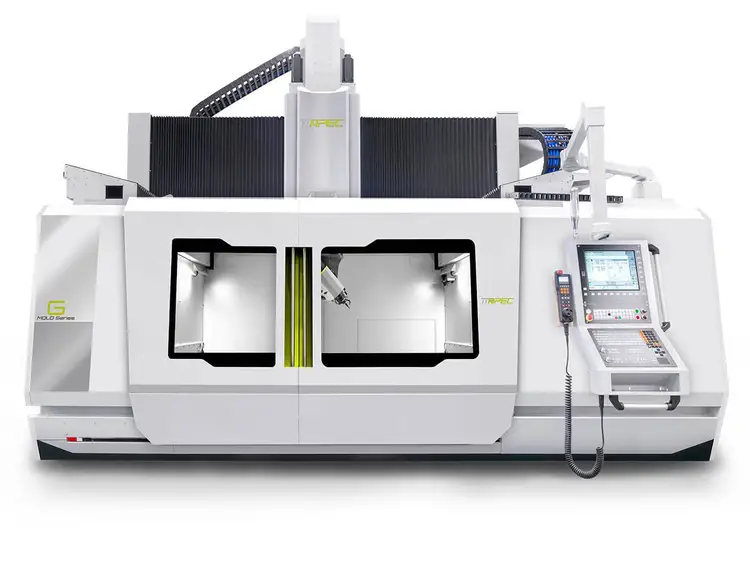

New APEC GM2530 | Gantry Vertical Milling Center

1.888.565.8807
sales@megatelcnc.com
ConditionNew

Overview

Type:
Gantry Vertical Milling Center
Manufacturer:
APEC
Model:
GM2530
Condition:
Build To Order
Status:
For Sale

Description

Discover the APEC G2530 Gantry Vertical Milling Center: new with dynamic X, Y, Z-axis travel, versatile milling heads & Heidenhain TNC640 control. Adaptability meets precision for diverse milling needs.

X-Axis Travel118.11"3,000 mm
Optional X-Axis Travel4,000 | 5,000 | 6,000 | 8,000 mm4,000 | 5,000 | 6,000 | 8,000 mm
Y-Axis Travel98.425"2,500 mm
Z-Axis Travel47.244"1,200 mm
Optional Z-Axis Travel1,500 | 2,000 mm1,500 | 2,000 mm
Table Size-X118.11"3,000 mm
Optional Table Size-X4,000 | 5,000 | 6,000 | 8,000 mm4,000 | 5,000 | 6,000 | 8,000 mm
Table Size-Y98.425"2,500 mm
Dist. Spindle Nose to Table59.055"1,500 mm
Table Load Capacity per sqm8 T7,257.5 kg
Spindle Speed24,000 RPM24,000 RPM
Spindle TaperHSK A63 or HSK A100HSK A63 or HSK A100
A-axis Swivel120°120°
C-axis Rotation360°360°
ATC3030
Milling Head TypeMono Head (Fork Head or Universal Head)Mono Head (Fork Head or Universal Head)
Optional ATC40 | 6040 | 60
CN ControlHeidenhain TNC640Heidenhain TNC640
