New APEC GM3240 | Gantry Vertical Milling Center

1.888.565.8807
sales@megatelcnc.com
ConditionNew

Overview

Type:
Gantry Vertical Milling Center
Manufacturer:
APEC
Model:
GM3240
Condition:
Build To Order
Status:
For Sale

Description

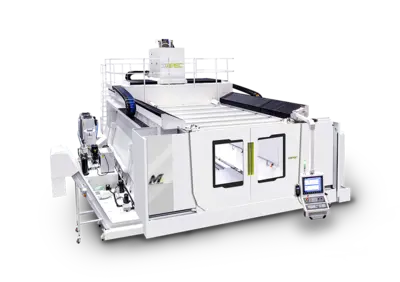

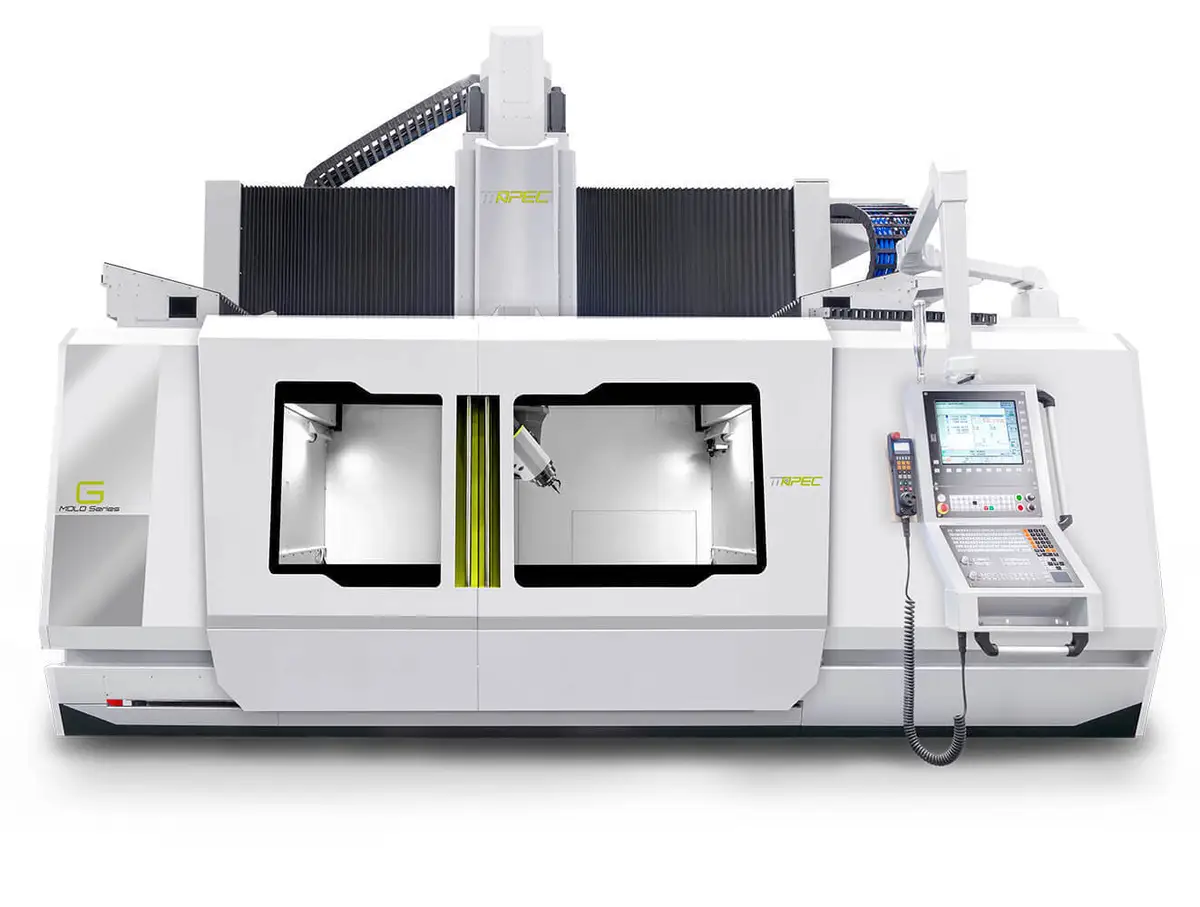

Explore precision with the new APEC GM3240, a 5-axis vertical gantry milling center. Engineered for accuracy and performance in complex machining.

X-Axis Travel4,000 mm157.48"
Optional X-Axis Travel5,000 | 6,000 | 8,000 mm5,000 | 6,000 | 8,000 mm
Y-Axis Travel3,200 mm125.98"
Z-Axis Travel1,200 mm47.244"
Optional Z-Axis Travel1,500 | 2,000 mm1,500 | 2,000 mm
Table Size-X4,000 mm157.48"
Optional Table Size-X5,000 | 6,000 | 8,000 mm5,000 | 6,000 | 8,000 mm
Table Size-Y3,200 mm125.98"
Dist. Spindle Nose to Table1,500 mm59.055"
Table Load Capacity per sqm8 T7,257.5 kg
Spindle Speed24,000 RPM24,000 RPM
Spindle TaperHSK A63 or HSK A100HSK A63 or HSK A100
Milling Head TypeMono Head (Fork Head or Universal Head)Mono Head (Fork Head or Universal Head)
Optional ATC40 | 6040 | 60
A-axis Swivel Angle (±)120°120°
C-axis Rotation360°360°
ATC3030
CN ControlHeidenhain TNC640Heidenhain TNC640

Overview

Type:
Gantry Vertical Milling Center
Manufacturer:
APEC
Model:
GM3240
Condition:
Build To Order
Status:
For Sale

Description

Explore precision with the new APEC GM3240, a 5-axis vertical gantry milling center. Engineered for accuracy and performance in complex machining.

Specifications

Metric

X-Axis Travel157.48"
Optional X-Axis Travel5,000 | 6,000 | 8,000 mm
Y-Axis Travel125.98"
Z-Axis Travel47.244"
Optional Z-Axis Travel1,500 | 2,000 mm
Table Size-X157.48"
Optional Table Size-X5,000 | 6,000 | 8,000 mm
Table Size-Y125.98"
Dist. Spindle Nose to Table59.055"
Table Load Capacity per sqm7,257.5 kg
Spindle Speed24,000 RPM
Spindle TaperHSK A63 or HSK A100
Milling Head TypeMono Head (Fork Head or Universal Head)
Optional ATC40 | 60
A-axis Swivel Angle (±)120°
C-axis Rotation360°
ATC30
CN ControlHeidenhain TNC640
