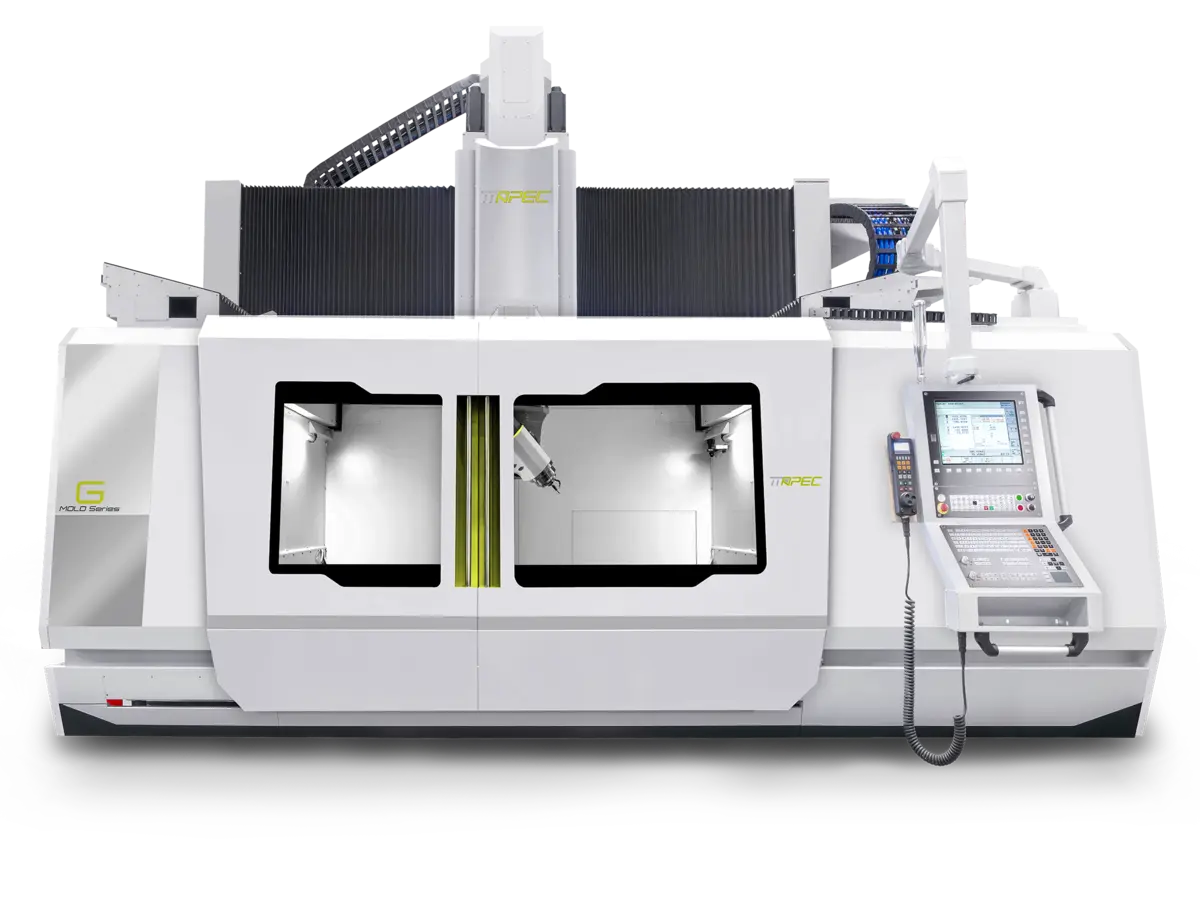

New APEC G3040 | Gantry Vertical Milling Center

1.888.565.8807
sales@megatelcnc.com
ConditionNew

Overview

Type:
Gantry Vertical Milling Center
Manufacturer:
APEC
Model:
G3040
Condition:
Build To Order
Status:
For Sale

Description

Discover the APEC G3040: New 5-axis high-speed gantry vertical milling center with up to 8T table load, 24,000 RPM spindle, Heidenhain control, and customizable travels.

X-Axis Travel4,000 mm157.48"
Optional X-Axis Travel2,000 | 4,000 | 6,000 | 8,000 mm2,000 | 4,000 | 6,000 | 8,000 mm
Y-Axis Travel3,000 mm118.11"
Z-Axis Travel1,000 mm39.37"
Optional Z-Axis Travel1,200 mm1,200 mm
Table Size-X4,000 mm157.48"
Optional Table Size-X2,000 | 4,000 | 6,000 | 8,000 mm2,000 | 4,000 | 6,000 | 8,000 mm
Table Size-Y3,000 mm118.11"
Dist. Spindle Nose to Table1,370 mm53.937"
Table Load Capacity per sqm8 T7,257.5 kg
Spindle Speed24,000 RPM24,000 RPM
Spindle TaperHSK A63 or HSK A100HSK A63 or HSK A100
Milling Head TypeMono Head (Fork Head or Universal Head)Mono Head (Fork Head or Universal Head)
Optional ATC40 | 6040 | 60
A-axis Swivel Angle (±)125°125°
C-axis Rotation360°360°
ATC3030
CN ControlHeidenhain TNC640Heidenhain TNC640

Overview

Type:
Gantry Vertical Milling Center
Manufacturer:
APEC
Model:
G3040
Condition:
Build To Order
Status:
For Sale

Description

Discover the APEC G3040: New 5-axis high-speed gantry vertical milling center with up to 8T table load, 24,000 RPM spindle, Heidenhain control, and customizable travels.

Specifications

Metric

X-Axis Travel157.48"
Optional X-Axis Travel2,000 | 4,000 | 6,000 | 8,000 mm
Y-Axis Travel118.11"
Z-Axis Travel39.37"
Optional Z-Axis Travel1,200 mm
Table Size-X157.48"
Optional Table Size-X2,000 | 4,000 | 6,000 | 8,000 mm
Table Size-Y118.11"
Dist. Spindle Nose to Table53.937"
Table Load Capacity per sqm7,257.5 kg
Spindle Speed24,000 RPM
Spindle TaperHSK A63 or HSK A100
Milling Head TypeMono Head (Fork Head or Universal Head)
Optional ATC40 | 60
A-axis Swivel Angle (±)125°
C-axis Rotation360°
ATC30
CN ControlHeidenhain TNC640
