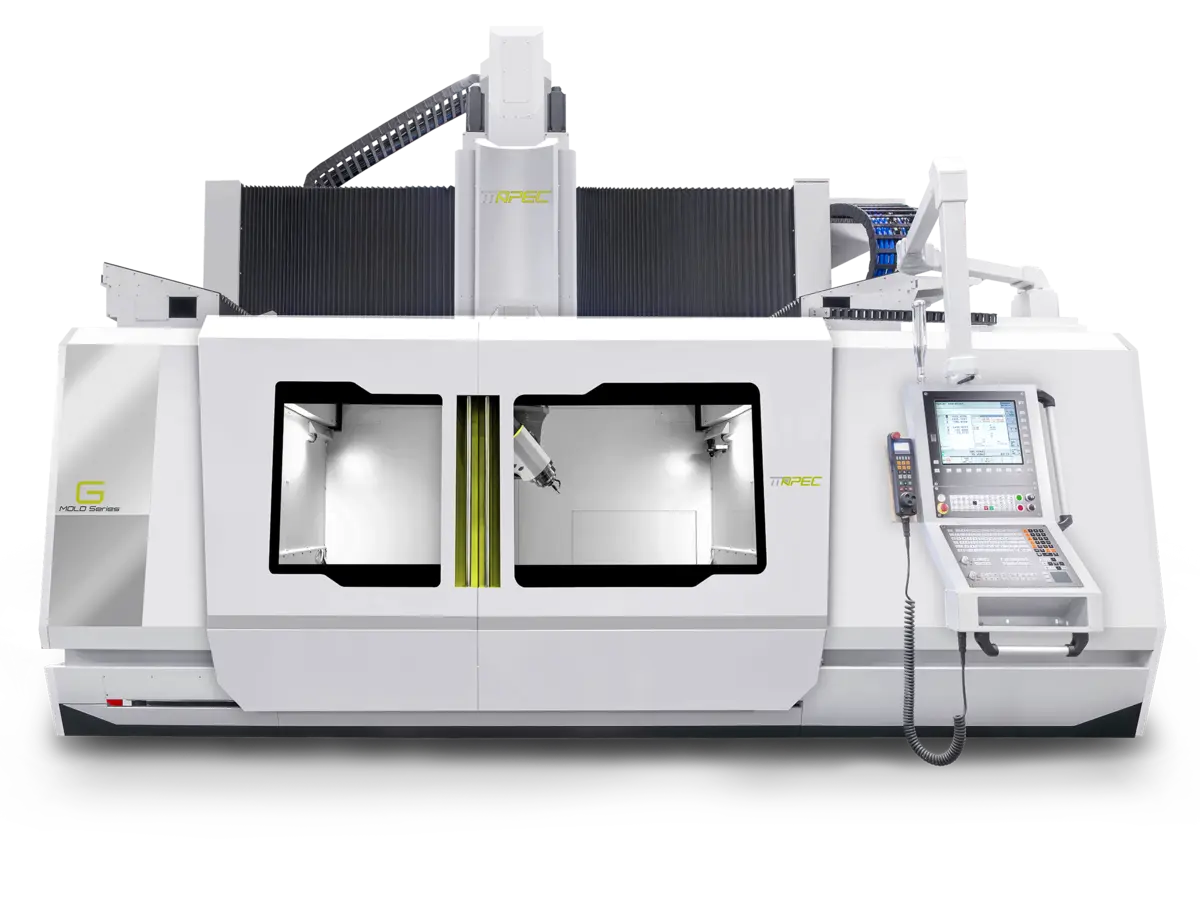

APEC G2530 5-Axis High-Speed Gantry Machining Center

Description

The APEC G2530 is a next-generation 5-axis high-speed gantry machining center engineered for large, complex, and high-precision parts in aerospace, die/mold, and aluminum component machining. Built with a rigid gantry structure and advanced dynamic control, the G2530 delivers outstanding surface finishes, speed, and part accuracy in every cycle.

Equipped with a powerful 15,000 RPM HSK100A built-in spindle, high-performance 2-axis fork-type milling head, and Heidenhain TNC640 5-axis CNC control, this machine excels at simultaneous 5-axis machining, even in demanding free-form geometries and hard-to-reach contours. The direct-drive motors on the B and C axes allow for precise and fast tool positioning with minimal thermal displacement.

With travels of X: 3,000 mm, Y: 2,500 mm, and Z: up to 1,200 mm, the APEC G2530 is ideal for large-scale parts. It features linear motor drives on X and Y axes, roller-type linear guideways for rigidity, and a 60-tool HSK100A automatic tool changer for uninterrupted high-mix production.

Key Features:

• 2-axis direct-drive milling head (±115° B-axis / ±360° C-axis)
• Heidenhain TNC640 5-axis CNC controller with HR520 MPG
• X/Y linear motors for backlash-free, high-speed travel at 60 m/min
• Large working envelope: 3,000 mm x 2,500 mm x up to 1,200 mm Z-axis
• Precision tool changer: 60-tool HSK100A ATC, 15 kg max tool weight
• Positioning accuracy: ±0.012 mm; Repeatability: ±0.008 mm
• Optional BLUM touch probe, laser tool setting system, and 70 bar CTS

Whether you're producing aerospace structural components, precision molds, or high-speed aluminum parts, the APEC G2530 offers the speed, accuracy, and reliability required for next-level productivity.
