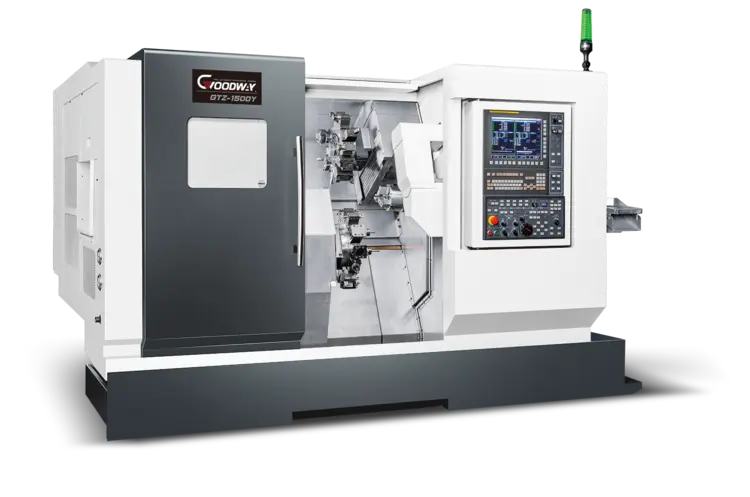

GOODWAY GTZ-1500 MULTI-AXIS TURNING CENTERS
ConditionNew
New
UPPER & LOWER TWIN TURRETS | TWIN Y AXIS
When facing the dilemma of maintaining a highly efficient production while processing extremely complicated machining parts, the GOODWAY GTZ-1500 series is your best solution. This model is based on an ultra-solid 60° true slant bed, with the advanced structural design of twin spindles, twin Y-axis, and twin live tooling turrets. Any complex parts can be completed by a GTZ-1500 in a single setup. In addition, this series provides three bar diameters of Ø45 / Ø51 / Ø65 mm, satisfying your processing needs for various workpiece sizes.
Twin Y axes Control Function
• Y-axis control function can achieve simultaneous X, Y, Z, and C axes machining, which is capable of working on Y-axis off center milling, drilling, and tapping while improving the machining accuracy for multiple parts processing,
• The oblique design of the Y-axis structure allows this series to achieve a large Y-axis stroke ( Y1 = ± 42 mm, Y2 = ± 33 mm ) with a very small machine size.
One-piece Casting 60° True Slant Bed
• High rigidity which provides an extremely stable base for the spindle and turret.
• Shorten the distance between the operator and the working area.
• The independent guideway design of the Z1, Z2, and ZS axes effectively reduces movement restriction between each unit and ensures the maximum stroke of each axis.
FANUC 31I DUAL PATH CONTROL WITH 15” COLOR LCD AND IHMI
MANUAL GUIDE-I CONVERSATIONAL PROGRAMMING
10 HP (CONT.), 15 HP (15 MIN), 20 HP (PEAK) MAIN & SUB-SPINDLE MOTOR
SINGLE SPINDLE SPEED CONFIGURATION
LINEAR GUIDEWAYS ON X/Z AXES, BOX WAY ON Y-AXIS
SPINDLE (H1):
A. 5,000 RPM SPINDLE SPEED
B. TAIWAN-MADE 6 INCH 3-JAW BIG-BORE THROUGH-HOLE (2” / 51MM) POWER CHUCK
C. CS-AXIS WITH DISK BRAKE
SPINDLE (H2):
A. 5,000 RPM SPINDLE SPEED
B. TAIWAN-MADE 6 INCH 3-JAW BIG-BORE THROUGH-HOLE (2” / 51MM) POWER CHUCK
C. CS-AXIS WITH DISK BRAKE
TWO SETS OF SOFT JAWS & TWO SETS OF HARD JAWS
UPPER TURRET: 12 STATIONS SERVO INDEXING LIVE TURRET WITH 3/4” OD, 1” ID TOOLING SHANK
LOWER TURRET: 12 STATIONS SERVO INDEXING LIVE TURRET WITH 3/4” OD, 1” ID TOOLING SHANK
MAX. 6,000 RPM WITH ER-20 LIVE TOOL (UPPER & LOWER TURRET)
2 PCS X 0° LIVE TOOL HOLDER (ER-20, EC)
2 PCS X 90° LIVE TOOL HOLDER (ER-20, EC)
Y1 AXIS TRAVEL: +/- 42MM
Y2 AXIS TRAVEL: +/- 33MM
7 BARS (100 PSI) HIGH PRESSURE COOLANT PUMP
RENISHAW MANUAL TOOL SETTER HPRA FOR MAIN SPINDLE (WITH DUAL STYLUS FOR UPPER & LOWER TURRET)
PARTS CATCHER
PARTS CONVEYOR
COOLANT THROUGH SUB-SPINDLE
CHIP CONVEYOR WITH 47” DISCHARGE HEIGHT
BAR FEEDER INTERFACE
OIL SKIMMER
TOOL LOAD MONITOR FUNCTION
AIR BLOW FOR MAIN & SUB SPINDLE
COOLANT ABOVE MAIN & SUB SPINDLE CHUCK
SMART CHUCK SENSOR FOR MAIN AND SUB SPINDLE
AUTOMATIC LUBRICATION SYSTEM
COOLANT FLUSH FOR WAY COVER
COOLANT TANK
HYDRAULIC SYSTEM
FULLY ENCLOSED GUARDING
DOOR INTERLOCK
HYDRAULIC PRESSURE SAFETY SWITCH
PROGRAM PROTECT
CHUCK CLAMP/UNCLAMP CONFIRMATION
ELECTRIC CABINET HEAT EXCHANGER
WORK LIGHT & THREE-COLOR OPERATION STATUS SIGNAL LIGHT TOWER
LEVELING BOLT AND LEVELING PAD
TOOLBOX WITH EMERGENCY MAINTENANCE ELECTRICAL PART PACKAGE
OPERATION & MAINTENANCE MANUALS
