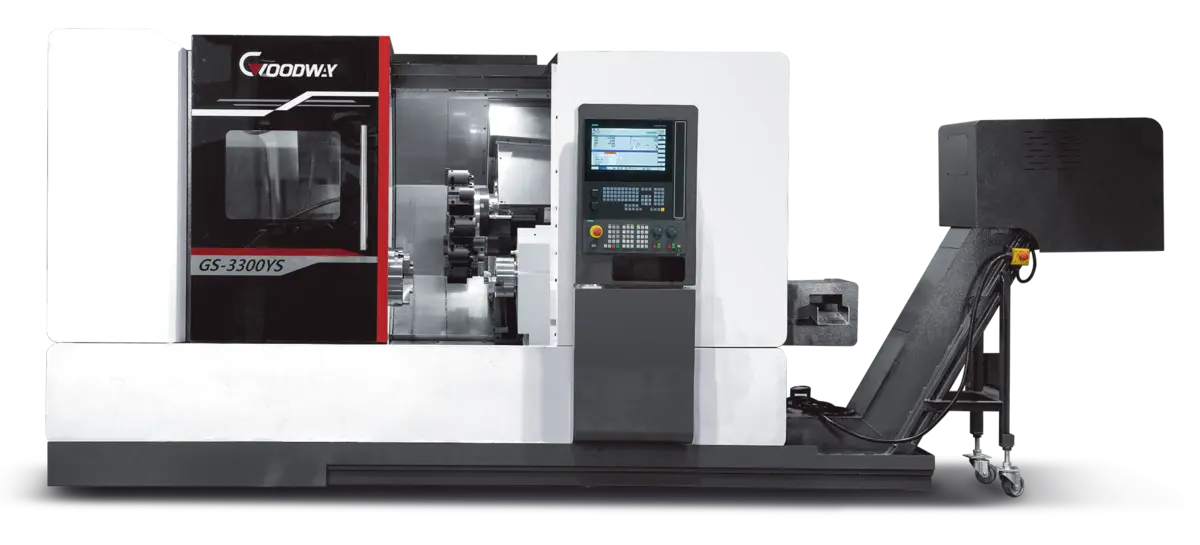

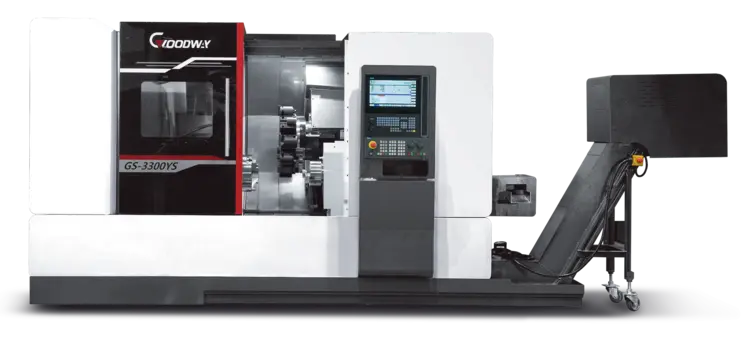

GOODWAY GS-3600 /Y-Axis - HORIZONTAL TURNING CENTER
ConditionNew
New
With the latest machine tools technology and precision turning performance, GOODWAY brings you the new GS series high-speed CNC turning center. Using 2 types of beds combined with super rigidity, high-speed turning capability, and compact size provides you with super-efficiency cutting power. The GLS-1500 series equipped with an optional live tooling turret, Y-axis, and sub-spindle can work on turning, milling, and drilling tasks at the same time to increase the output capacity with high-end value to meet your needs of today and tomorrow.
Key Features:
*30°low center gravity slant bed ensures high rigidity of GS-3000 series.
*X / Z axes adopt box ways structure and wide span design to ensure best rigidity and precision.
*Optional high precision built-in spindle or high power belt-driven spindle to meet any processing request.
*X / Z axes are directly driven by a high-performance AC servo motor, rapid feed rate can reach up to 30 m/min.
*12-station servo index turret, adjacent and opposite tool changing only takes up to 0.3 and 0.8 sec.
* High-rigidity programmable tailstock or high-performance servo tailstock ensures the best support for the workpiece.
15" Hydraulic Cylinder
FANUC ALPHA P40 Spindle Motor 18.55/22 kW
Rigid Tapping
Spindle Orientation
Box Guideways On All Axes
FANUC absolute encoder AC Servo Drive Motors
C3 Class Ball Screws With Pretension On all Axes
Chip Conveyor (Hinge Type) with Auto Timer
Coolant System With Grundfof 3/4 hp Coolant Pump
Hydraulic System
Fully Enclosed Splash Covers
Advanced Auto Lubrication System
Tri-color Signal Tower
High Intensity Work Light
M Code Automatic Power Off
Foot Switch For Chuck
RS-232 Interface
Elecgtric Cabinet Heat Exchanger
Foundation And Levelling Kit/Maintence Tool Kit
Operations And Maintenance Manuals
Upgraded Oi-TF 10.4" LCD Including Manual Guide i
1 Degree Indexing With Disk Brake On Main spindle
Live Center For Tail Stock MT4
Goodway 12 Stations Live Tooling Turret (4.5 kW, ER32) Including 1 each 0° and 90° Driven Tool Holder
Y-axis
2 extra sets of 0° Degree Live Tool Holder ER-32/EC-Quickflex
2 extra sets of 90° Degree Live Tool Holder ER-32/EC-Quickflex
ER-32 Quickflex Sterter Set (Including One Each Weldon adapter, Short Combination Mill Adapter, Collet Chuck, One-hand Wrench, Spanner Wrench)
Upgraded Chip Conveyor Height 1,200 mm Replacing The Standard 850 mm
Chip Cart
Air Blow For Main spindle Chuck
Coolant Above Main spindle Chuck
Oil Skimmer
Coolant Level Switch
Extra 8xM Codes
