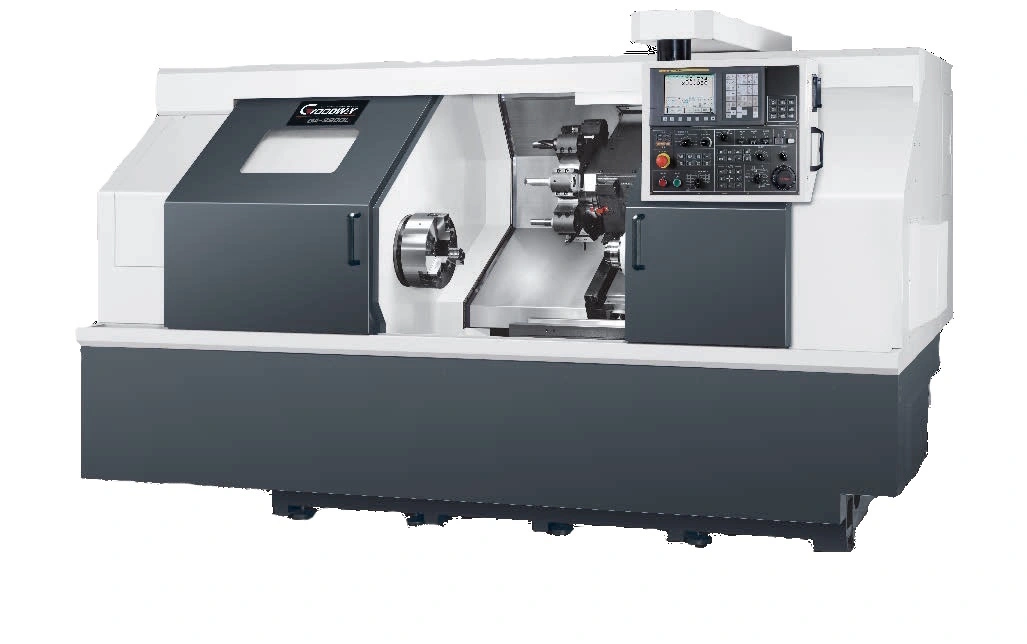

YAMA-SEIKI GOODWAY GA-2800 ULTRA PERFORMANCE TURNING CENTER
ConditionNew
New
Engineered to handle heavy-duty turning applications with superb accuracy, the GA series ultra performance turning centers combine extremely powerful high torque motors, super rigid box way constructions, and large diameter servo indexing turrets to bring you The Ultimate Machining Power®. The GA series will help you be more competitive by achieving faster cycle times with heavier cuts, faster machine movements, and allow cutting of tough material efficiently. You’ll also appreciate the reliability and durability that our machines are known for. Plus, with more standard features than any other machine on the market today, many say it’s the best investment they have ever made.
Key Features:
• Extremely powerful high-torque spindles deliver 2.5 ~ 4 times the torque output of standard spindles.
• Extra large Z-axis servo motors provide the thrust needed to efficiently drill big diameter holes.
• In order to endure the machine’s high outputs with durability, heavy-duty roller bearings are used to support the spindles and axes guide ways are of super-rigid one-piece box ways.
• A total of 24 models are available in the GA Series lineup, use the chart below to pinpoint the model that best suits your applications needs.
**Please refere to the attached catalogue for the complete specification of the machine.
FANUC 0I-TF PLUS WITH 10.4" COLOR LCD
RIGID TAPPING
FANUC ALPHA SPINDLE AND SERVO DRIVES
DIRECT BELT DRIVEN SPINDLE
SINGLE SPEED SPINDLE MOTOR CONTROL UNITS FOR FANUC DUAL WINDING SPINDLE MOTOR
UPGRADED TURNING LENGTH TO 575MM
MAX SPINDLE RPM: 3,500 RPM
10" BIG-BORE 3-JAW THROUGH-HOLE (78 MM) POWER CHUCK
ONE SET OF SOFT JAWS AND ONE SET OF HARD JAWS
X/Z SERVO MOTOR: FANUC ALPHA SERVO MOTOR 3.6 HP
X/Z AXES RAPID TRAVERSE RATE: 20/24 M/MIN
12-STATION STANDARD SERVO TURRET WITH 1" OD AND 1.5" ID TOOL SHANK
CHIP PAN ONLY
GRUNDFOS 94 PSI COOLANT PUMP (MTH 2-50/5) WITH ROLL-OUT COOLANT TANK
ADVANCE AUTOMATIC LUBRICATION SYSTEM
COMPLETE HYDRAULIC SYSTEM
LEVELING BOLT AND LEVELING PAD
WORK LIGHT
THREE (3) COLOR OPERATION STATUS SIGNAL LIGHT TOWER
FULLY ENCLOSED GUARDING
DOOR INTERLOCK
HYDRAULIC PRESSURE SAFELY SWITCH
PROGRAM PROTECT,
CHUCK CLAMP/UNCLAMP CONFIRMATION
TOOLBOX WITH EMERGENCY MAINTENANCE ELECTRICAL PART PACKAGE
TOOL HOLDER AND SLEEVES PACKAGE
OPERATION AND MAINTENANCE MANUALS, PARTS LIST AND ELECTRICAL ORAWINGS
FACTORY TEST REPORT
PERFORMANCE PACKAGE INCLUDES:
SPINDLE ORIENTATION - 1 DEGREE INDEXING
USER DEFINABLE MACRO
TAILSTOCK WITH PROGRAMMABLE NON-ROTATING QUILL (MT#4)
3 COLOR TOWER SIGNAL
UPGRADE CHIP PAN TO 47” SIDE DISCHARGE CHIP CONVEYOR
OIL SKIMMER
RENISHAW (HPRA) REMOVAL TOOL SETTER
UPGRADE TO 1J2 PS/ HIGH PRESSURE COOLANT PUMH (MTH-2/70)
2-SHEED SPINDLE MOTOR CONFIGURE TION
MACHINE INCLUDES THE FOLLOWING:
UPGRADE SPINDLE MOTOR 30HP(PEAK)
SMART CHUCK SENSOR
