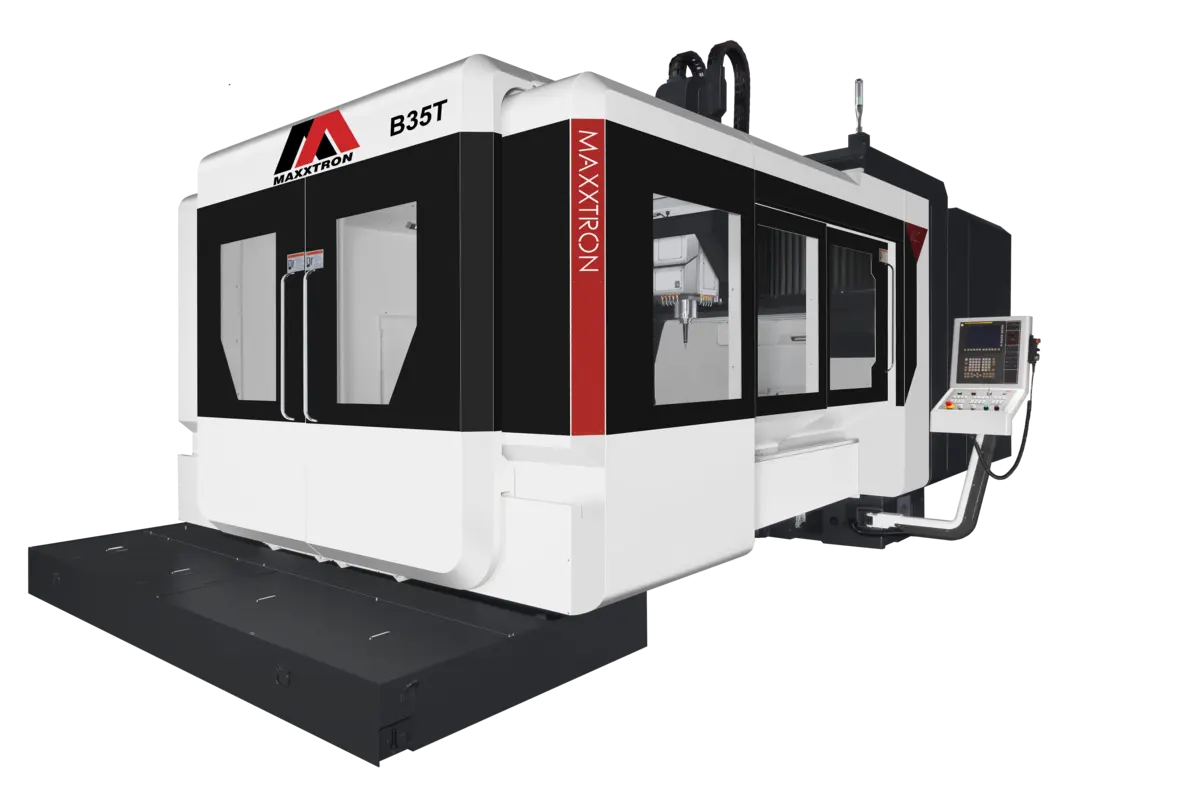

MAXXTRON B35T
ConditionNew
New
Introducing MAXXTRON B Series: Redefining Precision Machining
The MAXXTRON B Series stands at the forefront of precision machining solutions, meticulously designed to meet the rigorous requirements of parts production and die & mold industries. Widely embraced in the 3C, automobile, and mold machining sectors, the B Series offers unparalleled performance and reliability to elevate your machining operations to new heights.
Key Features:
✔ All 3 axes are equipped with high-precision roller-type linear guide ways to optimize acceleration/deceleration. And match the high speed, accuracy, and performance manufacturing requirements.
✔ Extra rigidity Column design: The unique design of the column structure is more stable than other comparable models, and the beam & column are made of one-piece casting providing the best rigidity and stability.
✔ Saddle structure:
Ø The ladder-type design of linear guideways on the beam provides a wider supporting surface for the saddle, assuring the spindle of a powerful and stable cutting performance.
Ø Fully symmetrical design and perfect thermal equilibrium structural design, reduce high-speed thermal deformation so that the machine body structure can maintain high stability.
✔ The swivel operation cabinet allows users to operate at any angle and position.
✔ The wider width of the door opening makes the working piece easier to be loaded and unloaded.
Introducing MAXXTRON B Series: Redefining Precision Machining
The MAXXTRON B Series stands at the forefront of precision machining solutions, meticulously designed to meet the rigorous requirements of parts production and die & mold industries. Widely embraced in the 3C, automobile, and mold machining sectors, the B Series offers unparalleled performance and reliability to elevate your machining operations to new heights.
Key Features:
✔ All 3 axes are equipped with high-precision roller-type linear guide ways to optimize acceleration/deceleration. And match the high speed, accuracy, and performance manufacturing requirements.
✔ Extra rigidity Column design: The unique design of the column structure is more stable than other comparable models, and the beam & column are made of one-piece casting providing the best rigidity and stability.
✔ Saddle structure:
Ø The ladder-type design of linear guideways on the beam provides a wider supporting surface for the saddle, assuring the spindle of a powerful and stable cutting performance.
Ø Fully symmetrical design and perfect thermal equilibrium structural design, reduce high-speed thermal deformation so that the machine body structure can maintain high stability.
✔ The swivel operation cabinet allows users to operate at any angle and position.
✔ The wider width of the door opening makes the working piece easier to be loaded and unloaded.
Metric
| X-Axis Travel | 137.8" |
| Y-Axis Travel | 86.614" |
| Z-Axis Travel | 31.496" |
| W-Axis Travel | 1,100 mm |
| Distance Between Column | 92.52" |
| Spindle Nose to Table Top | 41.339" |
| Table Surface to Spindle Dist. | 1,280 mm |
| Table Size-X | 149.61" |
| Table Size-Y | 82.677" |
| Table Load Capacity | 17,637 lb |
| Standard Spindle Taper | CAT50 |
| Optional Spindle Taper | HSK 100A |
| Standard Spindle Speed | 15,000 RPM |
| Max. Feed Speed | 10,000 | 12,000 RPM |
| ATC | 24 |
| Optional ATC | 32 | 60 | 90 |
| # Axis | 3 |
| CN Control | Fanuc | Mitsubishi | Heidenhain | Fagor |
