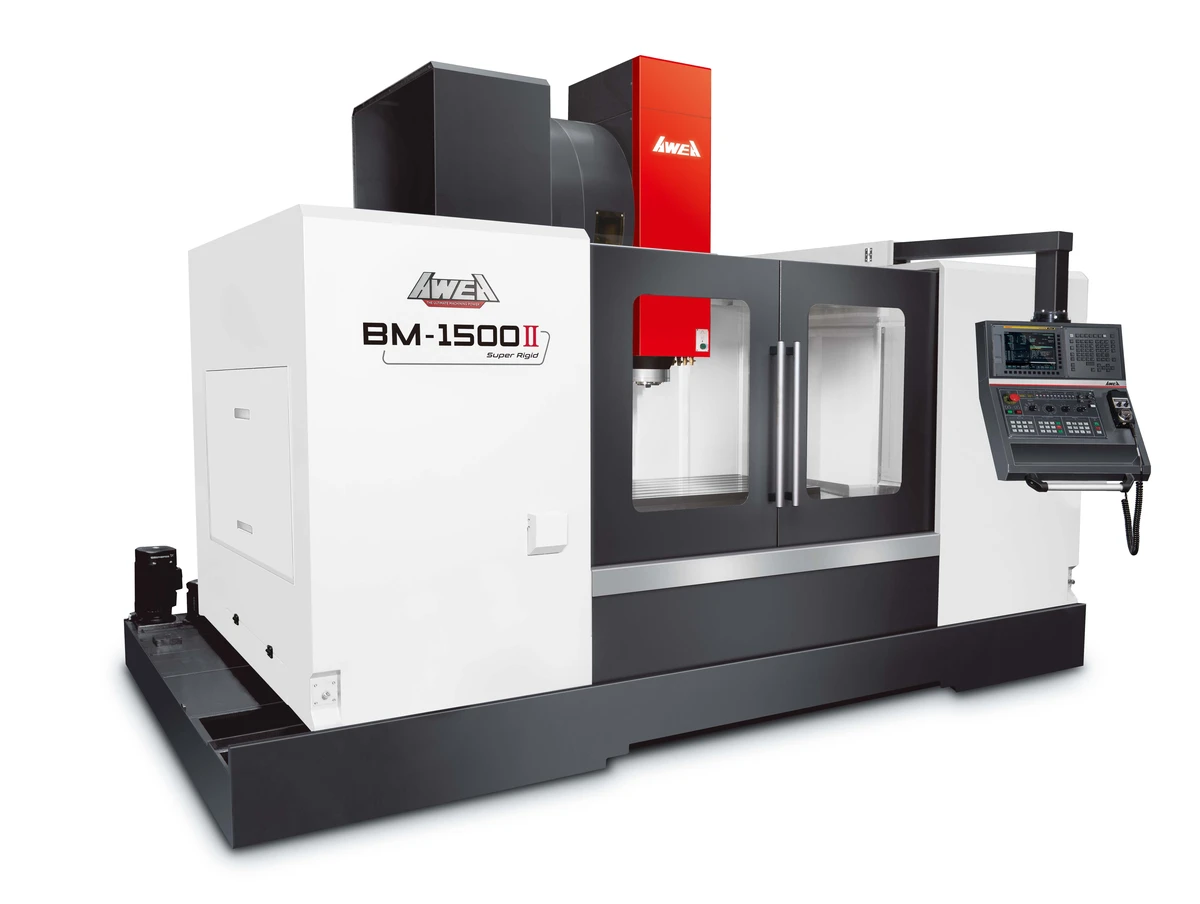

AWEA BM-1500II VERTICAL MACHINING CENTER
ConditionNew
New
Experience unparalleled performance with the AWEA BM-1500II, a vertical machining center designed for heavy cutting and high-precision applications. Built with advanced R&D technology and rigorous quality control, this machine delivers exceptional stability and rigidity, making it the perfect solution for a wide range of machining needs.
Key Features:
• Customizable Spindles: Modular spindle options to optimize cutting for diverse machining needs.
• Heavy-Duty Box Ways: Heat-treated 3-axis box ways provide exceptional support for heavy cutting.
• FEM-Optimized Structure: Lightweight yet rigid design ensures durability and precision.
• Stable Wide-Span Column: Enhanced cutting stability with a steady headstock, even at high speeds.
• Reinforced Table Design: Double-ribbed table resists deformation under prolonged heavy loads.
• Precision Hand-Scraping: Hand-scraped components guarantee accuracy and load balance.
• High-Efficiency Chip Removal: Screw-type chip augers deliver superior chip clearance.
FANUC 0i-MF PLUS WITH 10.4” COLOR LCD SCREEN
AICC II (200 BLOCKS)
FANUC MANUAL GUIDE-I CONVERSATIONAL PROGRAMMING
PARTS PROGRAM STORAGE SIZE UPGRADE TO 2MB
MAX NUMBER OF REGISTERABLE PROGRAMS UPGRADE 1000
DYNAMIC GRAPHIC DISPLAY
JERK CONTROL
SMOOTH TOLERANCE CONTROL
MANUAL HANDLE RETRACE
ONE TOUCH MACRO CALL
AWEA “I-CONSOLE” INTELLIGENT SOFTWARE
RIGID TAPPING
ETHERNET/LAN/RS232/USB/MEMORY CARD
FANUC ALPHA 15i SPINDLE MOTOR, 20/25/40 HP
6000 RPM DIRECT DRIVEN SPINDLE, CAT50 BIG PLUS
30 TOOLS ATC MAGAZINE
AIR BUFFER TANK FOR ATC TOOL CHANGE
UPGRADE Z AXIS MOTOR DRIVE THE WHOLE WEIGHT OF THE SPINDLE HEAD
SPINDLE OIL CHILLER
COOLANT THRU SPINDLE SYSTEM 300 PSI (READY FOR 1000 PSI)
300 PSI HIGH PRESSURE COOLANT SYSTEM
CATERPILLAR TYPE CHIP CONVEYOR
COOLANT WASH DOWN
DUAL INTERNAL CHIP AUGER
RENISHAW PROBE INTERFACE (OMI-2T RECEIVER + GRAPHIC INTERFACE LICENSED)
4TH AXIS INTERFACE (MACHINE PRE-WIRE)
3-COLOR TOWER LIGHT
COOLANT AND AIR GUN
ADDITIONAL HIGH-INTENSITY LIGHTING INTERNALLY MOUNTED LED LIGHTS
AIR CURTAIN AROUND SPINDLE
COOLANT NOZZLE AROUND SPINDLE
HARDENED AND GROUND BOX WAYS
HARDENED C3 CLASS BALL SCREWS
HIGH INTENSITY WORK LIGHT
M CODE CONTROLLED AIR BLOW
M CODE AUTOMATIC POWER OFF
COOLANT SYSTEM WITH GRUNDFOS 3/4HP COOLANT PUMP
ENLARGED 500 LITER (131 GALLON) COOLANT TANK
FULL ENCLOSED SPLASH GUARD
ADVANCE AUTO LUBRICATION SYSTEM W/ COPPER PIPING
WAY LUBRICATION OIL RECYCLING SYSTEM
REMOTE MPG HANDWHEEL
ELECTRICAL CABINET HEAT EXCHANGER
LEVELING KIT
ELECTRONIC USER’S MANUALS (OPERATION AND MAINTENANCE MANUALS, PARTS LIST, ELECTRICAL DRAWING) AND FACTORY TEST REPORT
FULL ROOF ENCLOSURE SPLASH GUARD
DOOR INTERLOCK
SAFETY SWITCH
PROGRAM PROTECT
