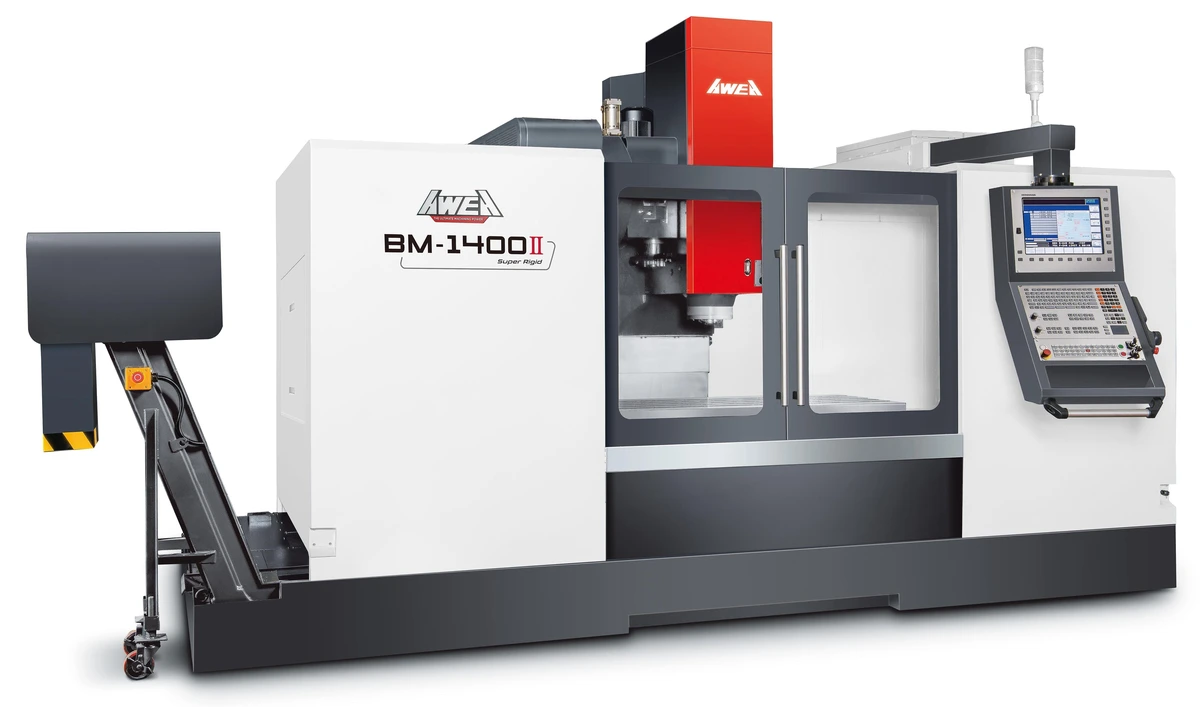

New AWEA BM-1400II | C-Frame Vertical Milling Center

1.888.565.8807
sales@megatelcnc.com
ConditionNew

Document (1)

BM-II-202307-EN.pdf

Overview

Type:
C-Frame Vertical Milling Center
Manufacturer:
AWEA
Model:
BM-1400II
Condition:
Build To Order
Status:
For Sale

Description

Discover precision with the new AWEA BM-1400II C-Frame Vertical Milling Center – top-tier manufacturing for your sophisticated machining needs.

X-Axis Travel1,400 mm55.118"
Y-Axis Travel650 mm25.591"
Z-Axis Travel610 mm24.016"
Table Size-X1,500 mm59.055"
Table Size-Y650 mm25.591"
Table Load Capacity1,400 kg3,086.5 lb
Spindle Center to Column710 mm27.953"
Max Spindle Nose to Table735 mm28.937"
Spindle Speed10,000 RPM10,000 RPM
Optional Spindles Speed6,000 | 8,000 | 12,000 | 15,000 RPM6,000 | 8,000 | 12,000 | 15,000 RPM
Spindle TaperCAT40CAT40
Optional Spindle TaperCAT50CAT50
ATC2424
Optional ATC30 | 40 | 6030 | 40 | 60
CN ControlFanuc | Mitsubishi | Heidenhain | FagorFanuc | Mitsubishi | Heidenhain | Fagor
# Axis33

Document (1)

BM-II-202307-EN.pdf

Overview

Type:
C-Frame Vertical Milling Center
Manufacturer:
AWEA
Model:
BM-1400II
Condition:
Build To Order
Status:
For Sale

Description

Discover precision with the new AWEA BM-1400II C-Frame Vertical Milling Center – top-tier manufacturing for your sophisticated machining needs.

Specifications

Metric

X-Axis Travel55.118"
Y-Axis Travel25.591"
Z-Axis Travel24.016"
Table Size-X59.055"
Table Size-Y25.591"
Table Load Capacity3,086.5 lb
Spindle Center to Column27.953"
Max Spindle Nose to Table28.937"
Spindle Speed10,000 RPM
Optional Spindles Speed6,000 | 8,000 | 12,000 | 15,000 RPM
Spindle TaperCAT40
Optional Spindle TaperCAT50
ATC24
Optional ATC30 | 40 | 60
CN ControlFanuc | Mitsubishi | Heidenhain | Fagor
# Axis3
