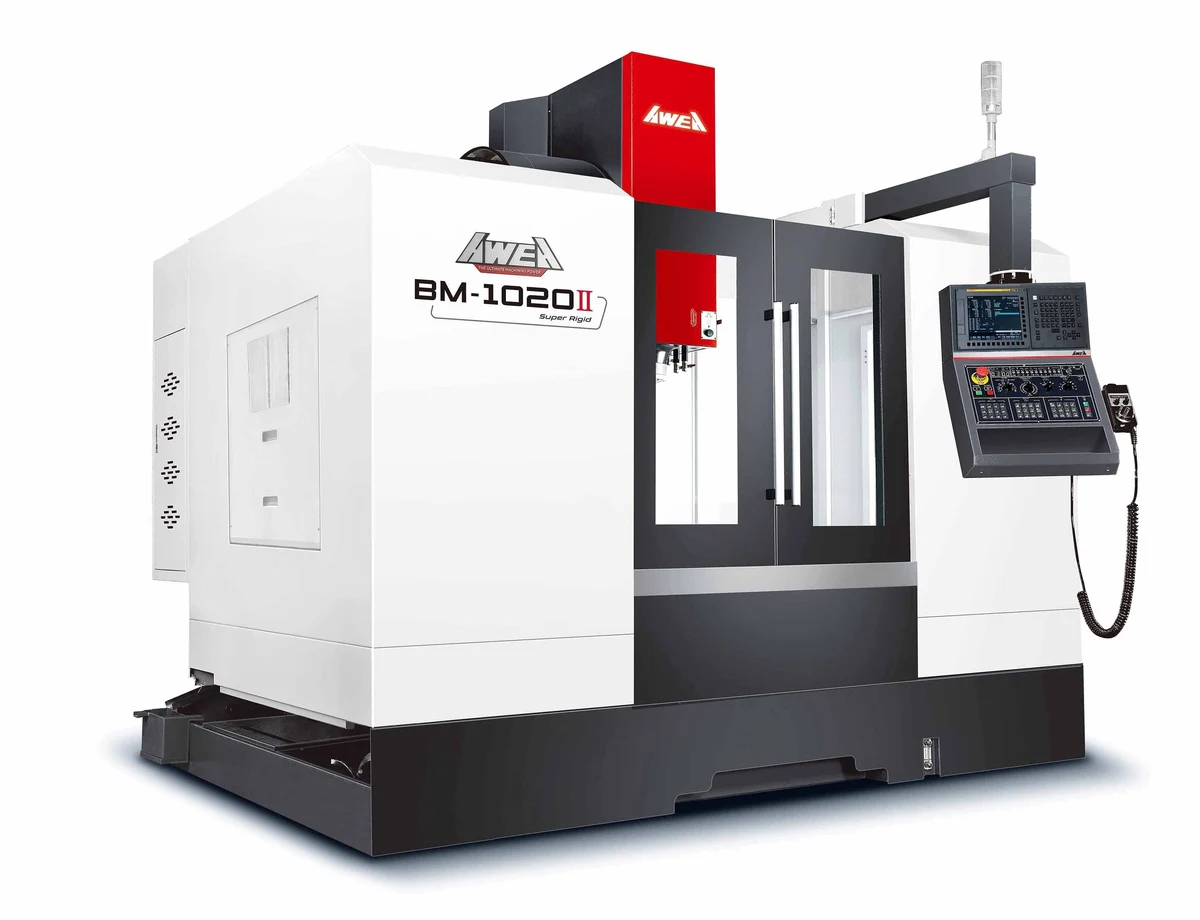

The AWEA BM-II Series is a lineup of box way vertical machining centers designed for heavy-duty cutting and long-term precision in demanding industries like aerospace, automotive, mold & die, and general machining. With X-axis travels from 850 mm to 2,500 mm, these machines cover everything from precision components to large-scale parts. Engineered with a super rigid structure, precision hand scraping, and FEM-optimized design, the BM-II Series ensures excellent vibration resistance and minimal thermal distortion during aggressive cuts.
Each machine is equipped with AWEA’s in-house built gear spindle, delivering high torque via a robust 2-step gearbox—ideal for machining hard materials with confidence. The series supports modular spindle configurations, adaptable for various cutting needs, and integrates FANUC αi servo motors for fast, high-precision axis movement. With a reinforced double-ribbed table, 24-tool arm-type ATC, and automatic lubrication system, the BM-II Series is built for productivity, accuracy, and long-term reliability—all at a highly competitive price point.
Key Features:
• Box way construction on X/Y/Z axes for ultra-rigid heavy-duty cutting
• In-house built 2-step gear spindle for maximum torque and performance
• X-axis travel range: 850 mm – 2,500 mm; Y-axis: 650 mm – 1,000 mm; Z-axis: 610 mm – 1,000 mm
• FEM-optimized structure with Bessel point Y-axis support for reduced deflection
• Dual-nut ball screws and FANUC direct-drive servo motors for high-speed precision
• Optional modular spindle types to suit different applications
• Double-ribbed reinforced working table for high-load stability
• Integrated automatic lubrication system for minimal maintenance
FANUC 0I-MF PLUS WITH 10.4” LCD SCREEN
AICCII (200 BLOCK LOOK-AHEAD) + 2GB DATA SERVER
GEAR SPINDLE MOTOR UPGRADED TO α15 MOTOR
6,000 RPM GEAR SPINDLE, CAT50 BIG PLUS
UPGRADED TO 30 TOOLS ATC MAGAZINE
70 BAR COOLANT THROUGH SPINDLE, ALLCOOL R1000, WITH CTS TANK, MANUAL PRESSURE ADJ., DUAL FILTERS (WITHOUT SUB TANK)
AIR THROUGH SPINDLE
ELECTRICAL CABINET HEAT EXCHANGER
SCREW TYPE CHIP AUGER
SPINDLE COOLING SYSTEM
FULL ROOF ENCLOSED SPLASH GUARD
CENTRALIZED AUTOMATIC LUBRICATE
SPINDLE AIR CURTAIN
OIL LUBRICANT SEPARATOR
AUTOMATIC POWER-OFF SYSTEM
AIR TANK FOR TOOL MAGAZINE
CHIP WASH DOWN COOLANT
CATERPILLAR TYPE CHIP CONVEYOR
CHIP BUCKET
OIL MIST COLLECTOR (KUBE 400 OR COMPATIBLE)
AUTO DOOR ON OPERATOR DOOR WITH OPEN/CLOSE DOORS BUTTON
GLASS PROTECTED FRONT WINDOW
