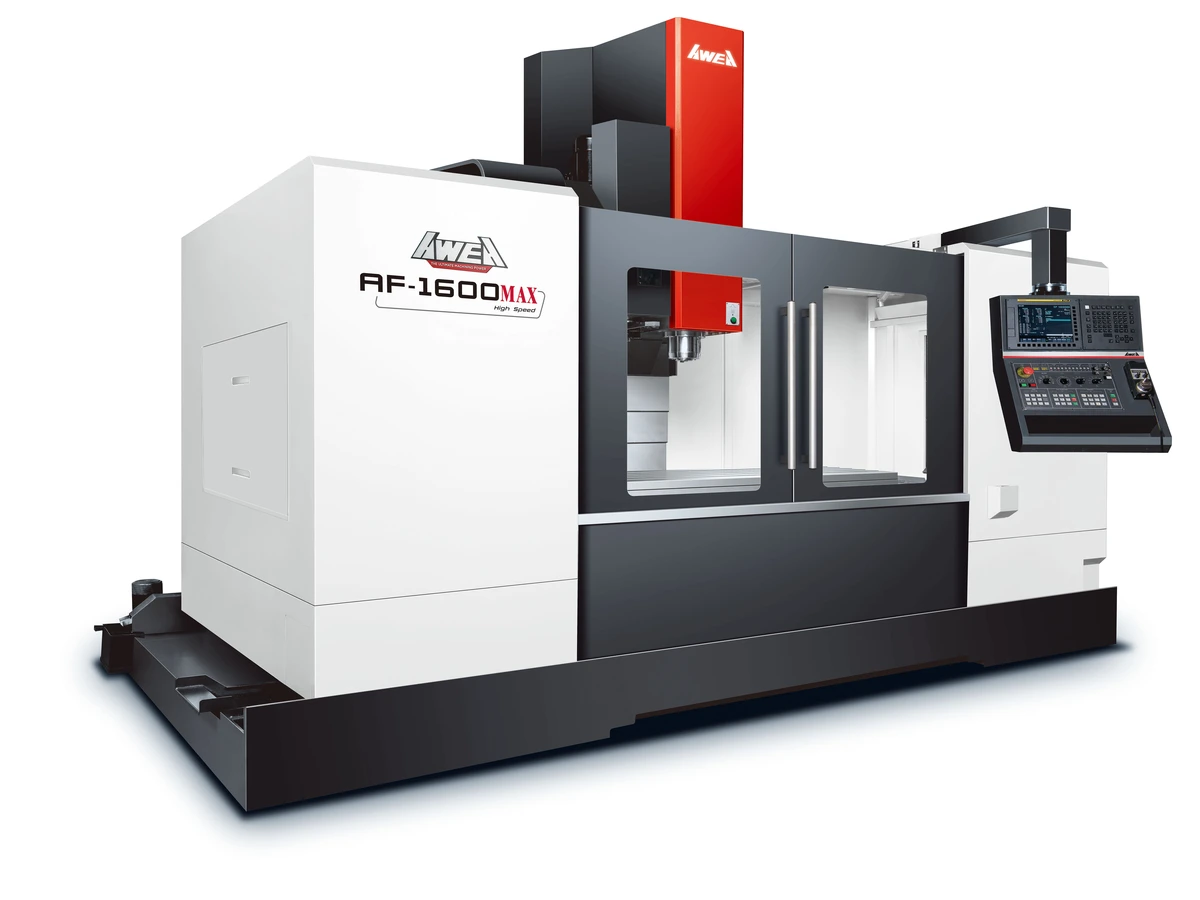

HIGH PERFORMANCE VERTICAL MACHINING CENTER
Introducing AWEA with mature manufacturing abilities and advanced technology skills, the AF-II series. They are based on high rigidity structure and three axes high precision linear guide way design with fast arm type ATC and chip conveying system. It is to provide you with fast, strong, stable machining performance. AF-II series are broadly used in high precision machine parts manufacturers, which can easily meet your demands of today and tomorrow.
Based on AWEA's innovative technology, the AF-II series is specialized on high precision parts and mold machining industry. It can fully present high precision and high efficiency machining ability with very reasonable cost.
Combining strong machining capability and superior quality, the AF-II series fulfills various machining requirements along with stable accuracy and long-lasting durability.
-X-axis travel 650 mm ~ 1,800 mm, Y / Z axes travel 510 mm ~ 800 mm.
- High precision linear guide way design is used on three axes to provide the optimum control and efficient movement. Also, base on the actual machining application, customers can either select roller type or ball type linear guide way.
-Rotary operation panel and large width of protection door provide convenient operation display and spacious space for loading and unloading parts.
High Rigidity Structure
-The contact surface of the column and bed are all hand scraped to ensure precision assembly, strong structure and loading balance.
-△ (Delta) Wide span column structure provides optimal machining rigidity. The headstock retains stability and accuracy even under high-speed traveling.
-One-piece ball screw driving motor support and bearing support enable cutting force to spread evenly into casting body, so it efficiently enhances axial system of entire rigidity and prevents deformation of ball screw.
-High rigidity roller type linear guide way which combines heavy cutting ability from ground box way and fast movement with low abrasion ability from linear guide way completely improves rigidity and control of machine
-High precision dual-nuts ball screw provides excellent heavy cutting rigidity while ensuring machining accuracy and extend durability of ball screw.
-Three axial system is adopted with FANUC αi absolute AC servo motor direct drive to provide great thrust and fast acceleration / deceleration movement.
