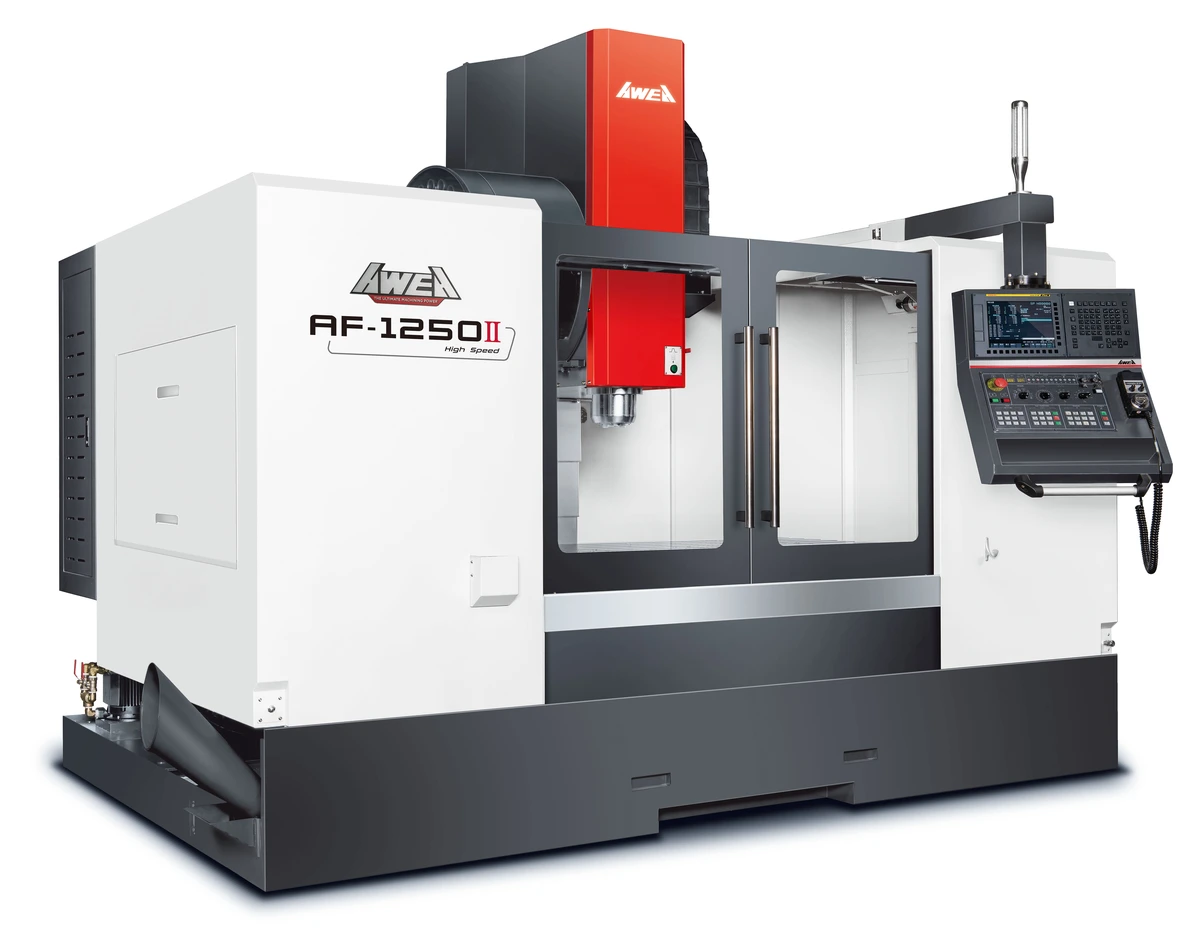

AWEA AF-1250II VERTICAL MILLING CENTER
ConditionNew
New
AWEA AF-1250 – Configurable High-Speed 3-Axis Vertical Machining Center with FANUC 0i-MF Plus
The AWEA AF-1250 is a high-performance 3-axis vertical machining center engineered for precision, power, and versatility. Built for manufacturers seeking reliable, rigid, and adaptable solutions, the AF-1250 offers configurable travels up to 1250 mm (X), 650 mm (Y), and 610 mm (Z), making it an ideal fit for industries such as aerospace, automotive, energy, and mold & die applications.
This machine features the advanced FANUC 0i-MF Plus control with a 10.4” LCD screen, Manual Guide i conversational programming, 400-block AICCII look-ahead, and 2GB parts program storage, supporting up to 1,000 registerable programs—perfect for complex jobs and high-mix production environments. AWEA’s I-Console software ensures seamless operation, while high-speed rigid tapping, smooth tolerance control, and jerk control deliver precision at every stage.
The AF-1250 supports a range of spindle configurations to suit different applications. Choose from:
• Direct-drive spindles: BT40 (12,000 / 15,000 RPM), BT50 (10,000 RPM)
• Gear-type spindles: BT40 (8,000 RPM), BT50 (6,000 RPM), Z-axis with box ways
Tool changer options include a high-speed arm-type magazine with 30, 40, or 60-tool capacity, and a high-speed tool change system with tool-to-tool time as fast as 1.6 seconds. The robust design is enhanced with hand-scraped guideways, a cross roller system, and BESSEL POINTS saddle support, ensuring maximum rigidity and surface quality during aggressive cutting.
The machine is equipped with a CAT40 Big-Plus taper (BT40 or BT50 optional), and offers full CTS capability (300–1000 PSI), a spindle oil chiller, spindle thermal compensation, and optional X/Y/Z linear scales for micron-level repeatability. Additional automation and convenience features include a 4th axis interface, CNC rotary table, chip washdown coolant, caterpillar or scraper-type chip conveyors, and a centralized automatic lubrication system.
FANUC 0I-MF PLUS WITH 10.4” LCD SCREEN
FANUC AICCII (400 BLOCKS LOOK AHEAD) + 2GB DATA CENTER
FANUC MANUAL GUIDE I CONVERSATIONAL PROGRAMMING
AWEA I-CONSOLE SOFTWARE
HIGH SPEED RIGID TAPPING
PARTS PROGRAM STORAGE SIZE UPGRADE 2MB
UPGRADE NUMBER OF REGISTERABLE PROGRAMS TO 1000
JERK CONTROL
SMOOTH TOLERANCE CONTROL
4TH AXIS INTERFACE
SPINDLE MOTOR (CONT./30MIN/PEAK) 20/25/40HP
UPGRADED TO 15,000 RPM DIRECT DRIVEN SPINDLE, CAT40 BIG PLUS
UPGRADED TO 40 TOOLS ATC MAGAZINE
UPGRADE CROSS ROLLER GUIDE WAY
300 PSI HIGH PRESSURE COOLANT THROUGH SPINDLE UNIT
COOLANT THRU SPINDLE PREP W/UNION ( READE FOR 1,000 PSI)
SPINDLE OIL CHILLER
CATERPILLAR TYPE CHIP CONVEYOR
COOLANT AND AIR GUN
AIR BUFFER TANK FOR TOOL CHANGE
DOOR INTERLOCK
HIGH SPEED TOOL CHANGE SYSTEM (T-T 1.6 SEC)
PROGRAMMABLE CUTTING AIR BLOW
COOLANT FLOOD WASH DOWN SYSTEM
CENTRALIZED AUTOMATIC LUBRICATION SYSTEM
REMOTE MANUAL PULSE GENERATOR (MPG)
ETHERNET & RS-232C INTERFACE
ELECTRICAL CABINET HEAT EXCHANGER
TOOLBOX
LEVELING BOLTS & PADS
FULL ROOF ENCLOSED SPLASH GUARD
SAFETY SWITCH & PROGRAM PROTECT
WORK LIGHT WITH ADDITIONAL FLUORESCENT LAMPS 3-COLOR TOWER LIGHT
OPERATION AND MAINTENANCE MANUALS, PARTS LIST, ELECTRICAL DRAWING AND FACTORY TEST REPORT
