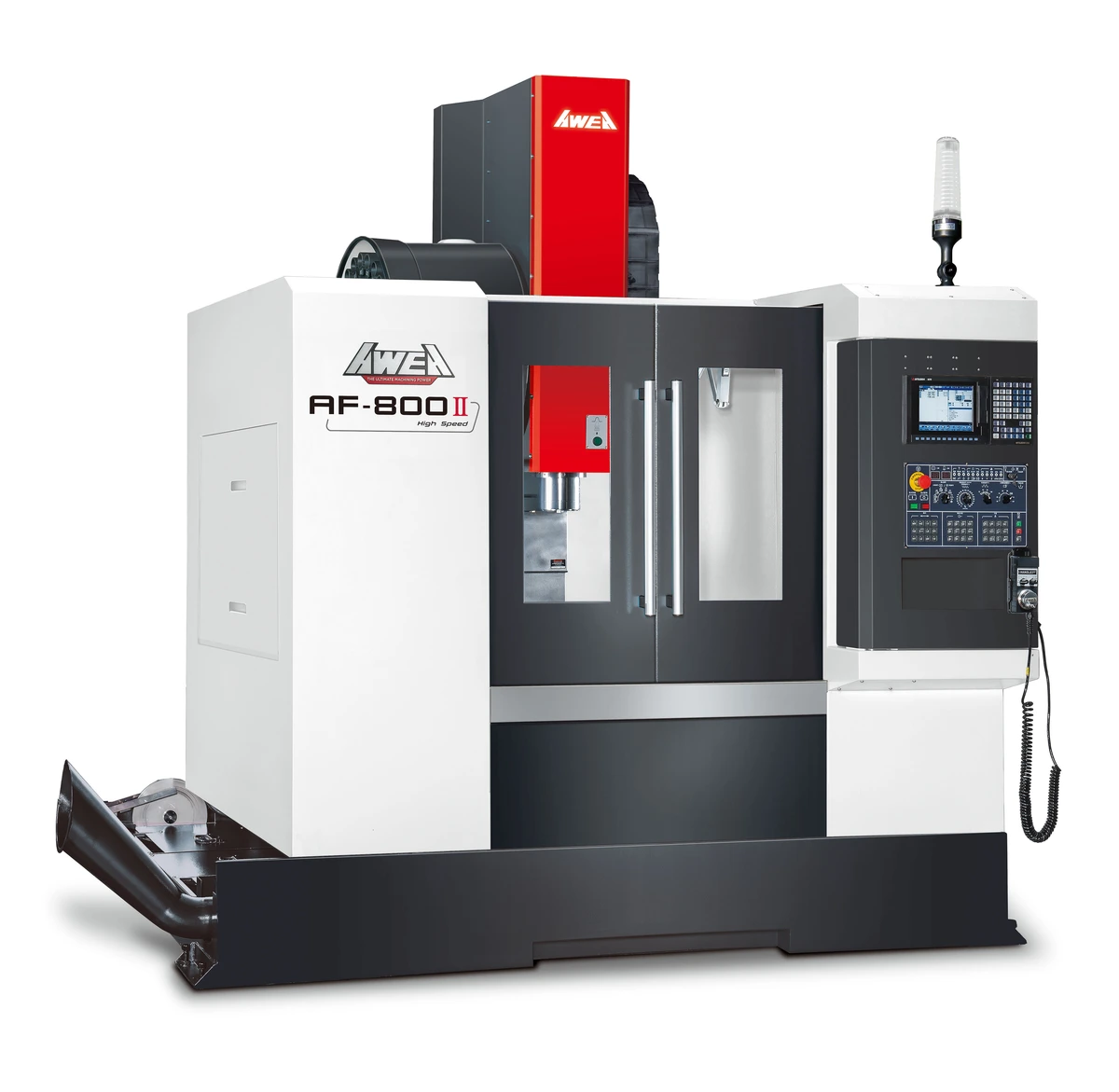

AWEA AF-800II VERTICAL MACHINING CENTER
ConditionNew
New
Introducing the AWEA AF-II series, engineered with mature manufacturing abilities and advanced technology skills for exceptional machining performance.
Key Features:
• High rigidity structure and three axes high precision linear guide way design
• Fast arm type ATC and chip conveying system for efficient operation
• Broadly used in high precision machine parts manufacturing, meeting current and future demands
• Three axes equipped with high precision linear guide way design for optimal control and efficient movement, with options for roller or ball type guide way
• Rotary operation panel and large width protection door for convenient operation and spacious loading/unloading
• Independent coolant tank system for easy maintenance, with a high-pressure coolant pump for efficient cooling capabilities.
FANUC 0i-MF PLUS WITH 10.4" LCD SCREEN
12,000 RPM DIRECT DRIVEN SPINDLE, CAT40 DUAL CONTACT
SPINDLE MOTOR α12 MOTOR
30 TOOLS ATC MAGAZINE
ROLLER LINEAR GUIDEWAY
4TH AXIS INTERFACE, PNEUMATIC, HOSE AND WIRING PREPARATION ONLY
CHIP BUCKET
SCREW TYPE CHIP AUGER
SPINDLE COOLING SYSTEM
ROOF ENCLOSURE SPLASH GUARD
CENTRALIZED AUTOMATIC LUBRICATING
SPINDLE AIR CURTAIN
OIL LUBRICANT SEPARATOR
AUTOMATIC POWER-OFF SYSTEM
GLASS PROTECTED FRONT WINDOW
AIR TANK FOR TOOL MAGAZINE
ADD TWO FLUORESCENT LIGHTS
Introducing the AWEA AF-II series, engineered with mature manufacturing abilities and advanced technology skills for exceptional machining performance.
Key Features:
• High rigidity structure and three axes high precision linear guide way design
• Fast arm type ATC and chip conveying system for efficient operation
• Broadly used in high precision machine parts manufacturing, meeting current and future demands
• Three axes equipped with high precision linear guide way design for optimal control and efficient movement, with options for roller or ball type guide way
• Rotary operation panel and large width protection door for convenient operation and spacious loading/unloading
• Independent coolant tank system for easy maintenance, with a high-pressure coolant pump for efficient cooling capabilities.
Metric
| X-Axis Travel | 800 mm |
| Y-Axis Travel | 510 mm |
| Z-Axis Travel | 510 mm |
| Table Size-X | 860 mm |
| Table Size-Y | 510 mm |
| Table Load Capacity | 500 kg |
| Spindle Center to Column | 552 mm |
| Max Spindle Nose to Table | 610 mm |
| Spindle Speed | 12,000 RPM |
| Spindle Taper | CAT40 |
| X/Y Axis Rapid Feed Rate | 48 m/min. |
| Z-Axis Rapid Feed Rate | 32 m/min. |
| ATC | 30 |
| Max. Tool Length | 250 mm |
| Max. Tool Weight | 7 kg |
| CN Control | FANUC 0i-MF PLUS |
| # Axis | 3 |
FANUC 0i-MF PLUS WITH 10.4" LCD SCREEN
12,000 RPM DIRECT DRIVEN SPINDLE, CAT40 DUAL CONTACT
SPINDLE MOTOR α12 MOTOR
30 TOOLS ATC MAGAZINE
ROLLER LINEAR GUIDEWAY
4TH AXIS INTERFACE, PNEUMATIC, HOSE AND WIRING PREPARATION ONLY
CHIP BUCKET
SCREW TYPE CHIP AUGER
SPINDLE COOLING SYSTEM
ROOF ENCLOSURE SPLASH GUARD
CENTRALIZED AUTOMATIC LUBRICATING
SPINDLE AIR CURTAIN
OIL LUBRICANT SEPARATOR
AUTOMATIC POWER-OFF SYSTEM
GLASS PROTECTED FRONT WINDOW
AIR TANK FOR TOOL MAGAZINE
ADD TWO FLUORESCENT LIGHTS
