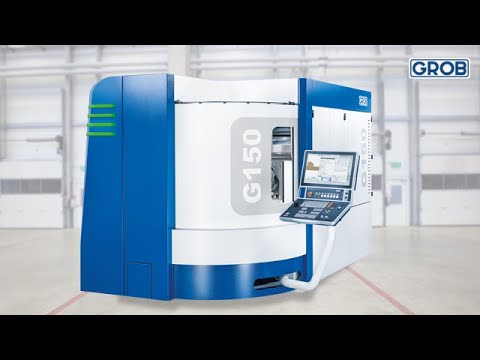

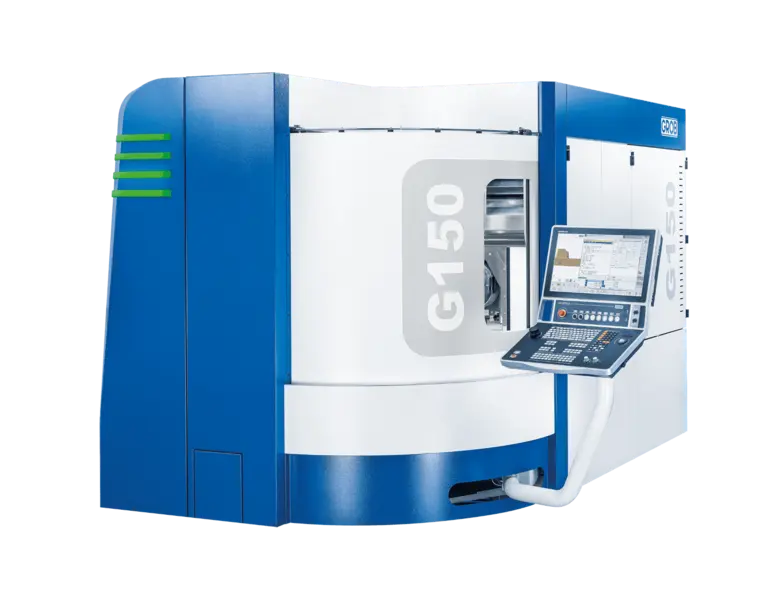

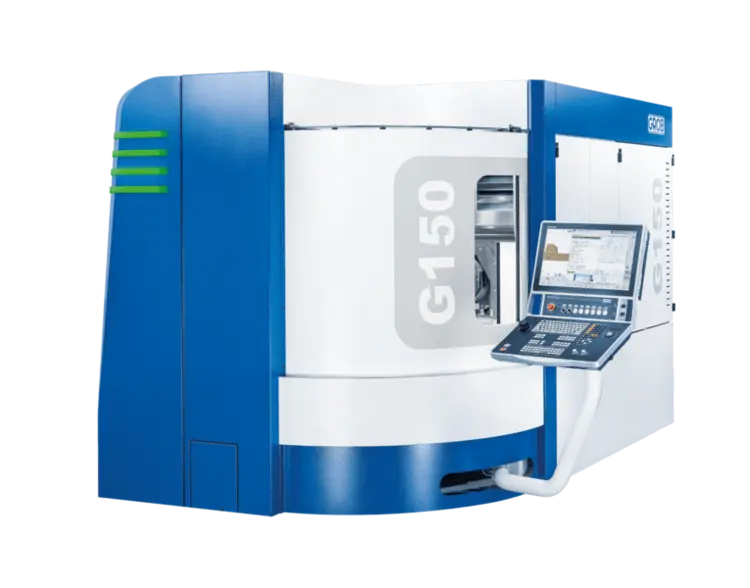

New GROB G150 | 5-Axis Horizontal Machining Center

1.888.565.8807
sales@megatelcnc.com
ConditionNew

Document (1)

GROB_G Series_Brochure_2023_compressed.pdf

Overview

Type:
5-Axis Horizontal Machining Center
Manufacturer:
GROB
Model:
G150
Condition:
Build To Order
Status:
For Sale

Description

The G150 is the smallest universal machining center in the unique G-module concept of GROB and enables customers from various industries to machine with the highest precision.

With direct and absolute position encoders in all axes, the 5-axis machining center guarantees maximum accuracy for complex components and convinces with an innovative calibration and cooling concept.

X-axis travel17.717"450 mm
Y-Axis travel26.378"670 mm
Z-Axis travel26.181"665 mm
Table Size Diameter14.961"380 mm
Table Load Capacity551.2 lb250 kg
A-Axis Swivel-185/+45-185/+45
B/C-Axis Rotation360°360°
Spindle Speed12,000 RPM12,000 RPM
Spindle TaperHSK-A63HSK-A63
Tool Magazine Capacity5050
CN ControlHEIDENHAIN /SIEMENSHEIDENHAIN /SIEMENS

Optional Spindles Speed: 16,000 | 21,000 | 30,000 RPM
Optional taper: 42
